Junction Box PLUS - 60mm - Set

Description

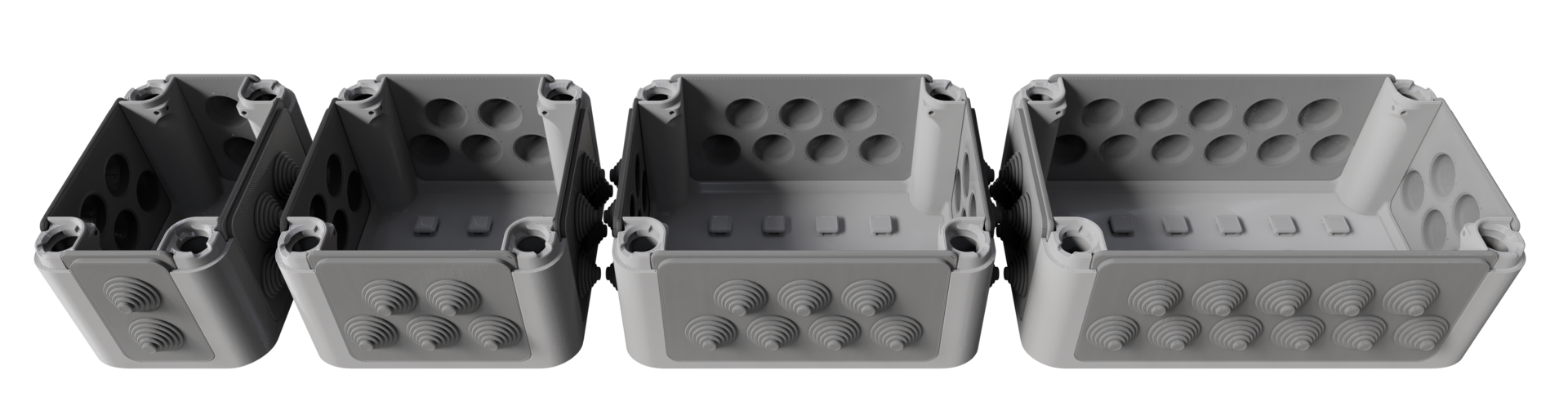

Junction Box PLUS - 60mm - Set

A modular junction box set made for your next project. After months of development in close cooperation with certifiers and professionals from the industry, we are proud to finally release these beauties.

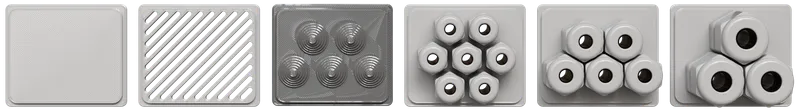

Windows

Maximum compatibility with interchangeable windows. From flexible glands to cooling vents, you can quickly swap to windows which suit your project best.

Righty tighty, lefty loosey!

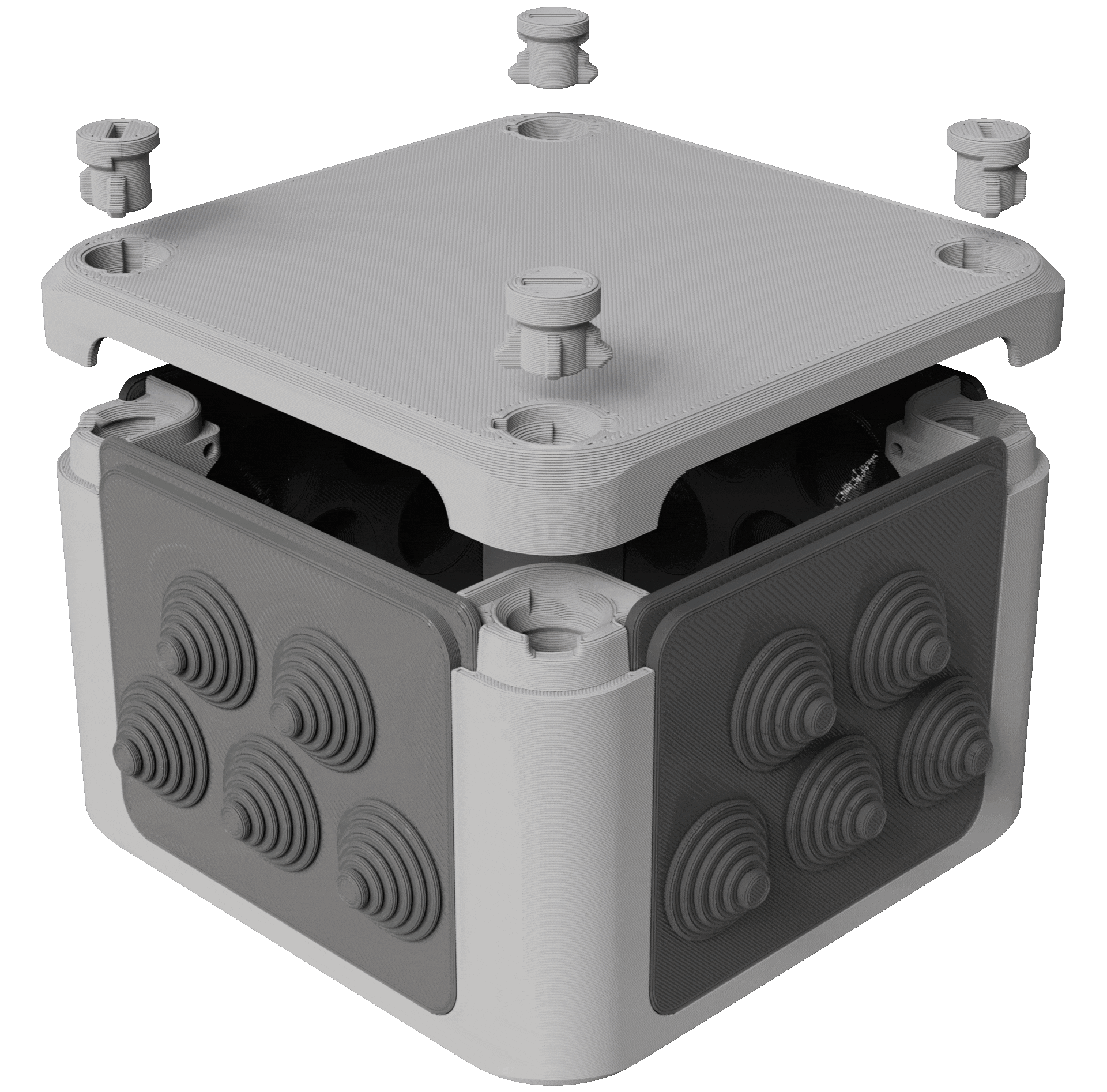

Secure close with special screws. We designed the lid to tighten firmly, while releasing effortlessly with the help of a nifty bayonet-screw combo.

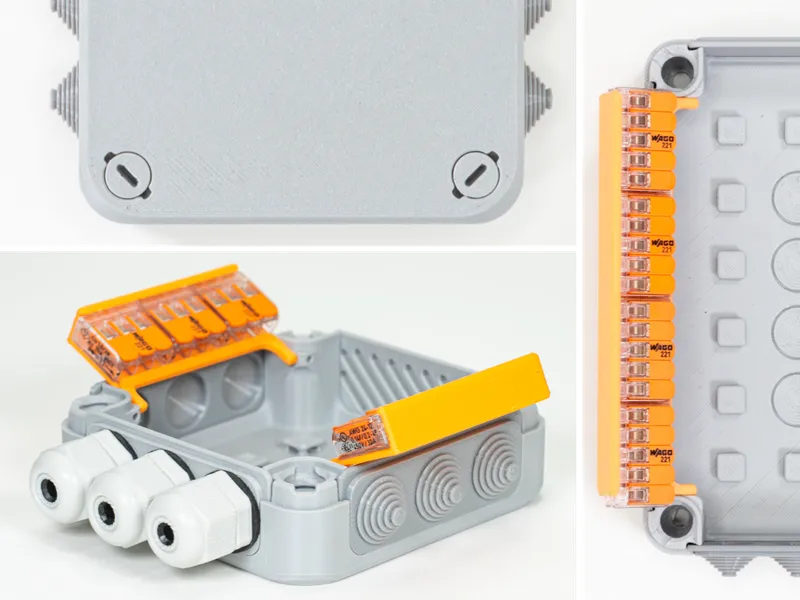

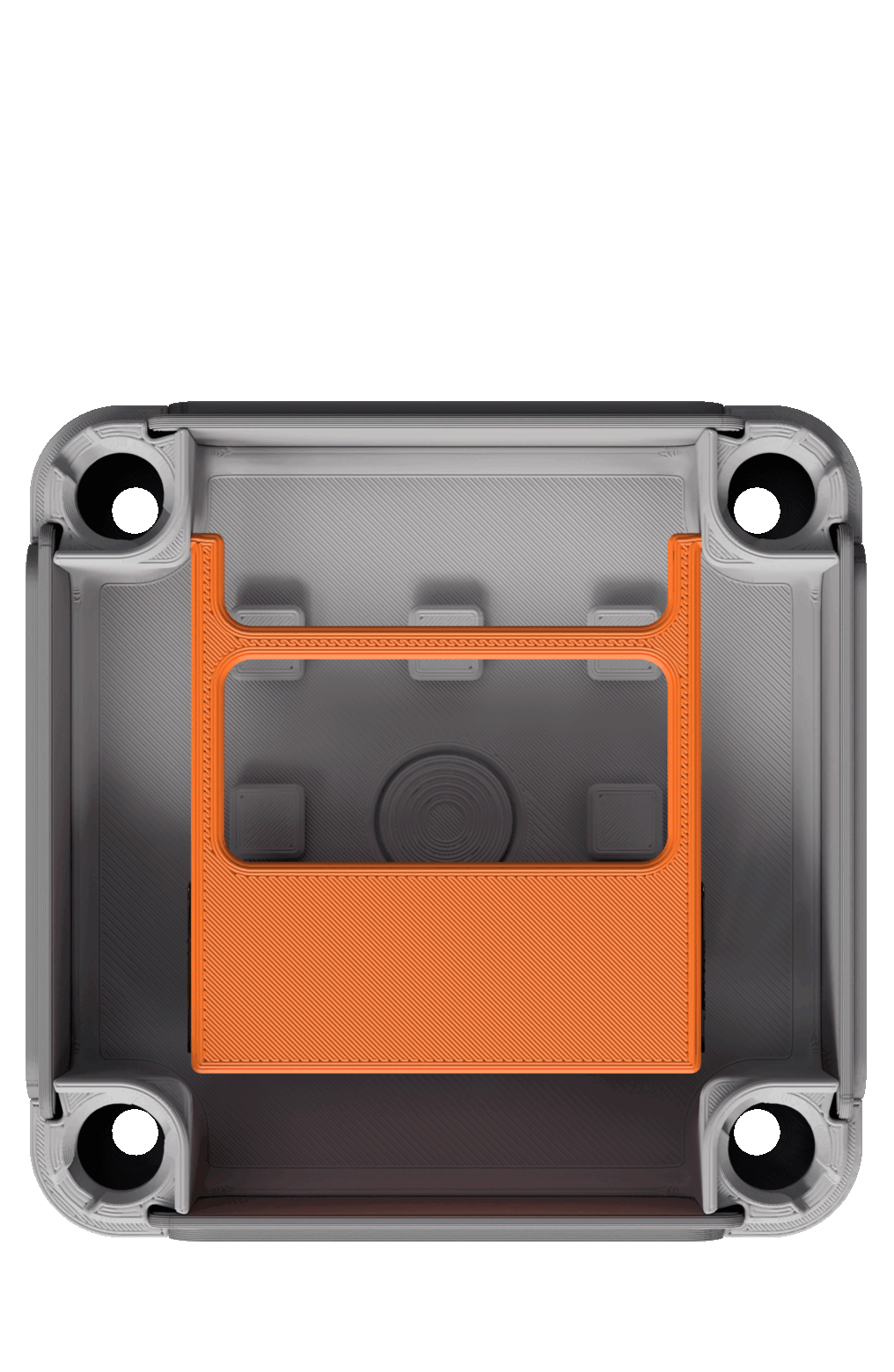

WAGO 221

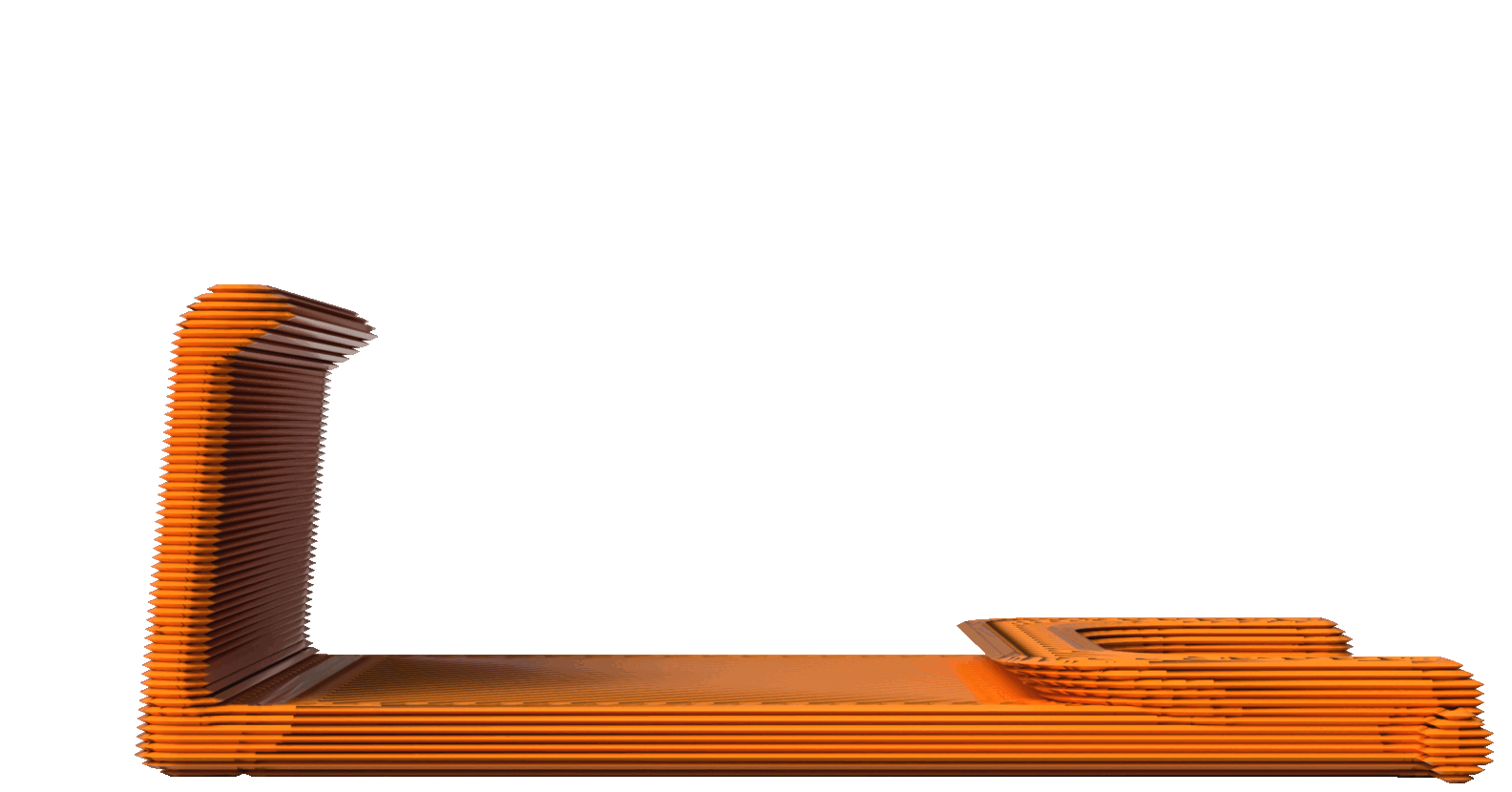

More flexibility! We redesigned the way we hold WAGOs in place. Now you can mix and match different sized ones and use standard 4mm2 or 6mm2 clamps.

Design

Designed after our form-follows-fdm design language, it is made for hustle free and fast 3D-printing. By carefully balancing functionality, printability and aesthetics, we can ensure a great experience.

Material

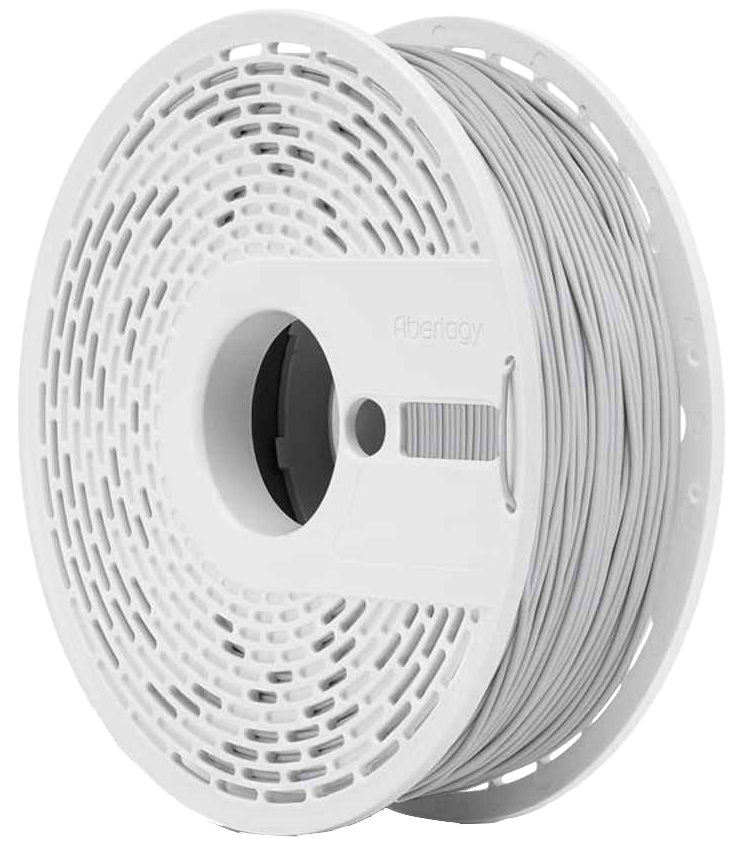

UL Certified Material with fire-extinguishing properties? Fiberlogy PETG V0 or Prusament PETG V0 is the perfect choice for our junction box.

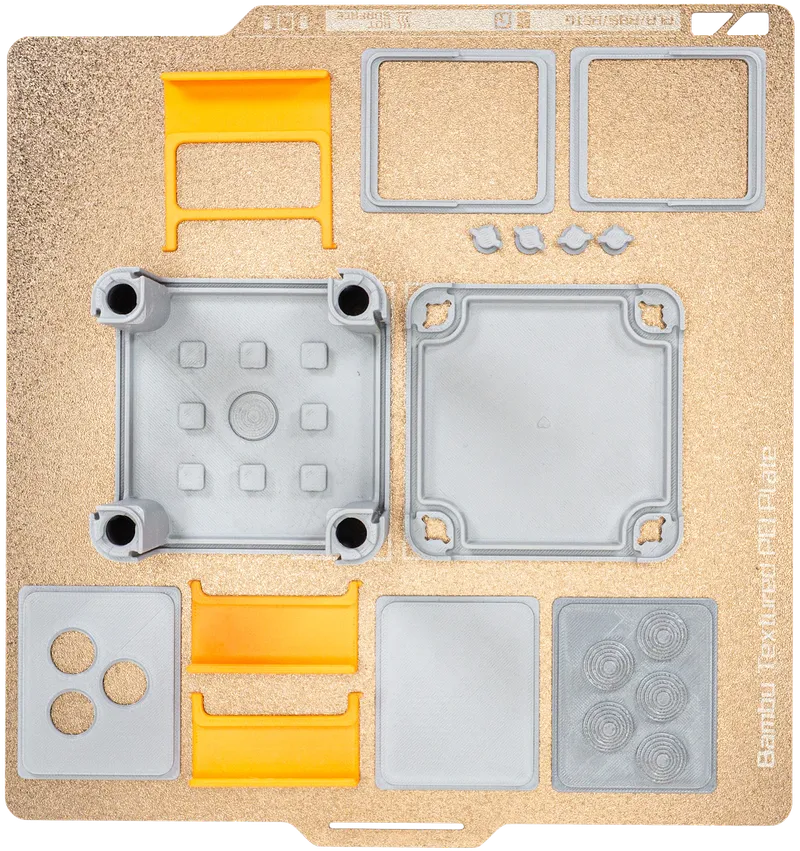

Printing

Just print! There is no need for supports or brim of any kind, but we recommend 100% infill density to cut out any variables. It prints beautifully in PLA and flawless in PETG

Dimensions

Compatibility

• WAGO 221 412/413/415
• WAGO 221 612/613/615

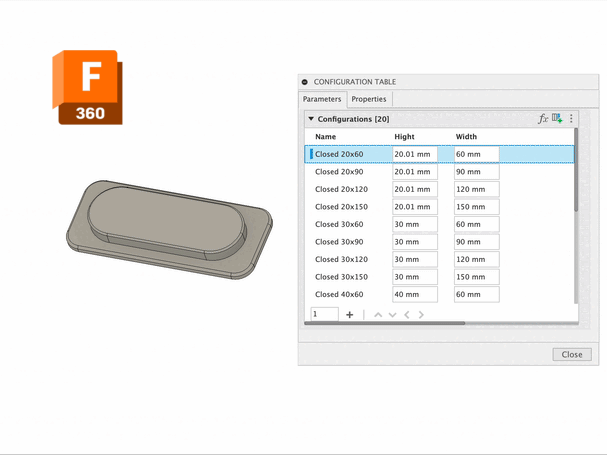

Customise!

Create and share your own Junction Box PLUS - Custom Windows. These come with STEP files and a configured Fusion 360 design.

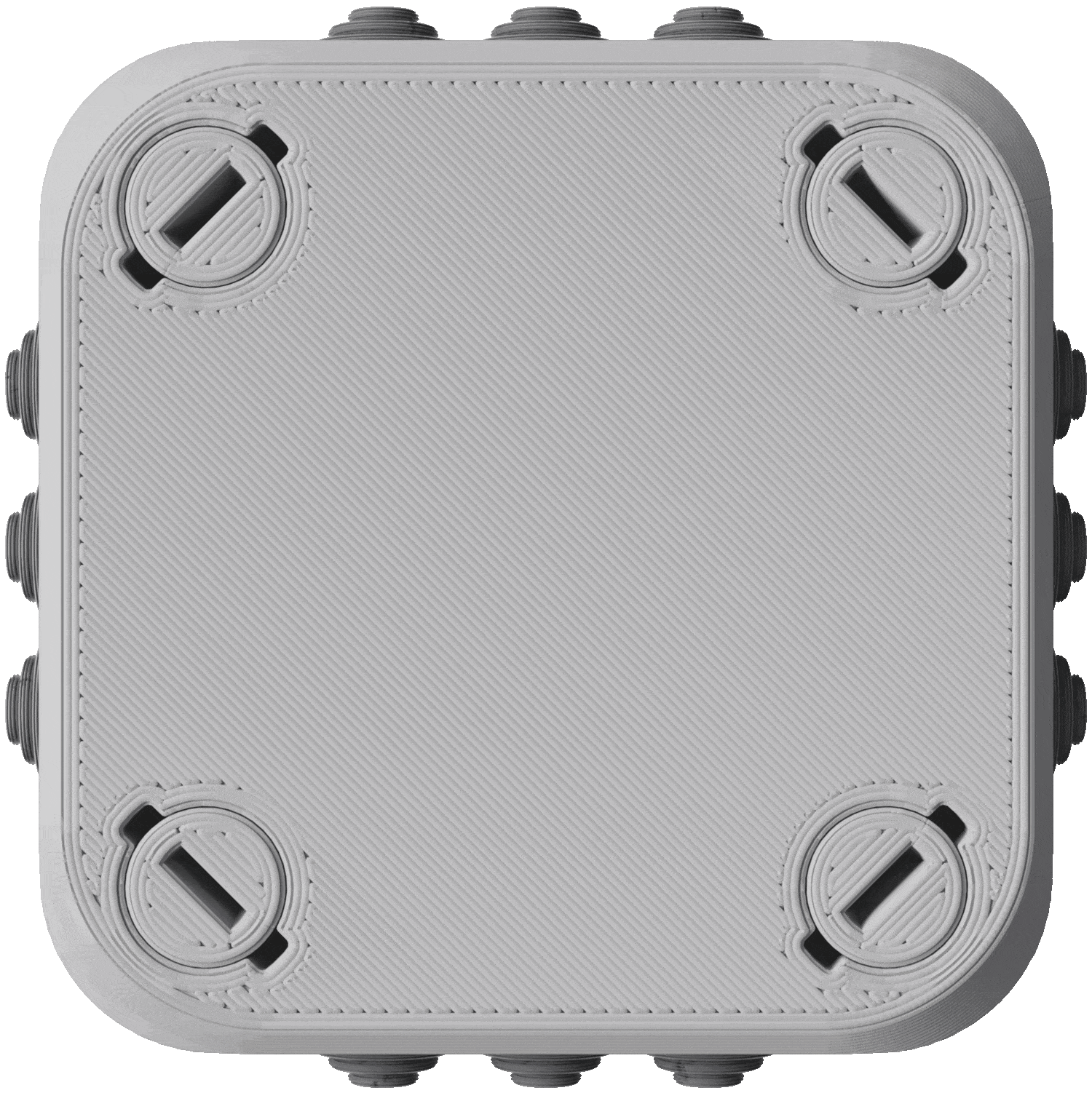

Free stuff?

Yes! We made a mini version exclusively available on Makerworld for free.

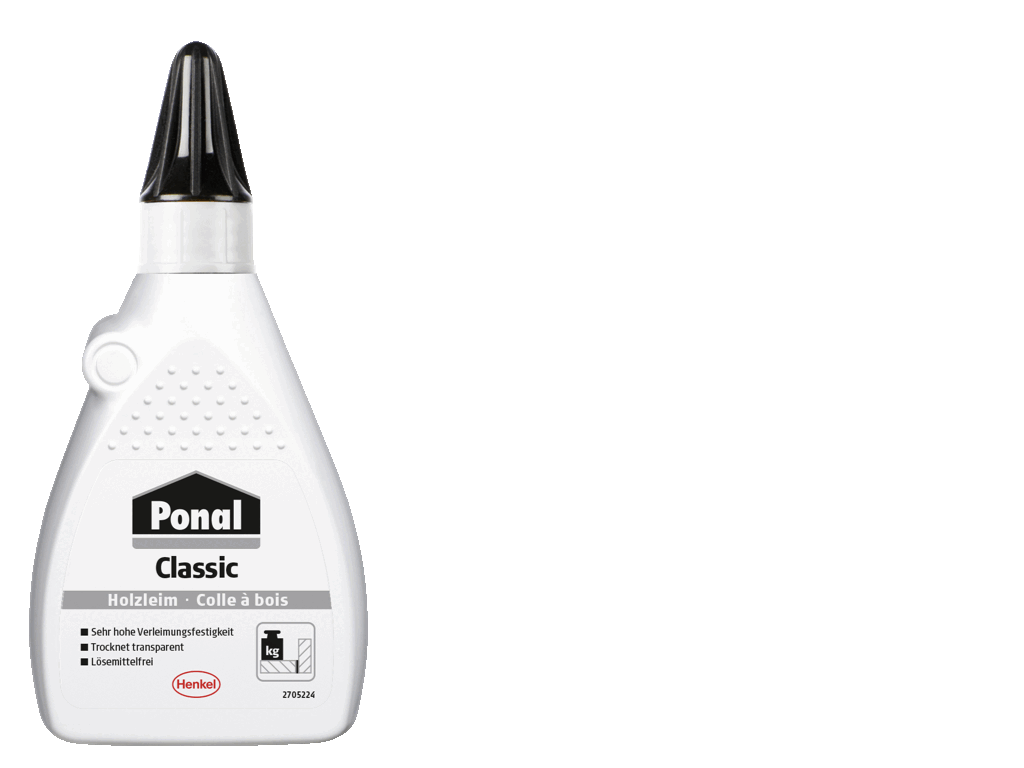

Tip of the print!

The probably bestest and cheapest bed adhesive! Mix regular (non watertight) wood glue with water in a ratio of about 1:10. From now on clean your bed ONLY with water and NOT isopropyl alcohol. Otherwise it becomes non soluble in water and you will have a tough time getting it off.

⚠ DISCLAIMER ⚠

Depending on the country you live in, this junction box might not full fill the regulatory requirements to be permitted for usage above 120V. We are currently actively working on certifying this set in the EU and have designed it to the DIN 60670 standard. Testing will progress later this year.

For updates follow us on  Instagram ;)
