COREBOXX Heated Semi-smart add-on

The COREBOXX Semi-Smart is an advanced electronic upgrade for your filament storage system, enhancing usability, safety, and functionality. This modular system integrates precise filament chamber heating, real-time monitoring, and quick control options for an improved 3D printing workflow.

Key Features:

• ✅ Safe Filament Heating – 200W PTC heater with targeted temperature and humidity control (max 50°C)
• ✅ OLED Display – Shows current/set temperature, humidity, and custom messages like layer numbers
• ✅ RGB LED Control – Customized, gcode controlled lighting for your setup

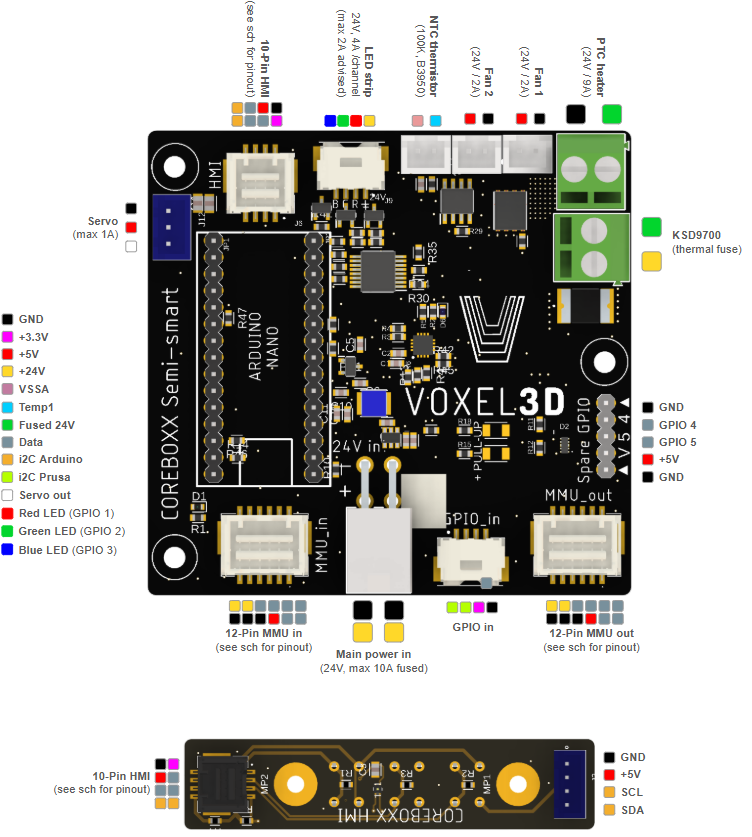

• ✅ Enhanced Connectivity – 3 spare Prusa GPIO pins and an MMU easy-disconnect port
• ✅ User-Friendly Controls – Quick-access buttons for adjustments

Modular Design for Easy Assembly:

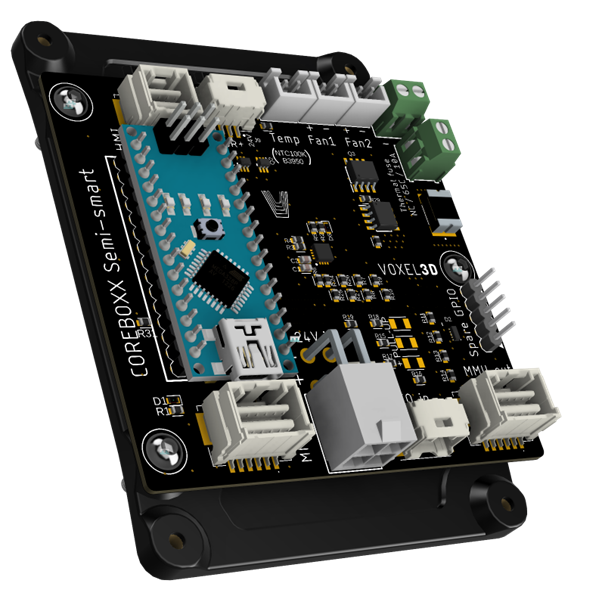

• 🔹 Semi-Smart PCB – The core control board

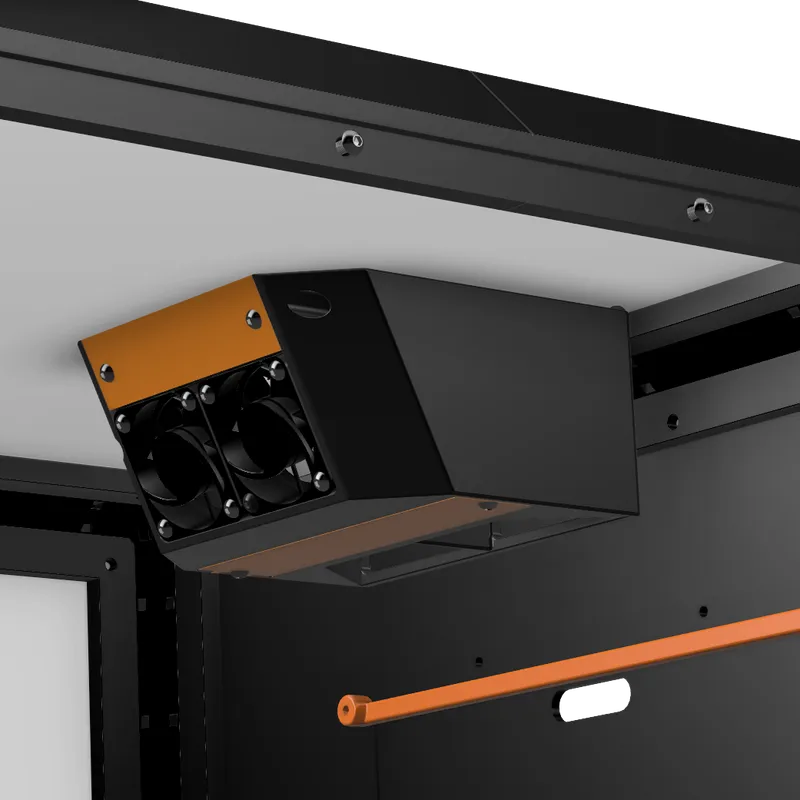

• 🔹Heater Assembly – Efficient heating with safety measures
• 🔹 HMI Module – Interactive display and button interface

Electronics & hardware kit;

Electronics are easy to use and are the way-to-go for a plug-and-play system. However, they are expensive and only cost-effective in larger quantities. Therefore, I worked together with Blurolls store to offer kits worldwide for a price lower than you can source yourself!

Currently, we only sell through the direct store of BLUROLLS, but later we will also stock the kits in the USA and Germany, and sell through AliExpress.

Link to the kit: (€85) Prusa Core One Coreboxx Electronics Semi-smart addon Ecosystem kit

Technical Specifications:

• Power: 250W | Voltage: 24V
• Heating: Max 60°C, integrated safety limits (10A fuse, 65°C thermal fuse)
• PCB Layers: 4 (Main) | 2 (HMI)
• Dimensions:
• Semi-Smart PCB: 71mm × 74mm
• HMI PCB: 16.5mm × 75mm
• Heater Unit: 125mm × 117mm × 59mm

🛠 Comprehensive assembly manual included!
📌 For personal use only – Commercial production, sales, or distribution are not allowed.

Adds electronic functions to your COREBOXX or enclosure
