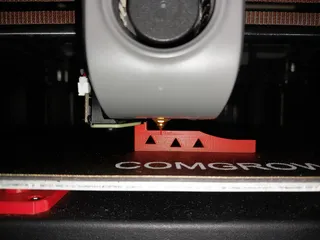

Creality K1 Cartographer Right Angle mount

You can adjust the mounting hole sizes and height of the PCB to tweak as needed with the VarSet variables.

Hardware used.

(2) M3x16MM self tapping screws

(2) M3x8MM self tapping screws

-18.66 mm x offset 0mm y offset   --mount PurcellV5
V4 is updated version to correct x offset

(Previous -16mm offset was wrong)

Simple AF docs can be found here.

https://pellcorp.github.io/creality-wiki/

Check out the model this was remixed from for other mounting options.

https://www.printables.com/model/1071493-cartographer-probe-upgrade-for-creality-k1-series

Open light weight and model simplified for easy changes with FreeCAD.
