CS:GO / CS2 Stiletto Knife Fully Working

Stiletto knife from CS2 / CSGO

Fully functional Stiletto knife

• Open with the press of a button
• Sliding lock sprint for button
• Rotate top to release blade

!IMPORTANT!

The pieces marked red in the picture below and gif NEEDS to be printed in PETG            “Spring” and “Button Function” pieces

!IMPORTANT!

Two different options

• One M3x10MM screw and Glue
• Three M2x12MM Screws and some Glue

Assembly Instructions

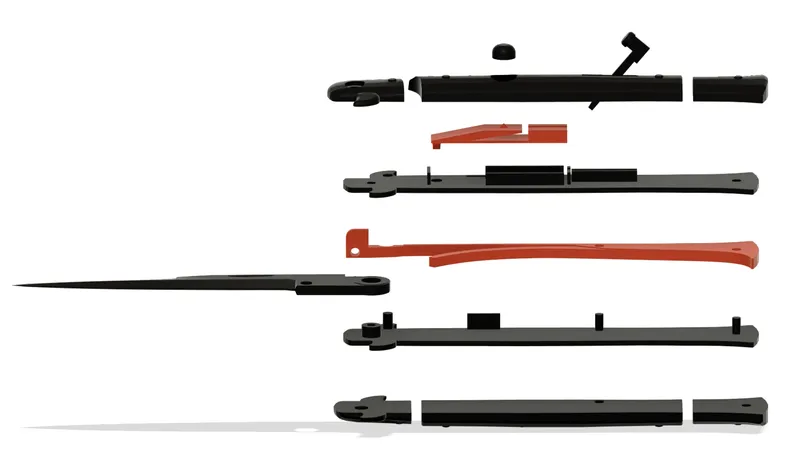

Picture Below and Above for help

• For the three M2x12MM version

Glue the bottom handle parts together, button on button function, then slide the lock sprint into the slot on the handle. Put the rest in place and screw together.

• For the M3x10MM version

Glue Everything except the “Front Top Handle” and “Lock Sprint” piece.

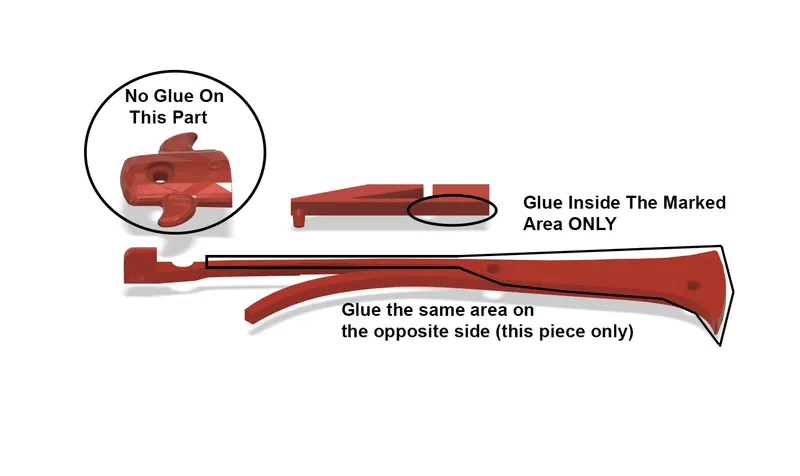

!IMPORTANT! follow the instructions on where to glue on the “Spring” and “Button Function” piece. !IMPORTANT! See pictrue below

Print Instructions

• Nozzle: 0.4mm
• Layer Height: 0.12mm or lower for best quality
• Infill: 20% Atleast
• Material: PETG on “Spring” and “Button Function” the rest if free to use whatever :)
• Support on “Button Function” and “Top Handle”

3d print your own and I would appreciate you uploading your make and rating.

Hope you enjoy the model :)
