R4 Wallet - card lever mechanism MAGSAFE

Overview

This innovative wallet is designed for 3D printing and features a unique lever mechanism that allows effortless card extraction. With the capacity to hold up to four cards and an external cash clip, the design is both functional and visually striking. Multiple modular options enable customization for various use cases.

Key Features

• Card Lever Mechanism:
  Integrated lever system facilitates smooth card withdrawal.
• Multiple Card Slots:
  Securely accommodates up to four cards.
• Cash Clip:
  External clip designed for holding paper money.
• Modular Options:
  • MagSafe Compatibility:
    Optional cutout for MagSafe magnets allows the wallet to attach to a phone. (Alternatively, choose the version without the cutout.)
  • RFID Feature:
    Some versions include a hole in the cover for an RFID chip, ideal for secure office access. (Versions without the RFID window are also available.)
  • Money Clip Variations:
    Options include different designs for the money clip or a completely clip-free version.

Materials & Design Aesthetics

• Screw & Handle Material:
  Although the design specifies M3x1 screws, it is highly recommended to print these, along with the cash handle, using PETG or ABS plastic for enhanced durability.
• Two-Tone Color Scheme:
  The design features a stylish two-colored finish with an integrated ruler at the bottom for added aesthetic appeal.
• Internal Card Clamp Mechanism:
  Incorporates PETG-printed strips that function as a spring to securely hold the cards.
• Wall Generator – Arachne:
  Important: Use the wall generator "Arachne" during printing to ensure optimal wall integrity and overall structural quality.

Optional Handle Variants – ASSET

Multiple variants of the left handle, referred to as ASSET, are available to suit different ergonomic and stylistic preferences:

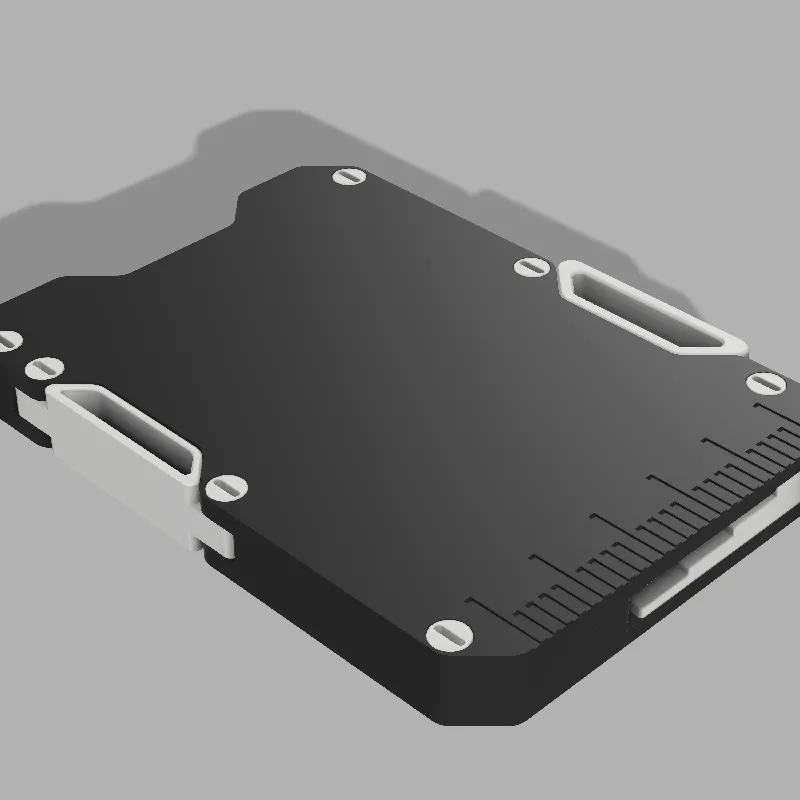

• ASSET-HIGH:
  Designed to match the thickness of the wallet.

• ASSET-THICK:
  Matches the wallet’s thickness while extending wider as a conventional handle, protruding beyond the wallet’s side edges.

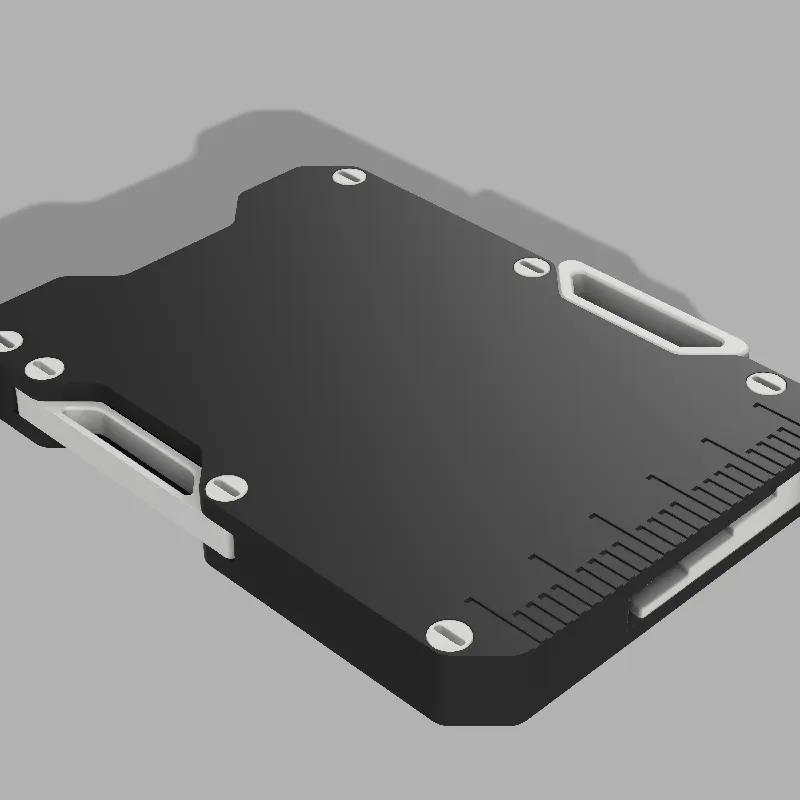

• ASSET-THIN:
  Sized to match the thickness of the cards.

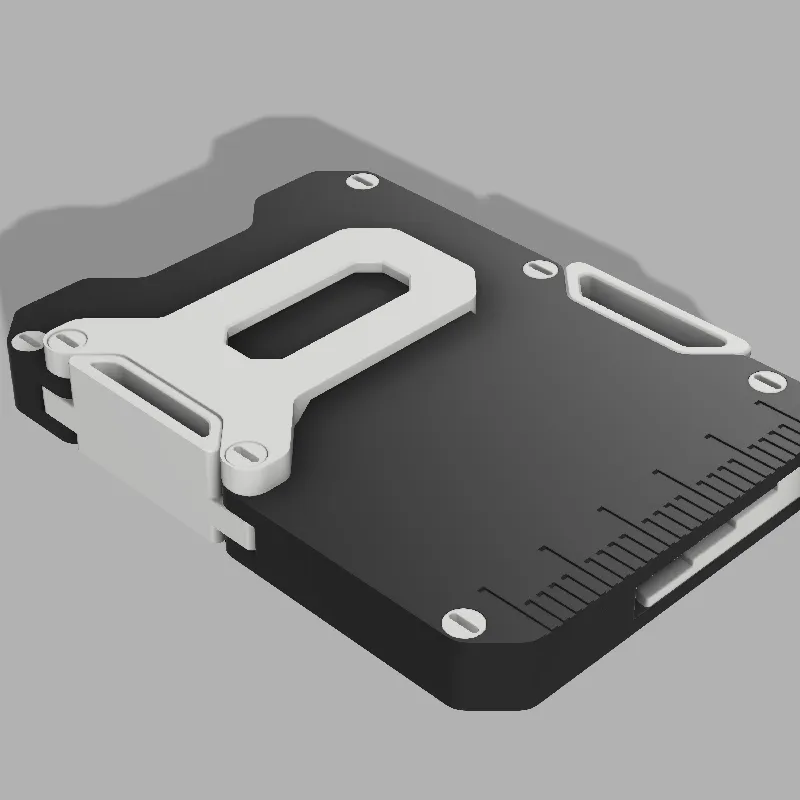

• ASSET-TO-CASH:
  Sized to correspond to the wallet plus a separate cash clip.

• ASSET-W-CASH:
  An integrated version featuring a built-in cash clip.

Each variant is illustrated with a representative photo to provide visual clarity and assist in selecting the ideal option for your needs.

Assembly and print Instructions

*Important, use Arachne wall generator with follows settings:

• Wall transitioning threshold angle: 25*
• Wall transitioning filter margin: 65%
• Minimum wall width: 25%

1. SELECT WHAT EXACT YOU WANT and disable other parts
2. Print the Main Body:
   • Begin by printing the wallet’s housing.
   • Ensure supports are added in the bolt holes for maintaining structural integrity.
   • Important: Print using the wall generator "Arachne" to achieve the best results.
3. Print Additional Components:
   • Once the main body is complete, print all supplementary parts such as the card clamps, cash handle, cover, and any selected ASSET variant.
4. Thread Cutting:
   • Use an M3 screw to cut the thread into the housing from the bottom.
     (Starting from the bottom helps prevent delamination of the plastic.)
   • Repeat the threading process several times to ensure a crisp, well-defined thread that allows the printed screws to insert smoothly.
5. Final Assembly:
   • Step 1: Install the internal card clamps.
   • Step 2: Attach the cash handle (or your chosen ASSET variant).
   • Step 3: Secure the cover onto the assembly.
   • Step 4: Insert the money clip (if your variant includes one).
   • Step 5: Tighten the screws carefully.
     Caution: Avoid over-tightening to prevent damage to the printed parts.
6. Extra Precautions:
   • It is advisable to print extra screws in advance to account for any misprints or assembly errors.

Conclusion

This 3D-printed wallet blends modern design with practical functionality. Its customizable features—including various modular options like MagSafe, RFID, and multiple ASSET handle variants — allow you to tailor the wallet to your specific needs. The requirement to use the wall generator "Arachne" further ensures that the final printed product maintains excellent structural quality. Each component and variant is thoughtfully designed and documented, with accompanying images to aid in the selection process and assembly. You can just delete modificator to remove top R4 logo, its optional


*I used this magsafe magnets with my variant wallet
https://www.aliexpress.com/item/1005006521276078.html
