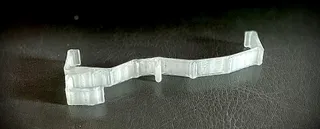

Prusa XL Screen Guard for Injection Molded Screen (w/ holders and wire cutout)

Prusa XL Screen Guard for Injection Molded Screen. Added clearance hole for ribbon cable and tool holders
4h 21m
1× print file
0.20 mm
0.40 mm
78.00 g
1
11
1
60
updated March 17, 2025

Description

PDF

Great job to the original designer, good fit around the screen and particularly how tight to the LEDs it is.  The only issue I had was the screen's ribbon cable and ground cable had no room to squeeze by.  I could mount the original, but I it would flex the bottom crossbar.  So I simply removed a space for the cables.  In other models I have seen a Calibration Pin and Dock Screw mini-wrench holder so I built models for these and put them in as well.



Printed in Prusament Galaxy Black PLA, IIID MAX Crystal PLA+ and used BVOH for nice tight supports in the overhangs.

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

  • Added Ribbon & Ground clearance hole
  • Added Calibration Pin Holder
  • Added Dock Pin Mini Wrench holder
  • Extended lower angle of the LED Lens to the main body
