Pi4 Fan Voron 3010 and 2510 Voron Self Tapping M2 Screws

Two screw pi fan for 2510 and 3010.
6
14
1
65
updated March 16, 2025

Description

PDF

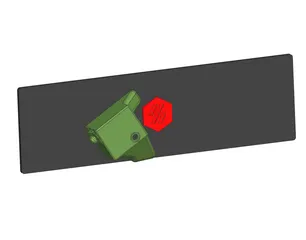

Wanted a pi4 fan that was tall enough for a heat sink and used 2510 fans (it's what i had). Also added holes for 3010.

This is meant to be used with the voron back plates that use M2 self tapping screws. I included a tall and short version for people without heatsinks. The fan screws on with M3 bolts directly into plastic. The tall version needs a really thin screwdriver to install,

I like it because it only uses two screws to install and has two support pegs.
