Hicapa 3011 Airsoft

Update 1 : Slide lock likely fly away so we find the way to fix ts(this)
Added SlideLock
Added anti-walk for fcg likely come out too

Note: Grip are not include
infill 99% weight around 280g (only model)
no full auto too lazy to make it work (but you can bump fire)

Video:  (got delete lol)

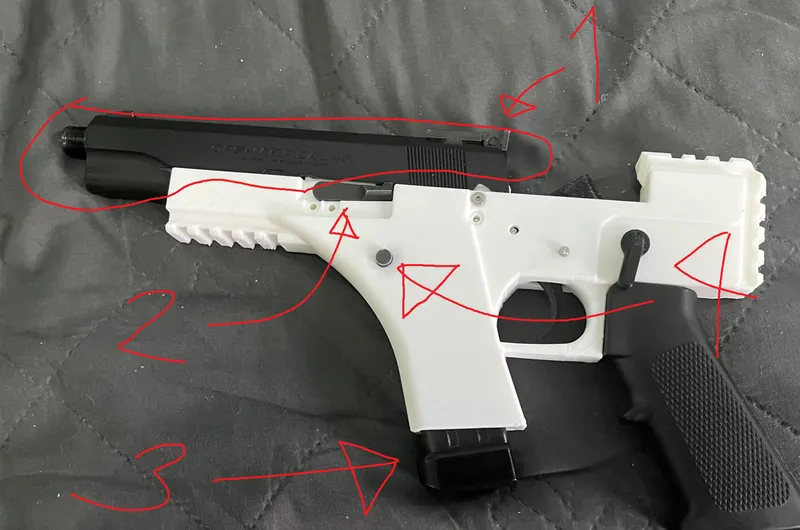

What we need form hicapa
1 slide (hopup ,nozzle ,etc)
2 slide lock
3 magazine
4 mag catch

test on tm hi capa 5.1 work
but other brand like WE/AW , Army , KJW not sure it work or not

Part list

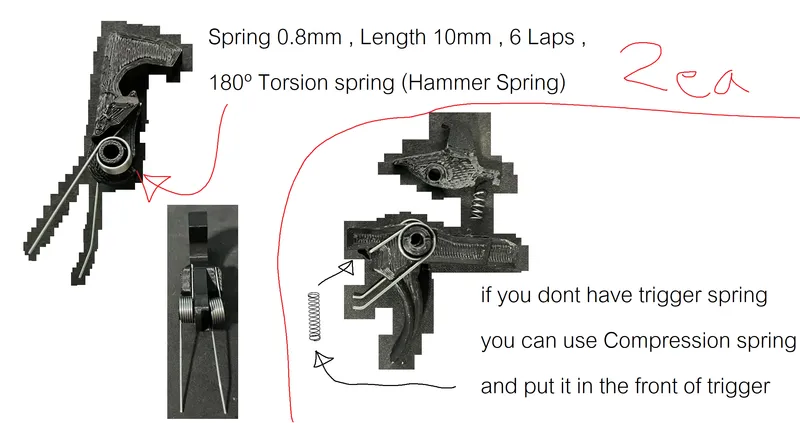

Fire Control Group
2 Spring 0.8mm , Length 10mm , 6 Laps , 180º Torsion spring (Hammer Spring)
https://aliexpress.com/item/1005007464992087.html
1 Spring 0.4mm , Length 15mm , 5mm OD Compression spring (Trigger Spring)
1 Pen Spring (SemiAuto Disonnect Spring)
2 Dia. 4mm minimum 25mm (you can buy it longer like me i use 30mm)

Safely Selector
1 Dowell Pin 3mm (for selector select)
https://aliexpress.com/item/1005005446941538.html
1 Spring 0.6mm , Length 30mm , 3mm OD Compression spring (Selector Select Spring)
https://aliexpress.com/item/1005002799032125.html

Grip
1 M6 lock washer 1 (for lock Grip)
1 M6x25/30 1 (Grip)

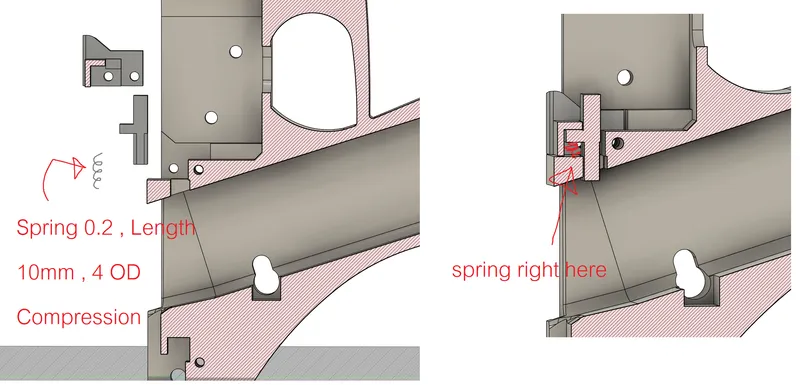

FirePin
1 Spring 0.2 , Length 10mm , 4 OD Compression spring (Pin spring)

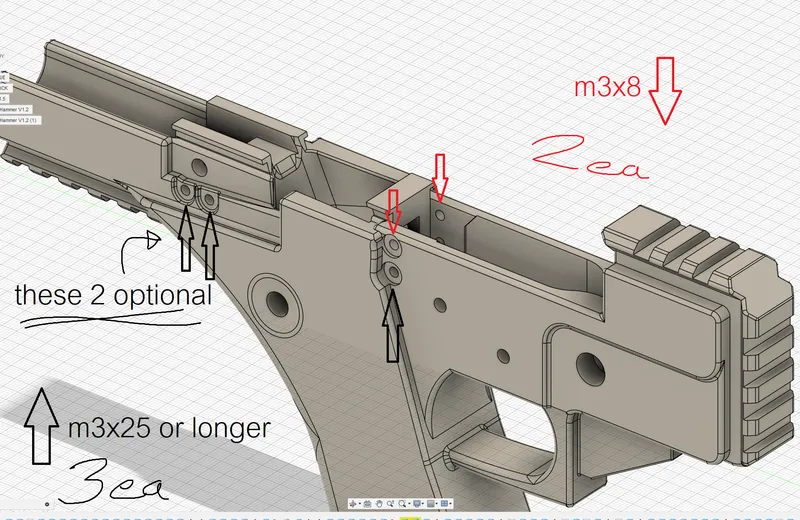

2 M3x8 (Lock Firepin)
3 M3x25 (Lock firepin and 2 thing on front)

Here useless guide

Fcg same as FGC-6H

Body remix form The 3011 DoubleStack

and Remix Hammer form FGC-6H

im remix this thing complate in 12 hour :D

remodel hammer
