I recently bought my first SKADIS pegboard from IKEA to better organize the tools around the 3D printer. I know there are already many hooks, mounts, and tools for the SKADIS pegboard here on PRINTABLES and it seems like all the solutions are ready. Yet I believe I'm coming up with something new.

So let me introduce this universal clamp that clips into the hole of the SKADIS board over the tool mount. The tool mount is then really firmly attached to the board in all directions. After the clamp is snapped in place, the surface is nice and flush.

Introducing video:



Assembly (also see pictures or video):

  1. align your tool mount with the holes on the SKADIS pegboard
  2. hook the clamp first at the top of the hole
  3. push the bottom of the clamp to clip it into the hole
  4. now you can hang the tool

Removing the clamp (also see pictures or video):

  1. insert removal tool or Allen key into the clamp hole
  2. push upwards with your finger

Tool mounts:

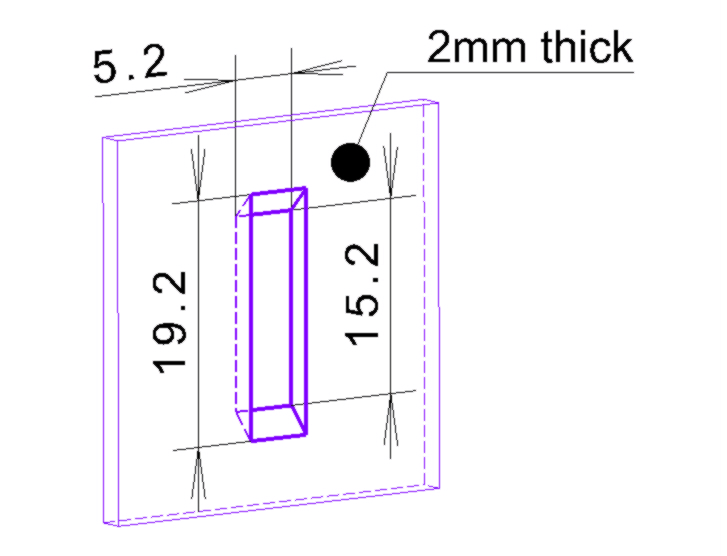

From now on you can create your own tool mounts for this clamp. The only important thing to keep in mind is the shape of the hole for the clamp:

My first tool mount for this clamp is Double hanger (https://www.printables.com/model/1233164-double-hanger-for-skadis). You can also check the hole for clamp there.

Printing:

Print it laying down on its side surface (see video). As a material I recommend PETG because of its flexibility, 2 perimeters, 15% infill.

For removal tool I used PETG as well, 3 or 4 perimeters (it needs to be strong). But I thing the Allen key is may be even better option.
