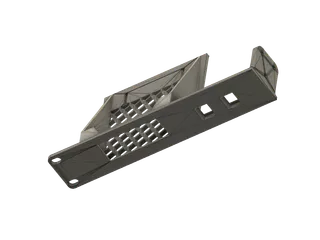

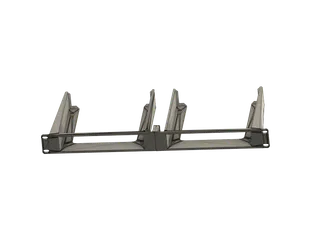

Unifi - UCG Fiber rack mount 19 inch

Unifi - UCG Fiber rack mount 19 inch
8
51
2
326
updated March 31, 2025

Description

PDF

Made some changes so it fits a 19 inch rack.  adapted the mounts from @Mauker





thx to @FruitieX

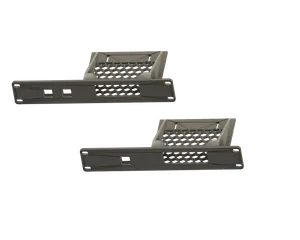

26/3 Model - Removed the small front cutout in the front plate, and removed the honeycombstructure on the back plate, for front mounting the UCG-Fiber.



31/3 added a keystone patchpanel, Based on the mounts from @Mauker

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

now fits a 19" rack
