Etekcity ESWD16 Replacement Front Plate

Convert the terrible 3-button interface into a simple full-face paddle with a beautiful glow brightness
0
3
0
38
updated March 12, 2025

Description

PDF

The Etekcity ESWD16 is a nice dimmer, and made better by the use of custom firmware (which you can grab here: https://github.com/avwuff/esphome_eswd16)

However, the front buttons on the device are terrible, requiring you to look at the switch to find the tiny power button.  Instead, check out this improvement, which replaces the front with a full-size paddle that can be clicked up or down, or held.

(ESPHome config coming soon)

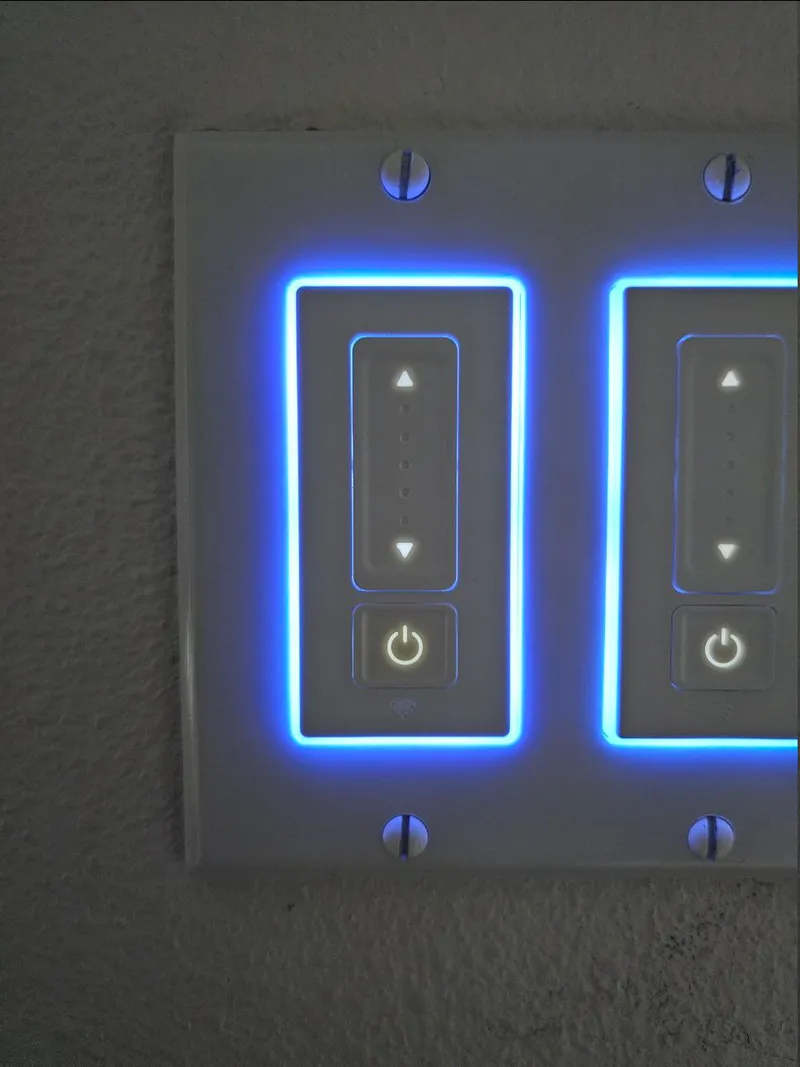

Before:

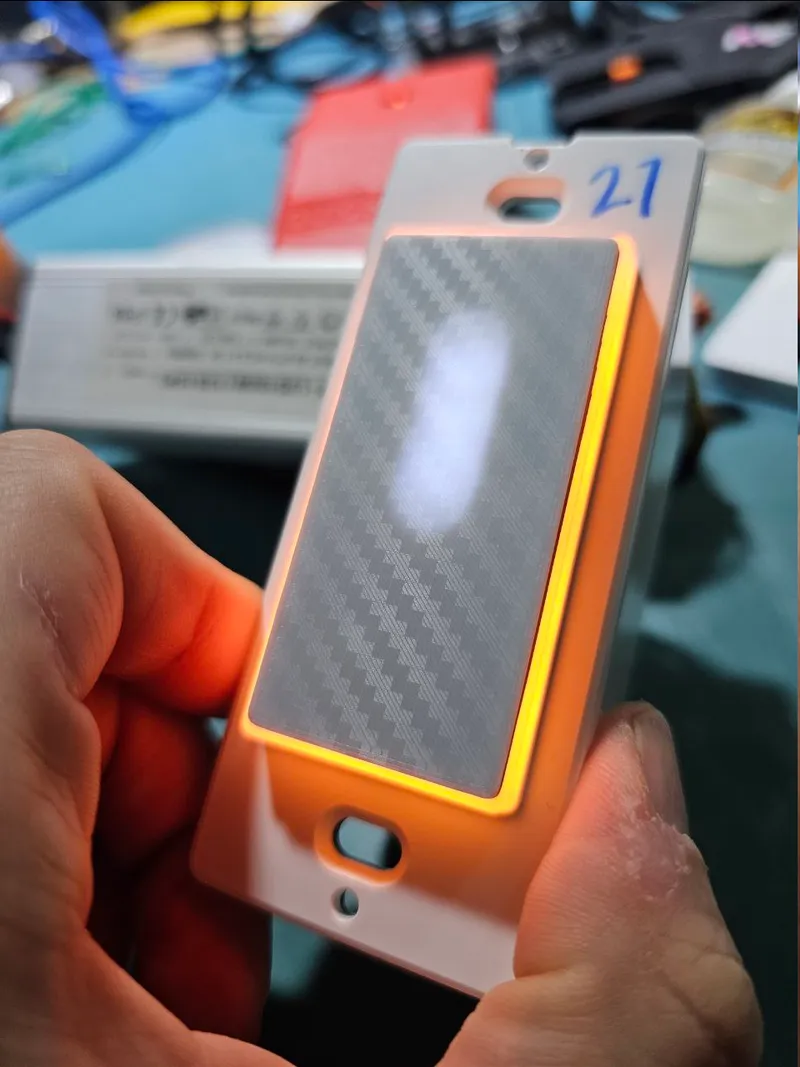

After:

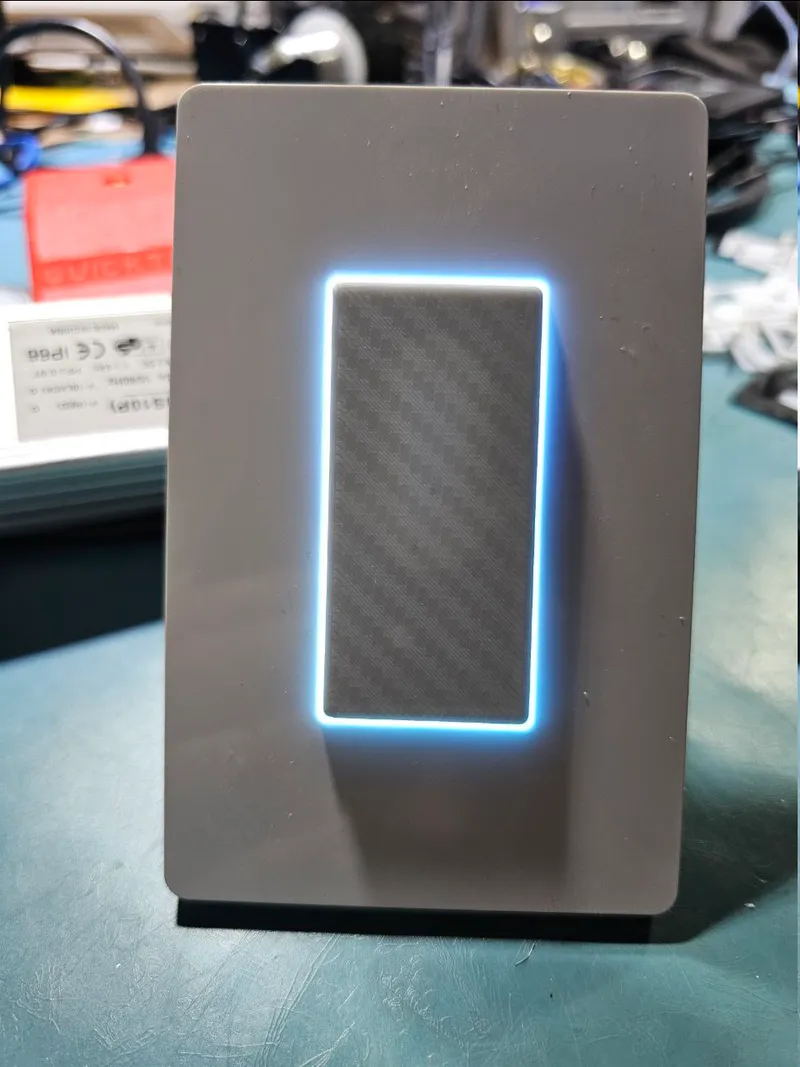

When printed on a textured PEI plate, you can get some cool textures on the face:

Installation instructions coming soon, but it is pretty simple, just remove four screws and swap out the original parts.



Model origin

The author marked this model as their own original creation.
