Flip Filament Out Mod for iDryer Unit

This modification for the iDryer Unit allows you to quickly and easily rotate the filament output by 180 degrees
1
4
0
90
updated March 9, 2025

Description

PDF

This modification is particularly useful in cases where large filament spools get stuck against the lid. By simply rotating the filament output upward, this problem is eliminated.

Materials List:
- 8 magnets (10 mm diameter, 2.7 mm thick).
- 4 M3x8 mm bolts (compatible with iDryer kit bolts).

Printing Instructions:

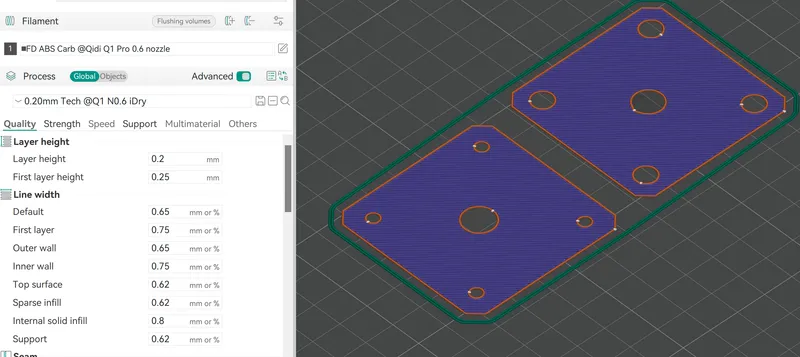

- First layer height: 0.25 mm, subsequent layers: 0.2 mm.

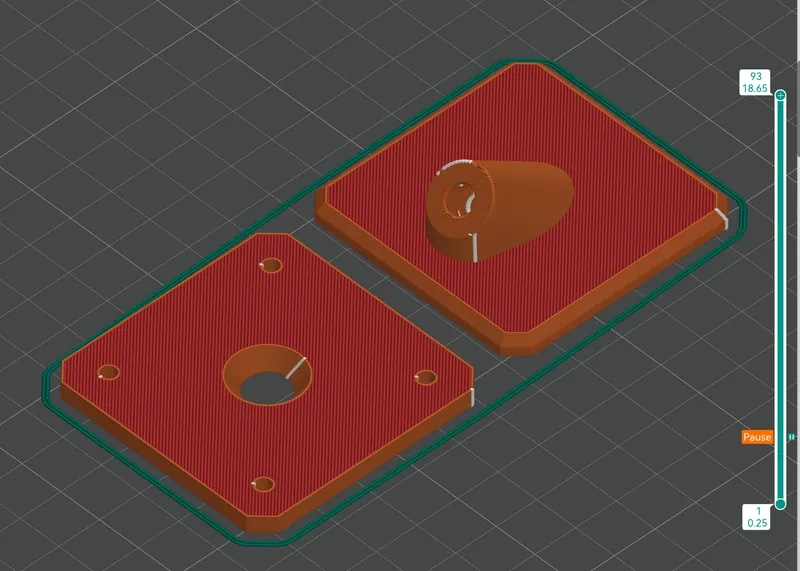

- Arrange parts as shown in the screenshot.

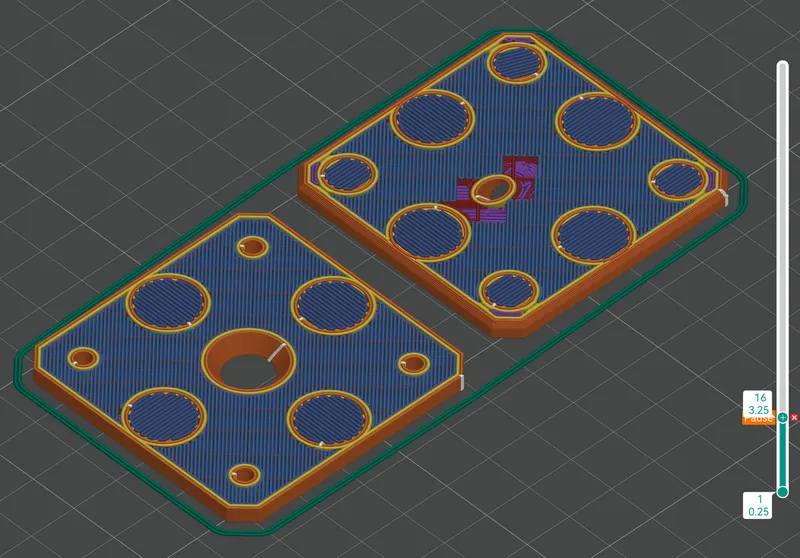

- Add a pause before layer 16 to insert magnets (ensure correct polarity).

If you need a model with different magnet sizes or a different tube connector, feel free to contact me.

All printable files and source files will be available on GitHub


Model origin

The author remixed this model.

Differences of the remix compared to the original

Flip Filament Out Mod is a modification for the iDryer Unit that allows you to quickly and easily rotate the filament output by 180 degrees. The original design allows for this adjustment using four bolts, but to make it more convenient and faster, magnets were used.
