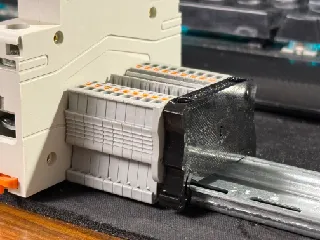

DIN rail buzzer clip-on holder

This is an easy way to use small buzzers in big electronics bays. Meant to be used with 35mm DIN railing.


First, you put two wires through the two holes inside the pocket, and you have to solder them to the buzzer's pins. After, you pull the buzzer tight into the pocket, screw on the cap to keep the buzzer at its place, then you have two choice:
1. You can wire the buzzer directly into your circuit from the underside/the two sides of the clip-on holder
2. You can wire them into the diy screwterminals on each side of the clip-on.

If you choose the terminals, you just have to screw in two screws with two washer on each side into the plastic. Also watch out and make sure the wires of the buzzer are correctly between the washers.. loose connections are no good! Use crimps if possible

Electronics:
1 pcs buzzer 9.5*12mm (any voltage)

Hardware:
2 pcs M3 8mm screw

+4 pcs washer
+2 pcs M3 6mm

0screw if you want to use the terminals on the side

You can find 1.5, 3, 5, 12, 24V versions below.

Print it in petg
