SpaceX Starship Super Heavy Booster (Block 2) (1:144 Scale)

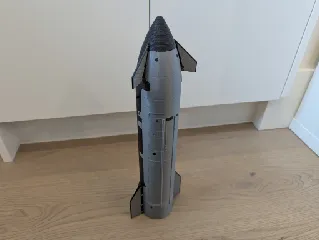

This is a 1:144 scale model of SpaceX's Super Heavy Booster, the first stage of the Starship rocket! It measures at 62.5mm in diameter and the booster + Hot Stage Ring is ~ 490mm tall!

This is “Block 2” of the booster!

Ship can be found here: SpaceX Starship (Block 2) (1:144 Scale) by anventia | Download free STL model | Printables.com

All parts took a total of around 16.5 hours to print at (mostly) default speeds on my Bambu Lab P1S!  Silver filament is eSun PLA Plus.

Materials List:

• 3D Printer with at least 249mm of Z-height. (if anyone wants, I can split it into more than two main parts for you!)
• Superglue or similar
• 18x 10x5x2mm magnets (optional, untested, see below)

Some notes:

• Currently uses six pins to connect to the HSR and a ship (WIP). Will use 10x5x2mm rectangular magnets in the future, but mine haven't arrived yet so I cannot test if they fit. (see very bottom)

Read all instructions before printing, and if you have any questions or need clarification, please leave a comment!

Printing Instructions

Quantity, color, and orientation of parts are in the Files tab by the filename. All parts are printed in silver unless otherwise specified.

Some additional notes:

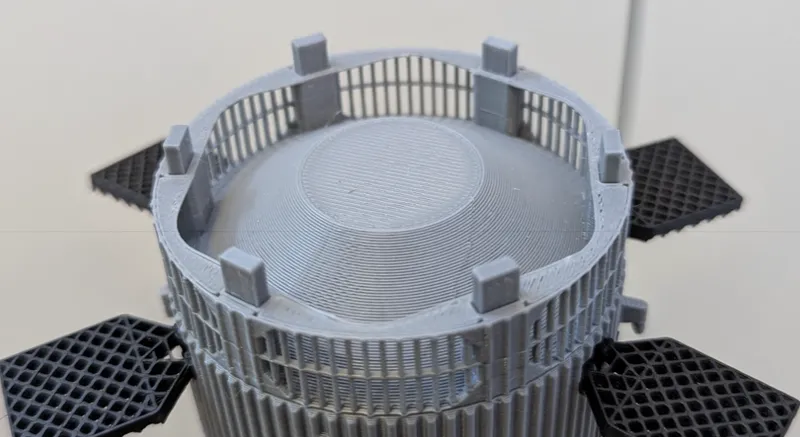

• Booster bottom section: May need supports around the starlink holes on the chines
• Booster top section: Use manual supports to add them under the catch pins. You may also need some under the pipes at the top, but those may be hard to remove.
• Grid Fins: Use Arachne slicing engine / “Print thin walls” / a smaller nozzle to be able to print the 0.4mm wide lines. Print slow, and potentially cooler as well to reduce stringing.
• A outer-only brim is recommended for the Top/Bottom sections and the Hot Stage Ring.

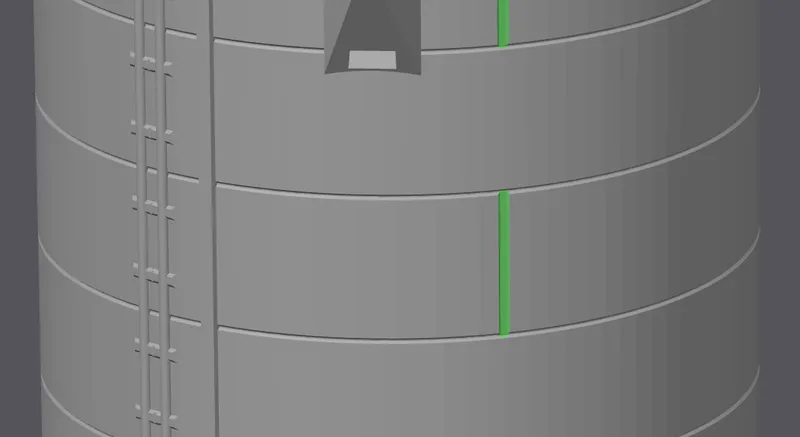

Paint on seams (green lines) to the top/bottom sections along these vertical indentations to hide them from view.

May want to print these parts with a slow(er) outer wall speed of ~60mm/s if on a fast printer, to ensure small details around the bumper print properly

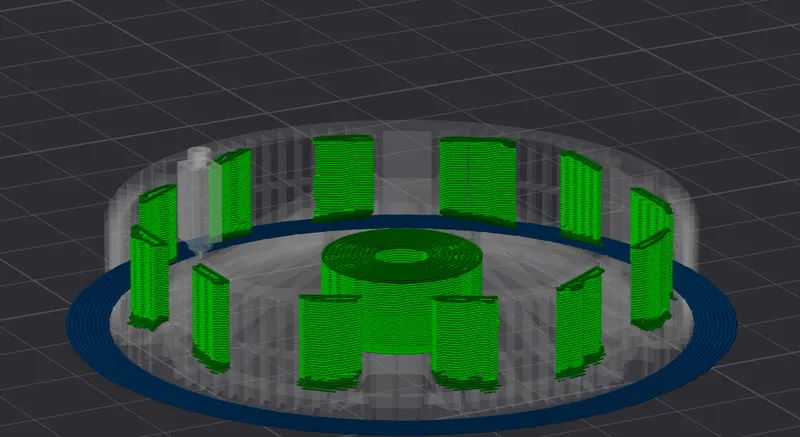

Add supports here to the Hot Stage Ring

(see below)

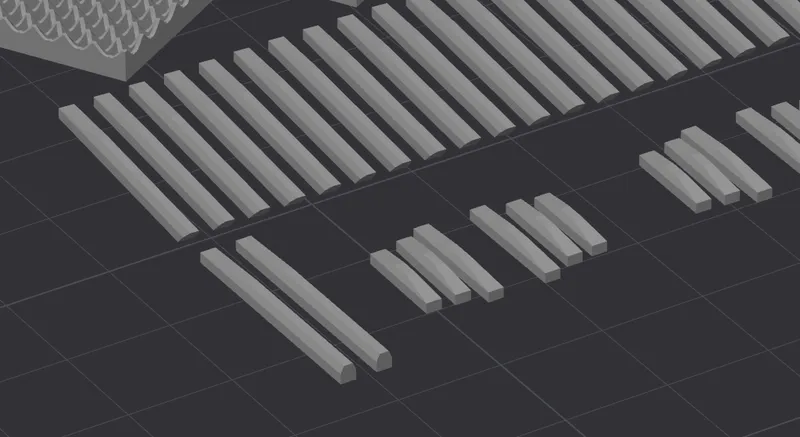

Orientation for small bumpers and dark stringers.

(see below)

Two files, “black_parts.stl”, and “Hot_Stage_Ring.3mf” are provided:

• The black parts include all the bumpers/stringers/gridfins/starlinks oriented in the correct way.
• The 3mf file is made in OrcaSlicer, might have to adjust settings for your machine, but has painted supports in the correct locations.

Assembly Instructions

Step 1:

Insert the two connectors into their slots. May require some force.

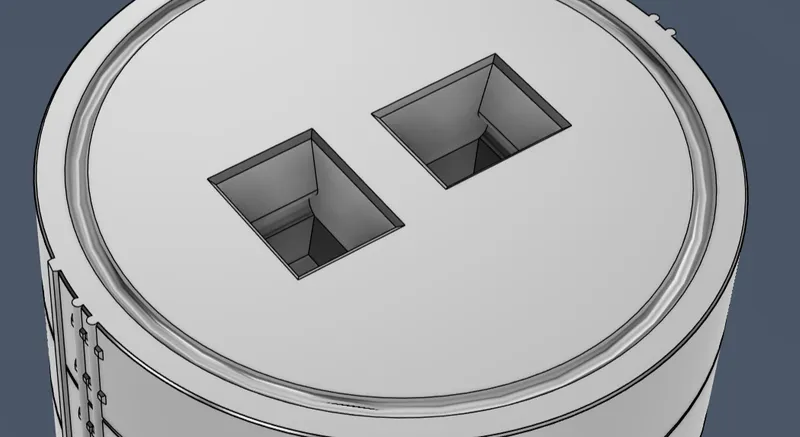

Then, apply a thin layer of superglue around the surface, inside the “moat” (to keep it from spilling). Snap the two halves together.

Step 2:

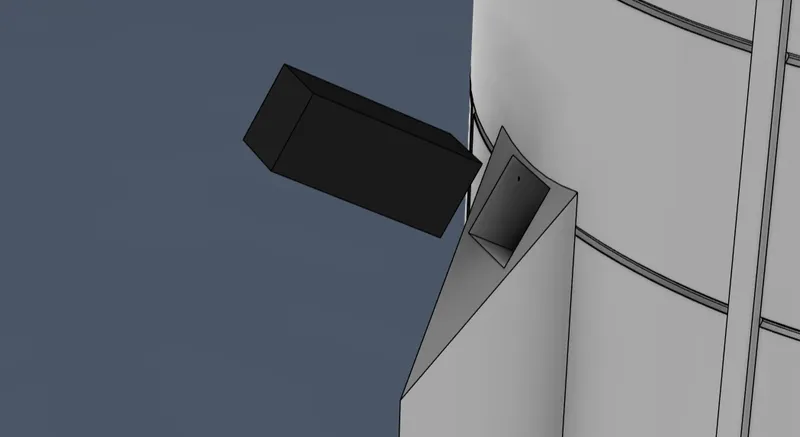

Glue in place the Starlink boxes.

Some masking tape helps to keep them in while the glue dries.

Step 3:

Glue the bumpers in place. Sloped side out.

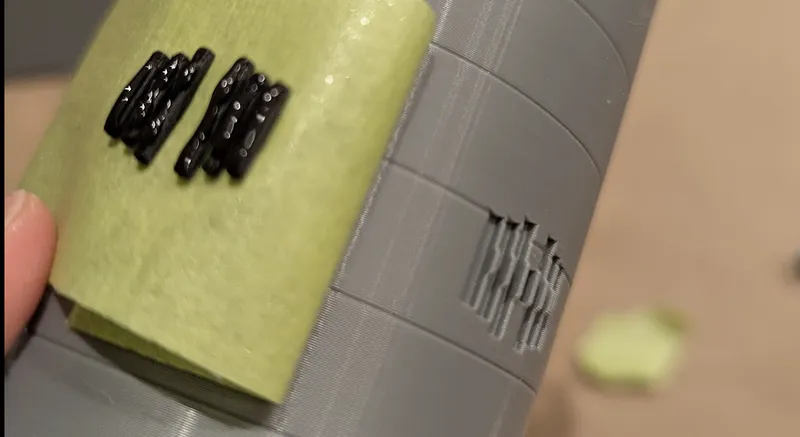

Put them in without glue, apply masking tape, then peel back. Then you can apply the glue before carefully taping them back down.

Step 4:

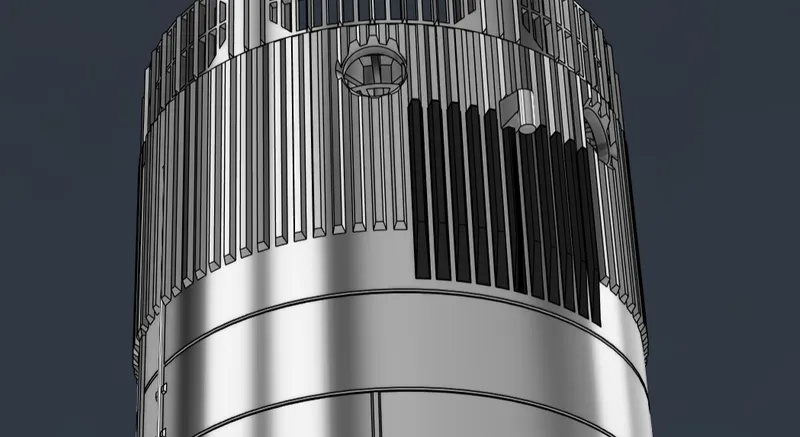

Do the same for the dark stringers. Sloped side out, large slope down.

The center one is shorter and goes underneath the catch pin in the middle. May require trimming depending on support interface quality.

Step 5:

Snap in the grid fins (be careful!).

Then, insert the 6 pins and the Hot Stage Ring!

Pins can be glued to the Hot Stage for easier removal from the booster.

Wait for the glue to dry, and you're finished!
