Hercules DJcontrol Mix mount for tripods, surfaces and poles

(Not tested on the device yet)

Operate the Hercules DJcontrol Mix while standing, lying down or sitting - no matter when, no matter where.

Let this little boomerang, made specifically for the Hercules DJcontrol mixer, be your partner in crime (criminally good music).

Attach the adapter to the tripod or surface of your choice and clamp the plate onto the adapter. Add the mixer and the phone holder, and you are ready to go.

And if the provided adapters don't fulfill your needs, just grab a template model and remix a fitting piece :)

Updates

• V2 → 28.03.2025
  • wider phone adapter → more stability

Features

• Custom arm fill style
• Removable smartphone holder
• Snap fit the plate on various adapters
• Adapter templates for personalized remixing

Print settings

General

• min. Perimeters: 2 (2 = enough | ≥3 = stable)
• Top/Bottom solid layers: 3
• Infill: 10-20%, Cubic (most stable infill, as far as I know)

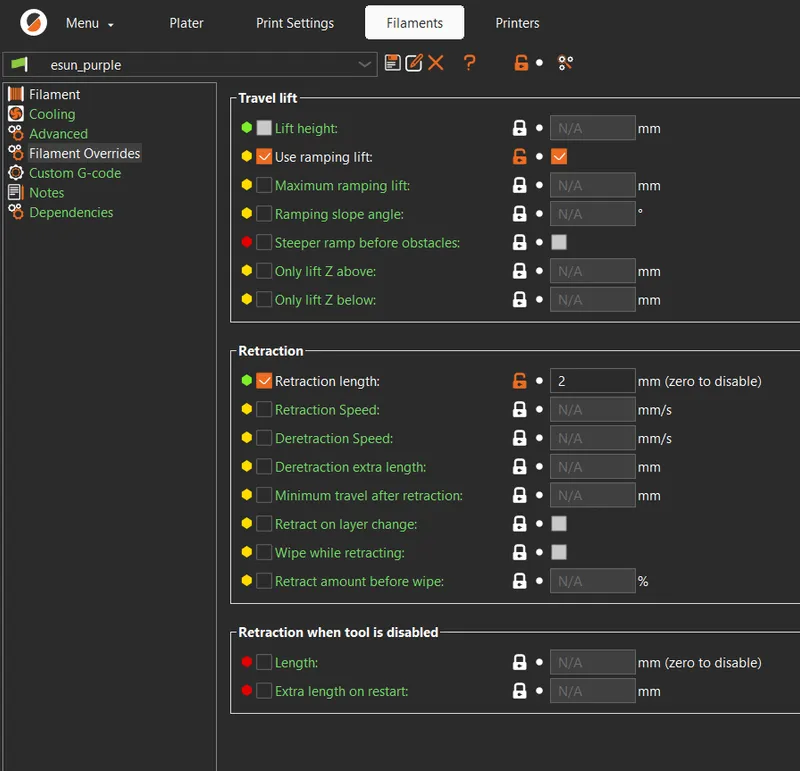

• Z-hop for long travels: enabled (also make sure to retract when traveling to avoid stringing → like on image below)

Plate

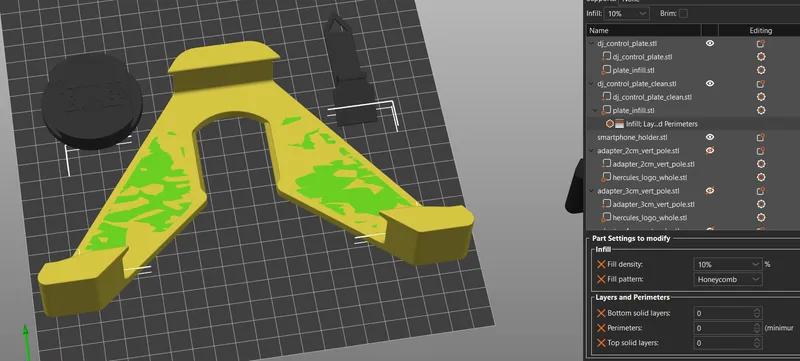

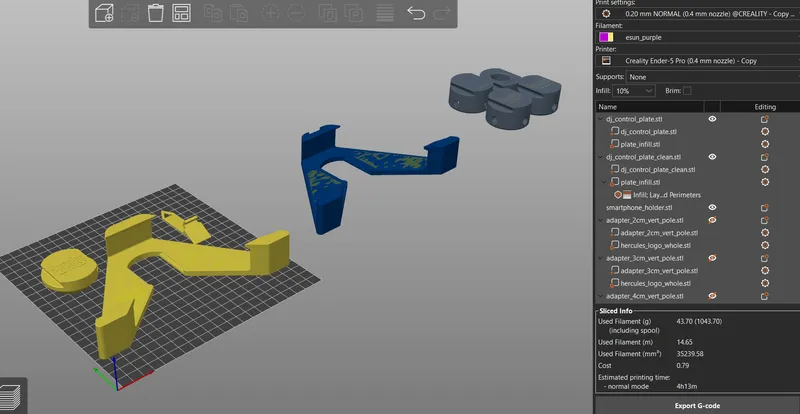

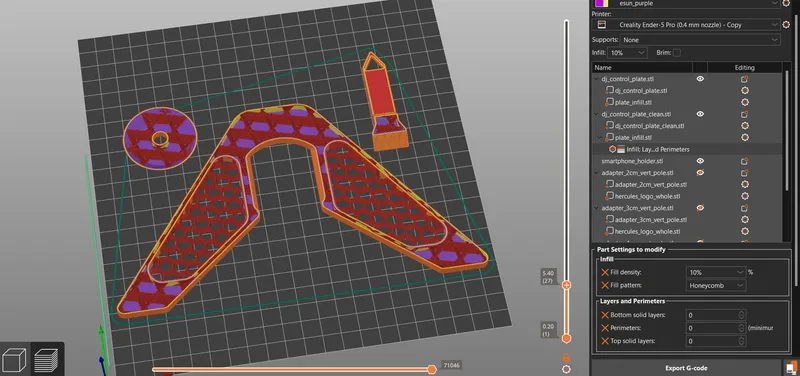

Custom arm infill in PrusaSlicer:

1. Select the plate → right click
2. Add modifier → load → choose plate_infill
3. Right click on objects → add Infill and Layers & Perimeters
4. Set as shown in images (or whatever style you prefer)

Adapter & smartphone holder

• Print with your most stable settings.
• Multi-colored adapters/colored Hercules logo: load the logo like shown in the custom arm infill section. Just make sure you select the correct logo for the corresponding adapter.

Assembly (tripod adapter)

Warning

• Be careful handling hot stuff and don't accidentally touch the hot iron.
• Don't assemble nearby kinds due to unhealthy fumes released by the molten plastic.
• Don't assemble nearby flammable objects and materials.

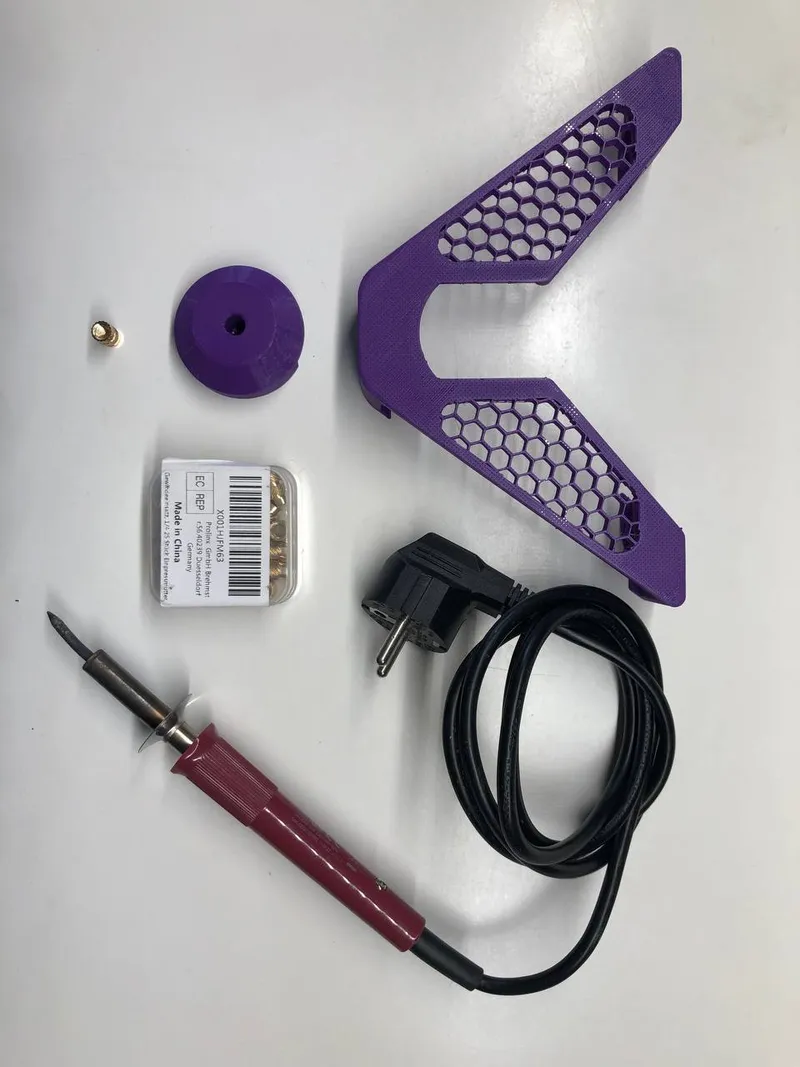

Components

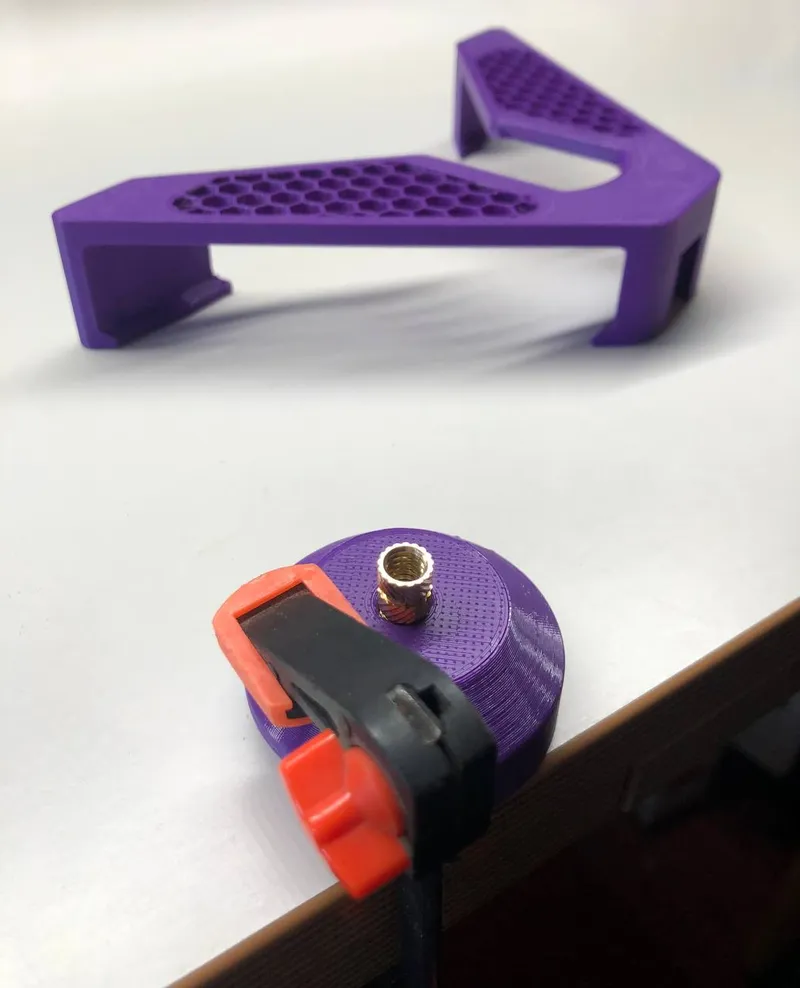

• Threaded insert 1/4 inch, ~7mm outer diameter (specific female camera thread). And if you have another brand/size, just cut a cylindrical hole in the slicer yourself.
• (Assembly) Soldering iron or wood engraving iron (there are multiple ways to do this)

1. Heat up your soldering iron with an old tip (could get in contact with the plastic).
2. Put the insert in the bottom hole.

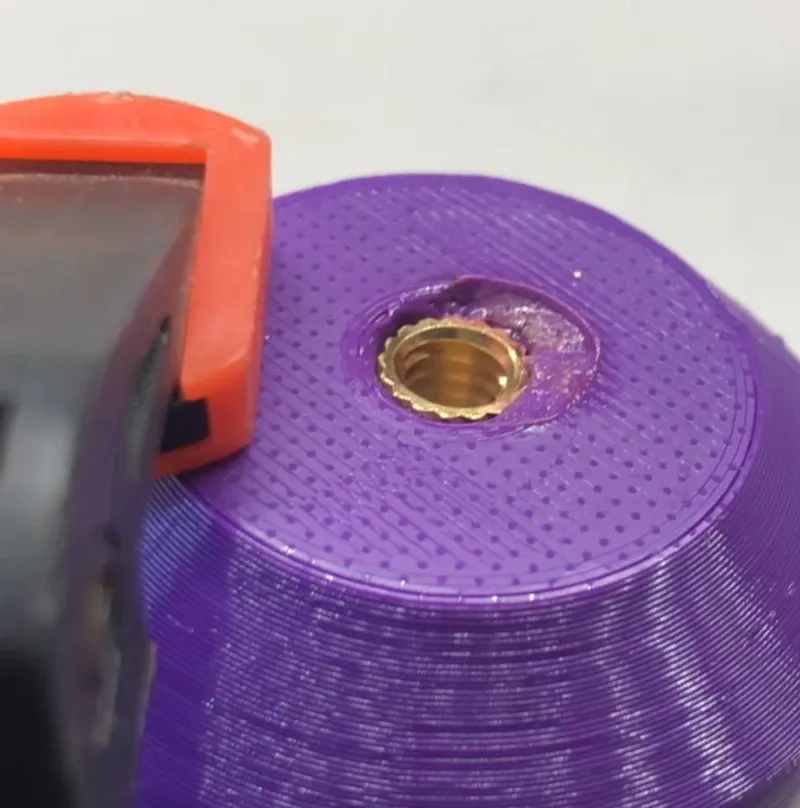

3. Press the tip in the hole until it is about two millimeters behind the bottom surface.
4. Turn off your soldering iron, let everything cool down

Don't be like me, I tried it without a tip and slipped off at the end. Take your time. (my tip was too thin and long)

COMING SOON

• adapter_bicycle: adapters for horizontal poles

Version 1.1
Made with Rhino 8
