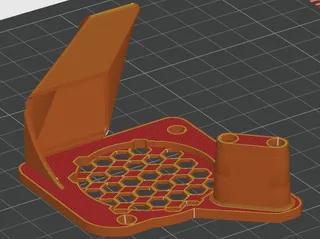

5020 Fan Blower Mount - Creality Ender 3 V3 SE
Description
PDFThis replaces the stock 4010 Fan with a 5020 Blower.
=>>> Significantly less noisy than the stock cooler <<<=
Pushes more air, but be advised, noise level will increase.
You'll need (2) M3x20 Flatheads with Nuts, or M4 heatset inserts + Flatheads to mount the Fan and the original (2) M3 Flatheads to mount the Shroud.
Fans I used: https://de.aliexpress.com/item/1005007594043332.html?spm=a2g0o.order_list.order_list_main.87.405c5c5fhklcVk&gatewayAdapt=glo2deu
(gdstime 5020 Blower)
Note: The Printer uses JST 1.25 connectors; You can get them here: https://de.aliexpress.com/item/1005004732865407.html?spm=a2g0o.order_list.order_list_main.72.405c5c5fhklcVk&gatewayAdapt=glo2deu
(Sometimes you need to swap the polarity of the connector with the printer, red to black, black to red)
Tested:
Printed with Sunlu PETG (Red Transparent) at 230°C 20% Gyroid Infill
Can be bought at:
https://de.aliexpress.com/item/1005006897332758.html?spm=a2g0o.order_list.order_list_main.105.405c5c5fhklcVk&gatewayAdapt=glo2deu
Updates:
v11: narrower duct, better angle at nozzle, closer distance, lifted cutout for fan assembly plastic
v7 fix: fixed blower input size (was 29mm, now is 26.2mm)
Upcoming revamp ~ April 2025:
- Flip Fan
- Add small (optional) Cover to the fan
Made by: AI-Krieger (Me)
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
- Transitioned from 5015 Blower to 5020 Blower (because 5020 blowers are better)
- (Also fixes the issue from taking the heat from the hotend, since 5020 are open on both sides)
- Now uses the original M3 Flatheads of the printer
- Increased distance from print-head is accounted for (3mm wider)
- remodeled blowing duct for better airflow
