Round Bars Pipes and Rods Connections

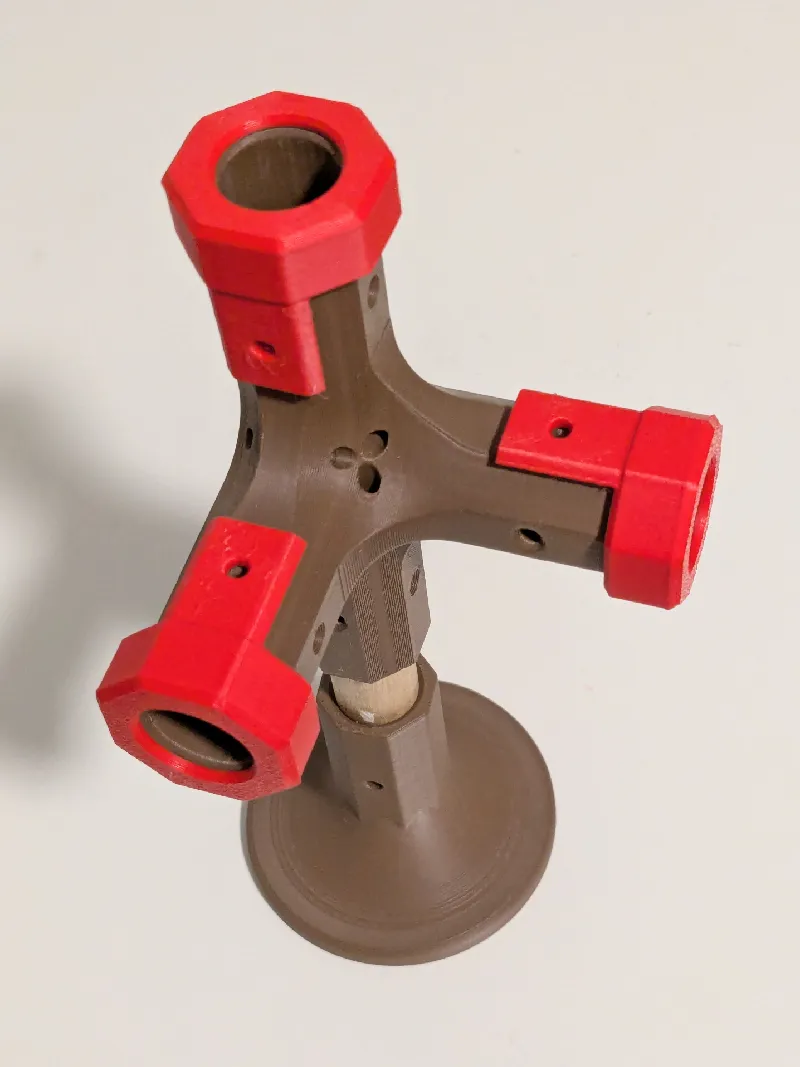

Set of round bar connectors for rods with diameters between 5mm - 40mm

Features:

• Press-fit of the round bars
• Countersunk screw locking holes
• Holes for tensile force absorption

Changelog:

28.03.2025: Added geometry d_d_d_d_d_d

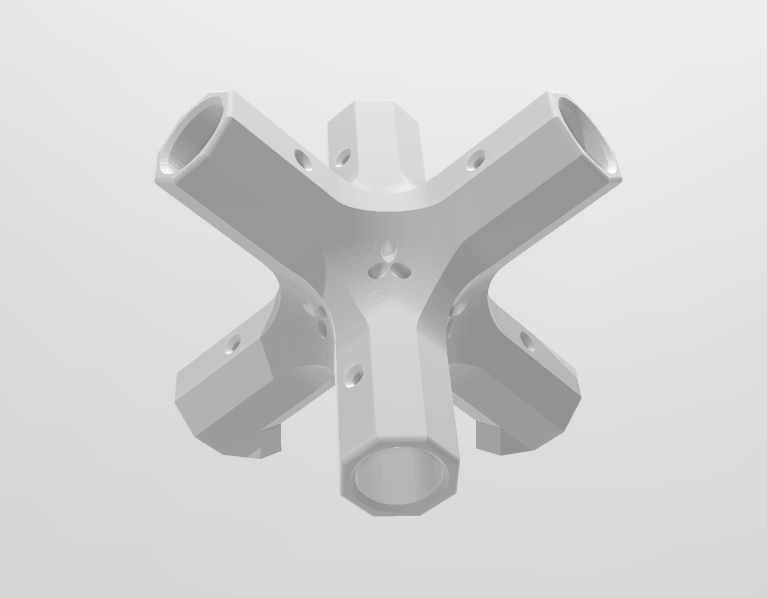

Available connectors:

(d_d_d → 6_6_6 for 6mm round bars)

d_d_d_d_d_d

d_d_d_d_d

d_d_d_d

d_d_d

d_d_d flat

d_d

d_d flat

d_foot

Materials:

• Smooth dowel rods made of beech wood are suitable as round bars (tested 6mm, 8mm, and 15mm).
• For screwing, M3 wood screws without shaft and with countersunk head are suitable. The length should be at least ½ of the diameter.
• A thin steel wire rope (1-2mm) can be used for tensile force absorption.

Extensions:

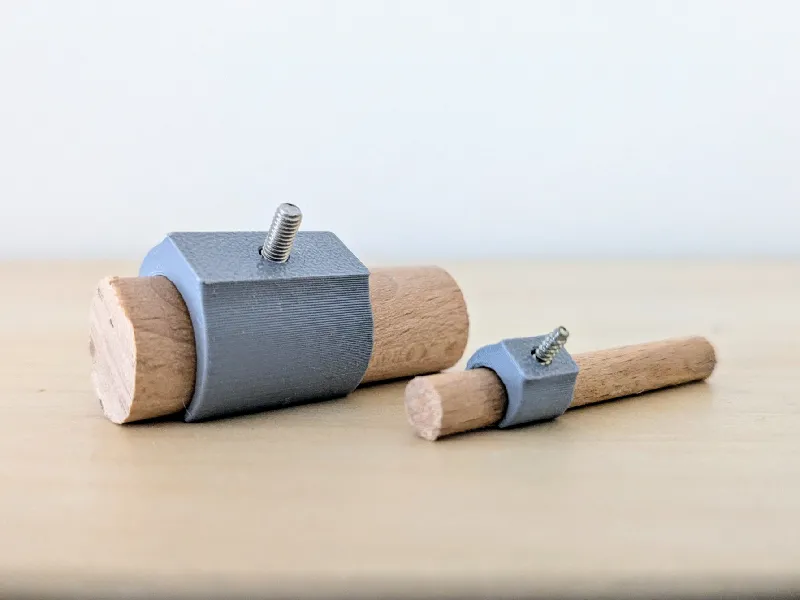

If you are looking for something to attach to round bars, check out this model of a well designed clip for different diameters:

https://www.printables.com/model/1216633-clip-for-rods-pipes-and-round-bars-with-screw-moun

In order to increase the strength of the connectors even more, check out this model:

https://www.printables.com/model/1231111-reinforcing-element-5-times-stronger-for-round-bar

Community:

I appreciate the community aspect of 3D printing and am pleased to share my models for everyone to use.

If you decide to print connectors, I invite you to share pictures of your finished models. Seeing how others utilize these designs can be beneficial for everyone. I also encourage you to provide feedback on the included print profiles. Your experiences and suggestions can help improve the designs and assist others in achieving better results.

If the desired diameter is not available:
To adjust the diameter for the pipe connection, you can modify the expression named "shaft_diameter_measured" in the CAD file under "Modify/Parameters".
