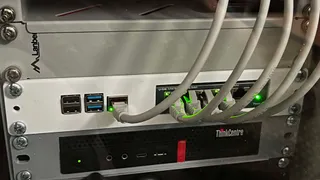

U1 10" Inch Rack Mount for Raspberry Pi 4 and TL-LS1005G
For mounting a Raspberry Pi 4 and a TP-Link LS1005G on a 10" inch rack.
7
48
1
518
updated May 7, 2025
Description
PDF[Update 7th of May 2025]:
Fixed the fitment issue for the switch, and also made a cutout hole for the Raspberry Pi 4's SD card slot.
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
U1 10" Inch Rack Mount for Raspberry Pi 4 and TL-LS1005G
Remix of my other model, but modified to fit the smaller TL-LS1005G instead.
Support:
If your homelab contains a lot of heat, then use PETG for the print.
Must be printed with bracket plate facing the print plate.
Recommended infill:
- 20%
- 3 perimeters/walls
