E3D Hemera Filament Runout/Presence Sensor

A simple filament runout/presence sensor for the E3D Hemera, inspired by the clever solution found in the BoxTurtle by Armored Turtle (https://armoredturtle.xyz/). So far it has been as reliable as it is simple. It also pairs nicely with the BoxTurtle! Available in two orientations to support different mounting requirements.

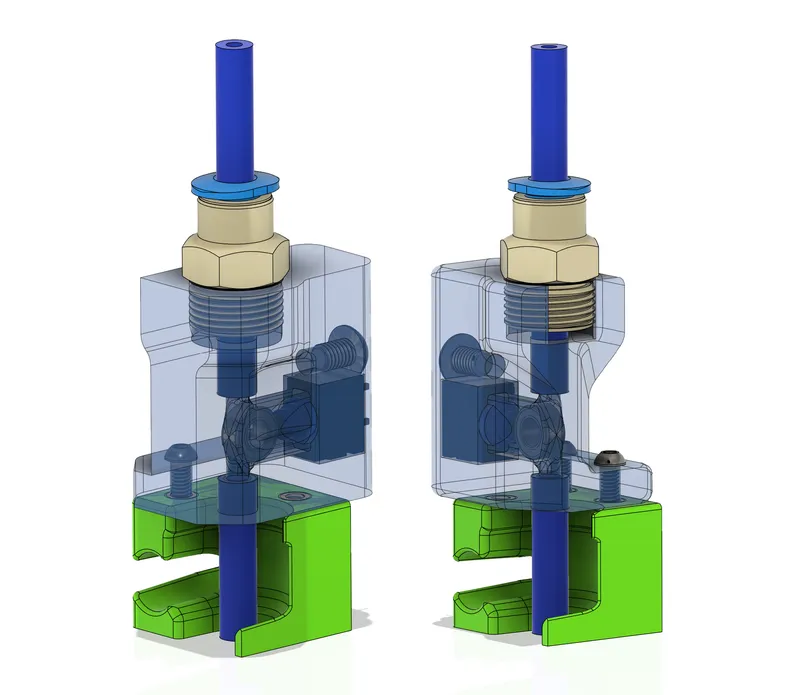

Orientation A on the left, Orientation B on the right

Installation

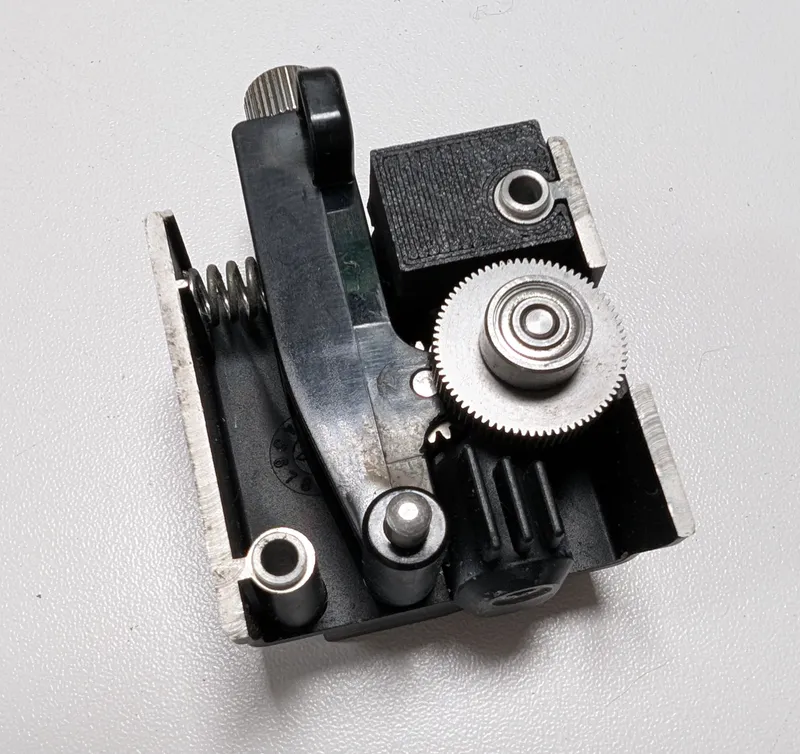

Assembly requires removal of the heatsink to install the modular base. It is STRONGLY recommended that all PTFE tubing have the ends chamfered.

Required Parts

• E3D Hemera, direct-drive
• MR63ZZ Bearing
• PC4-M10 Pneumatic Connector
• D2GW-A03D Omron switch
• 17.25mm of PTFE tubing between the Hemera and sensor, chamfered (Capricorn XS Tubing recommended)
• M2 configuration requires M2 threaded heat-set inserts
