Wheels/Tires for Traxxas Slash | Paddles or Smooth

– Please Read This Before Printing –

1. Printing filaments

I recommend printing you tires in TPU filament, with more walls then usual and a Low infill (I would say max 10%)

For the WheelHub & the TireHolder, print them in PLA or any equivalents.

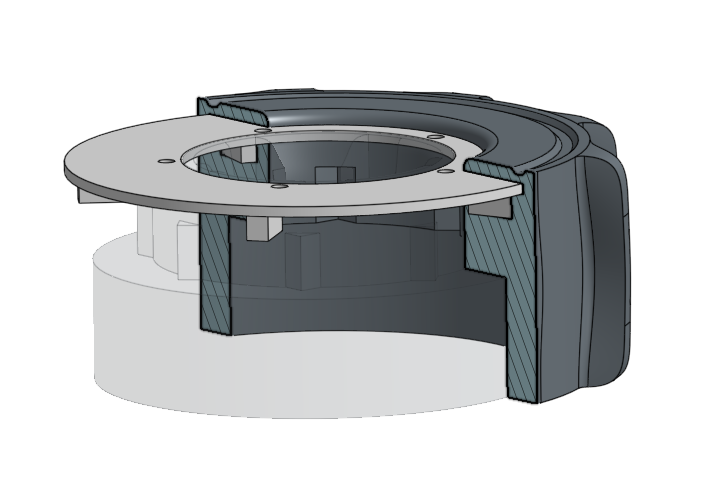

     2. How to print the Tire with the Insert TireHolder

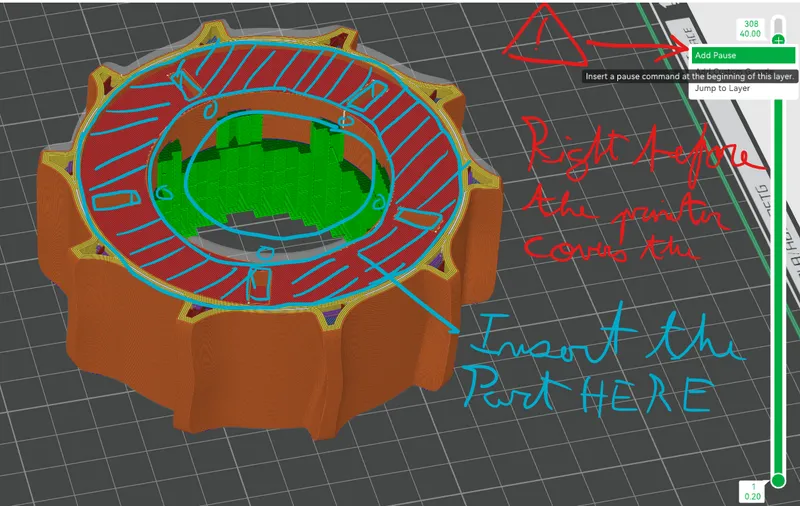

To hold the tire you will need 5x M3 Screws. The file called “TireHolder_Insert” shoud be printed in PLA or similar BEFORE the tire because you will need to add a stop in you print gcode in your slicer at the right layer and mannualy add this “TireHolder_Insert”

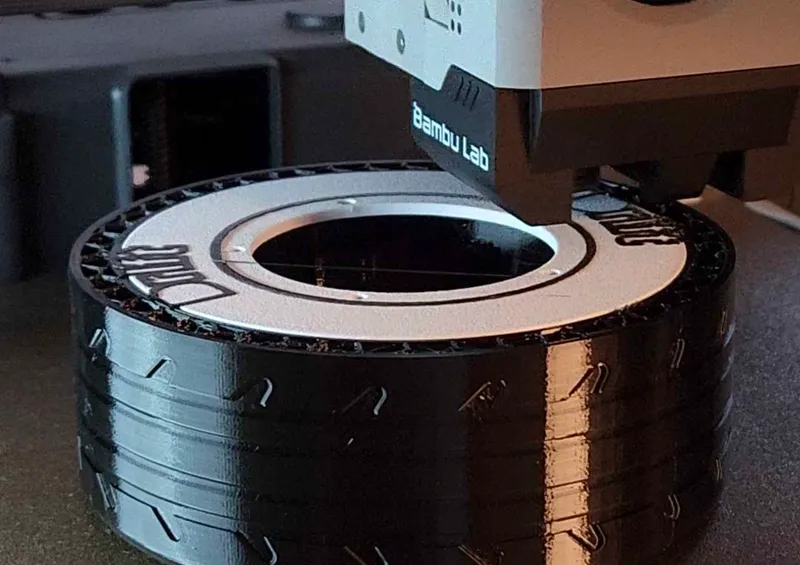

Here's two pictures showing how to do that.

    3. Supportes

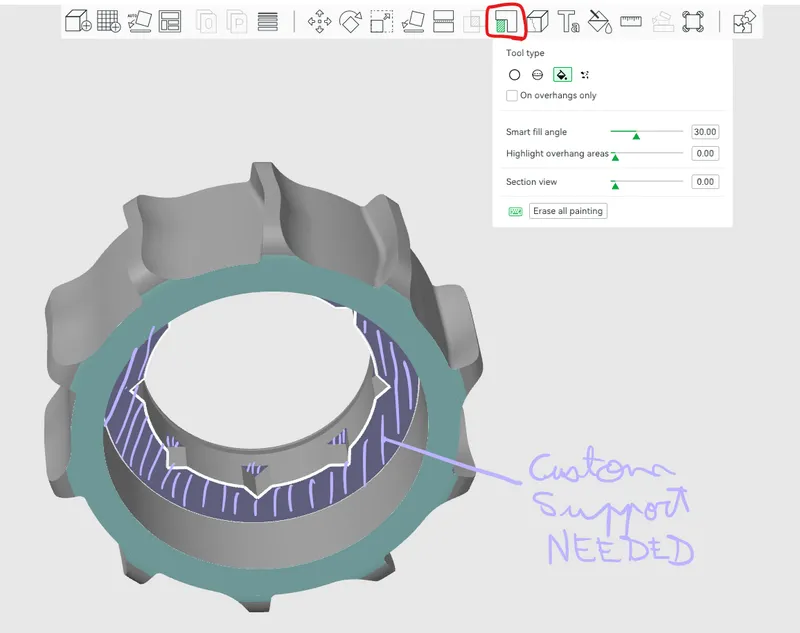

For the Supports, you will have to do “custom supported” and paint where you want them. You can have them anywhere but MAKE SURE that they don't fill the Insert TireHolder Place.

Here's how painted them.

    4. WARRING

*** I Fit Printed does tire, everything fits together, But my Traxxas Motor burned after driving to long in the sand. I don't know if it as anything to so with the tires (I think that it was more because I used a 2S on a 3S slash, so Less voltage = More Amps) so if you print this DON'T OLD ME RESPONSIBLE FOR ANY DAMAGE ON YOU CAR ***
