Autodarts Electronic Case

This case stores the following:

• Raspberry Pi 5

• PSU ( Essager 67W GaN USB Typ C, Link )

  • Here I opened it partially to expose the mains wire

• USB PD Converter ( Link )

• 2x USB-C to USB-C 10cm ( Link )

• C8 Main Voltage adapter ( Link )

• Barrel Jack ( Link … I am not 100% percent sure if that one fits the case, but I used a similar one)

• [optional] M.2 NVME Hat ( Link )

• I used M2x10 self tapping screws for mounting the Pi

• For the rest I used M3 Screws in combination with Square Nuts ( 5.5mm x 5.5mm )

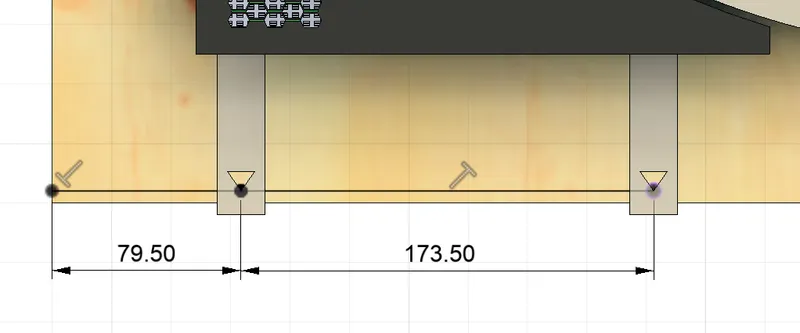

if you are using an 800mm x 800mm panel for mounting these are the distances for the drill guides
