Ender 3 V3 SE Filament Runout sensor mount on bowden adapter

Designed a filament sensor mount right above the bowden adapter made by root Dsigns
5
13
0
301
updated February 19, 2025

Description

PDF

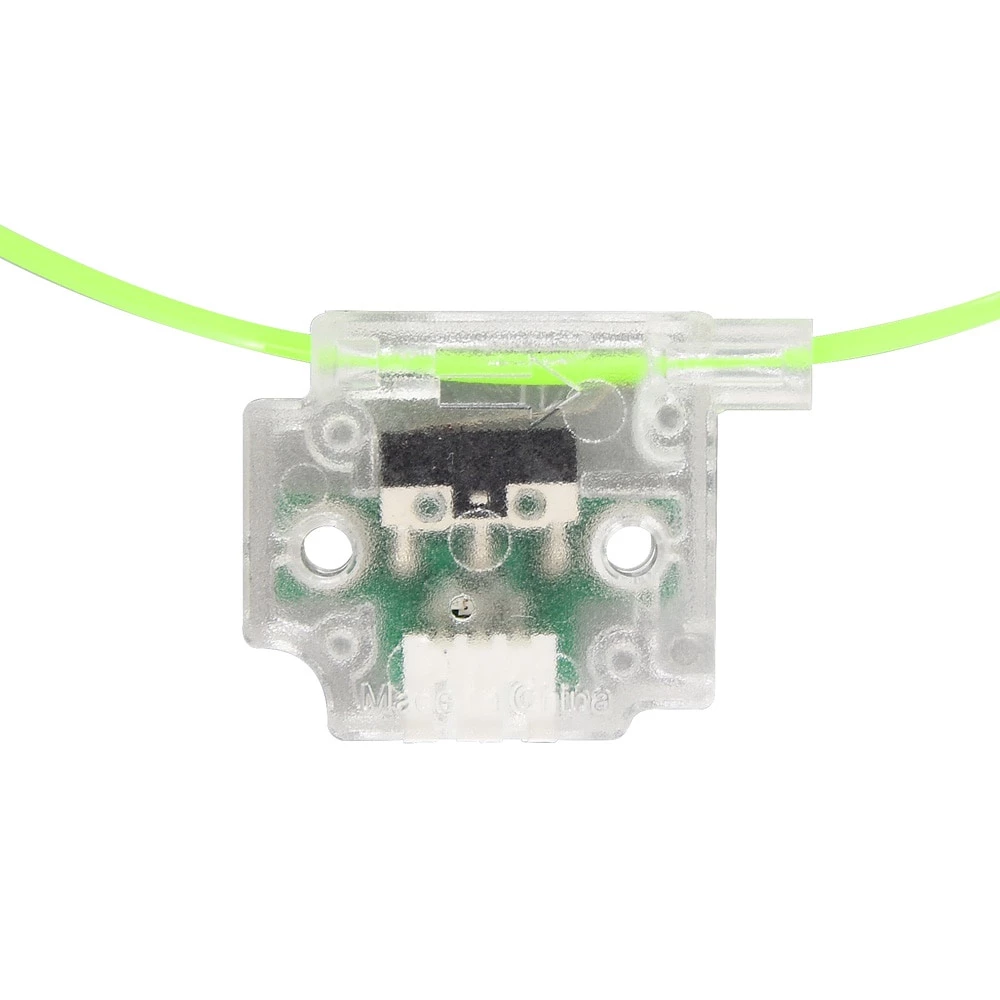

Designed a filament runout sensor mount for this kind of filament sensor: https://down-ph.img.susercontent.com/file/0936f2f013de363f3bcbdeba97100861.webp

Using this bowden mount : https://www.printables.com/model/602032-ender-3-v3-se-ender-3-se-reverse-bowden-adapter

Printed this with the included photo of orientation at .2 layer height with 2-3 walls 70% infill.

i used 2pcs m3x12(m3x10 might work as long as its longer than the stock one) screw (non countersunk) to mount to the cable clamp screw hole

2 m3x18 for the filament sensor, can screw directly to plastic, but use nuts if you must (might need to drill out the holes a bit bigger, designed it to be smaller for the screws to bite on it)
