Silicgel box (about 45g of silica gel)-v1.0

A box that can hold about 45g of silica gel
7
44
0
179
updated March 9, 2025

Description

PDF

The box can hold approximately 45g of silica gel.

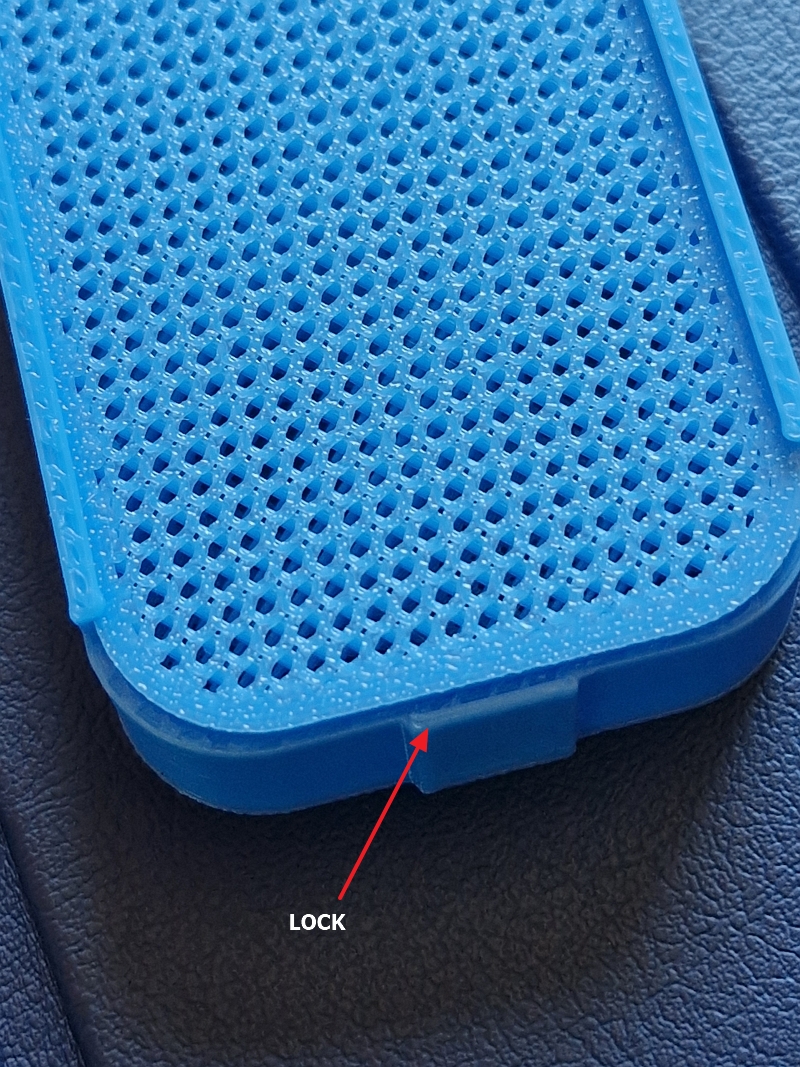

It has a locking mechanism to prevent the lid from falling off.

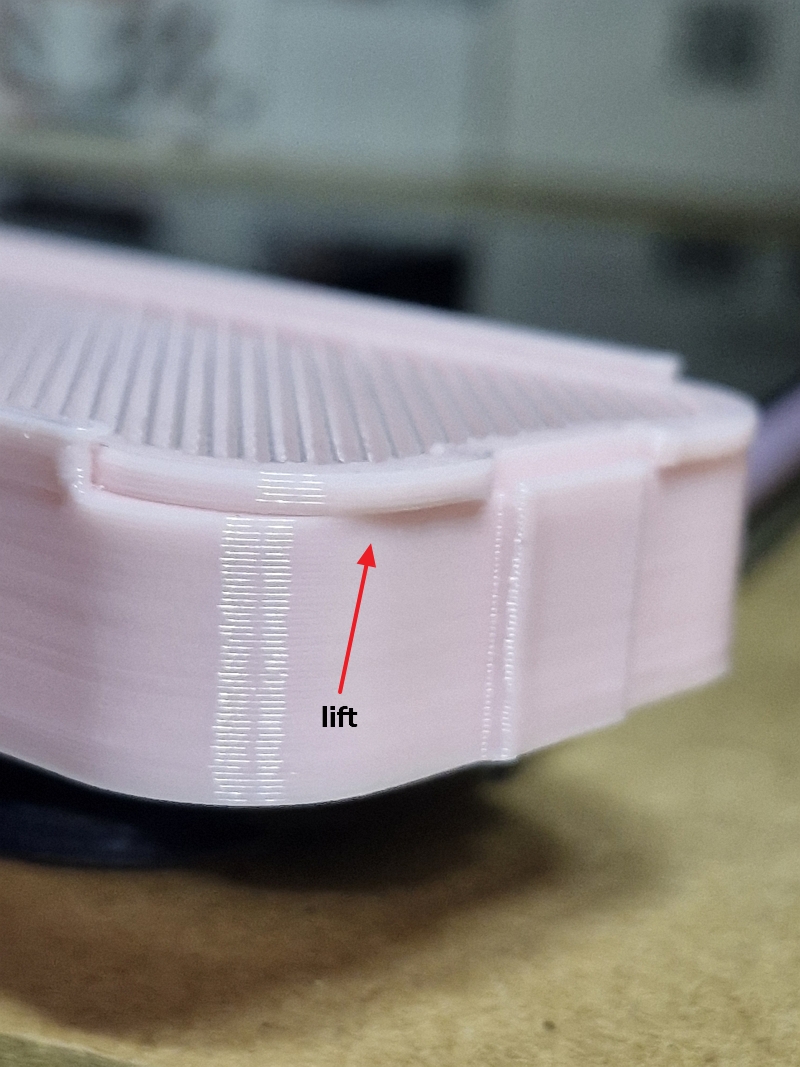

To open, a fingernail or tool is needed to lift and remove the lid.



Very important

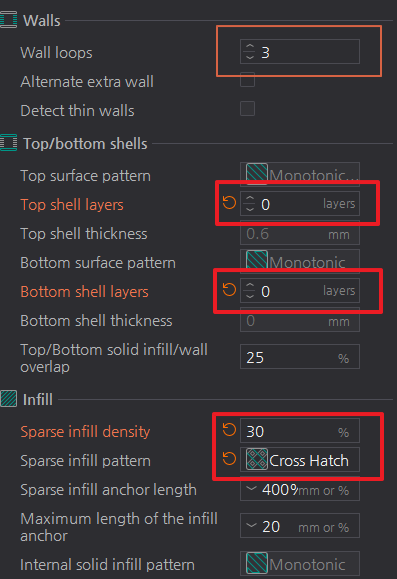

slicer setting

I printed with PETG

Wall loops: Set to 3.
Top shell layers: Must be set to 0 layers.
Bottom shell layers: Must be set to 0 layers.
Sparse infill density: Set to 30%.

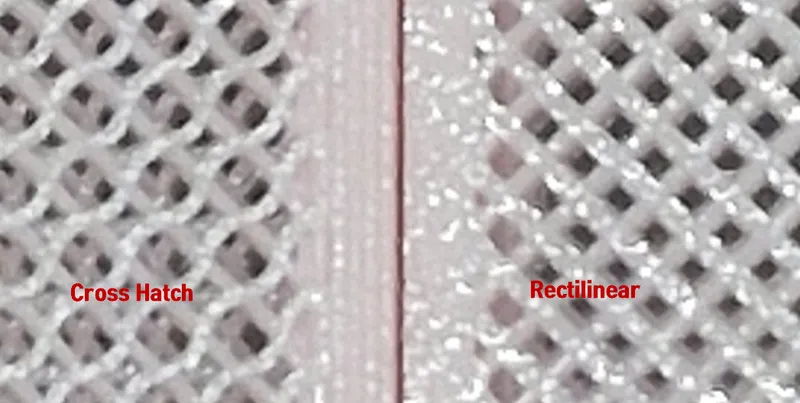

Sparse infill pattern: Cross Hatch or Rectilinear






By strictly following these red-boxed settings, you should achieve a successful and accurate print.



2025/02/24

Improved ease of opening the lid
