Raz's Speaker Stand

Raz's Speaker Stand:

Stylish and easy to print stand for desktop speakers, with multiple platform options, cavity for adding weight and multiple hardware options.

Part of Raz's Desk Organizer Project

##################################################################

Shopping List

• M5 x 6 x 7mm threaded brass inserts for 3d prints (6 per stand)
• M5 x 12mm countersunk screws (6 per stand)
• Super Glue
• Non Slip Laptop Feet (4 per stand)

Tools

• Soldering Iron For pressing in brass inserts
• Hex Screw driver or allen wrench
• Tweezers

##################################################################

Materials and Printing

For mine i used PLA with 0.20mm layer, 15% infill, and height fuzzy skin. It holds my Kanto Yu4's without flexing, they are decently heavy but for anything bigger or heavier i would probably print with PETG, or maybe more infill.

##################################################################

Assembly Instructions

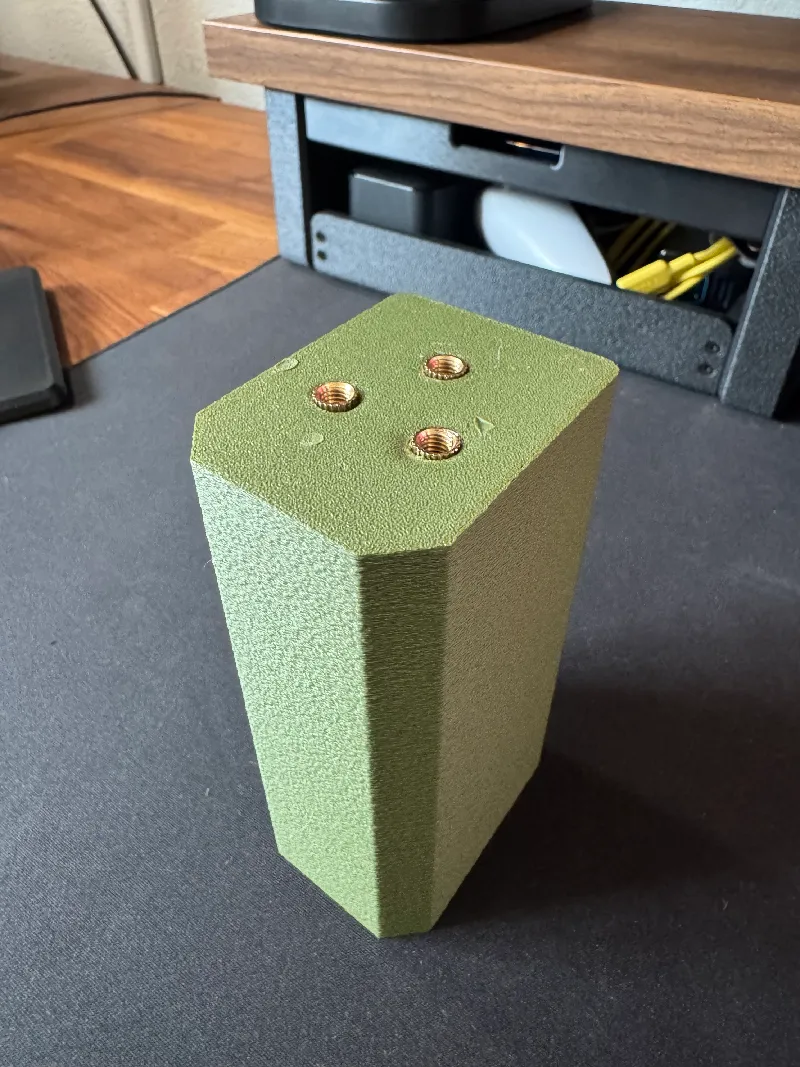

Use Soldering iron to press threaded inserts into top and bottom of the stand riser.

Tip: use tweezers to hold the insert steady while it warms up and melts plastic

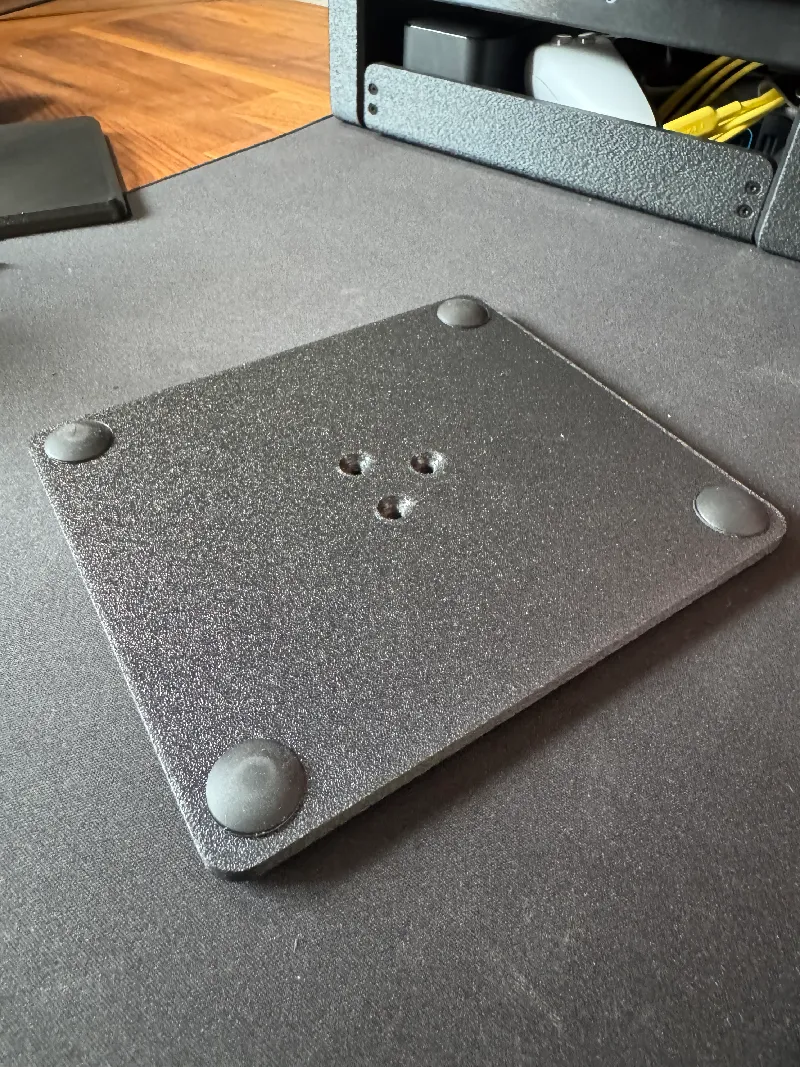

Place laptop feet on the bottom of base plate

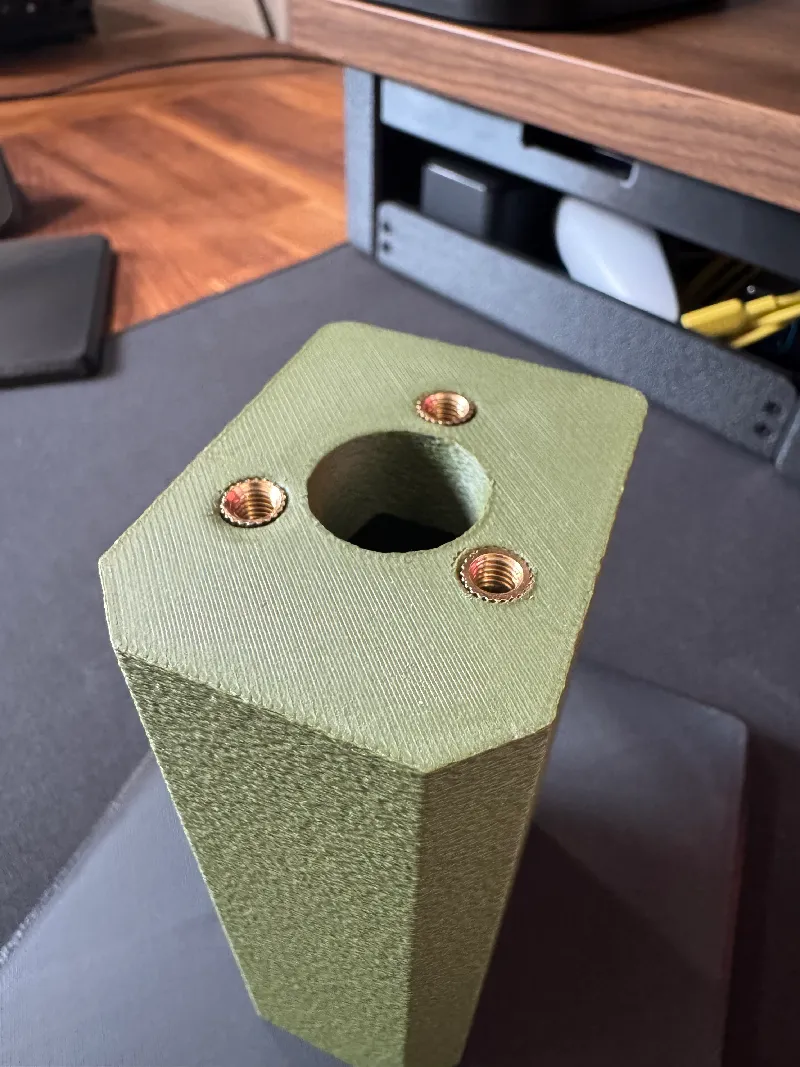

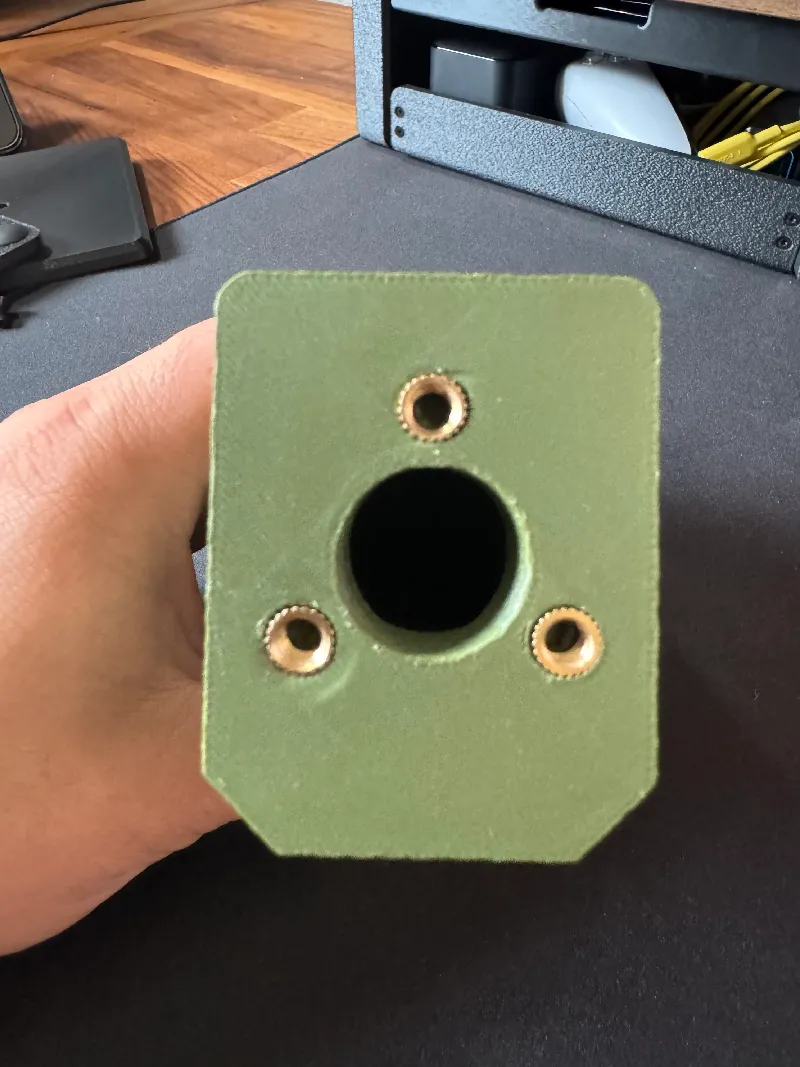

Fill cavity in riser with sand, plaster, bearings, anything you want to add weight, this part is optional, but may be useful for smaller lighter speakers.

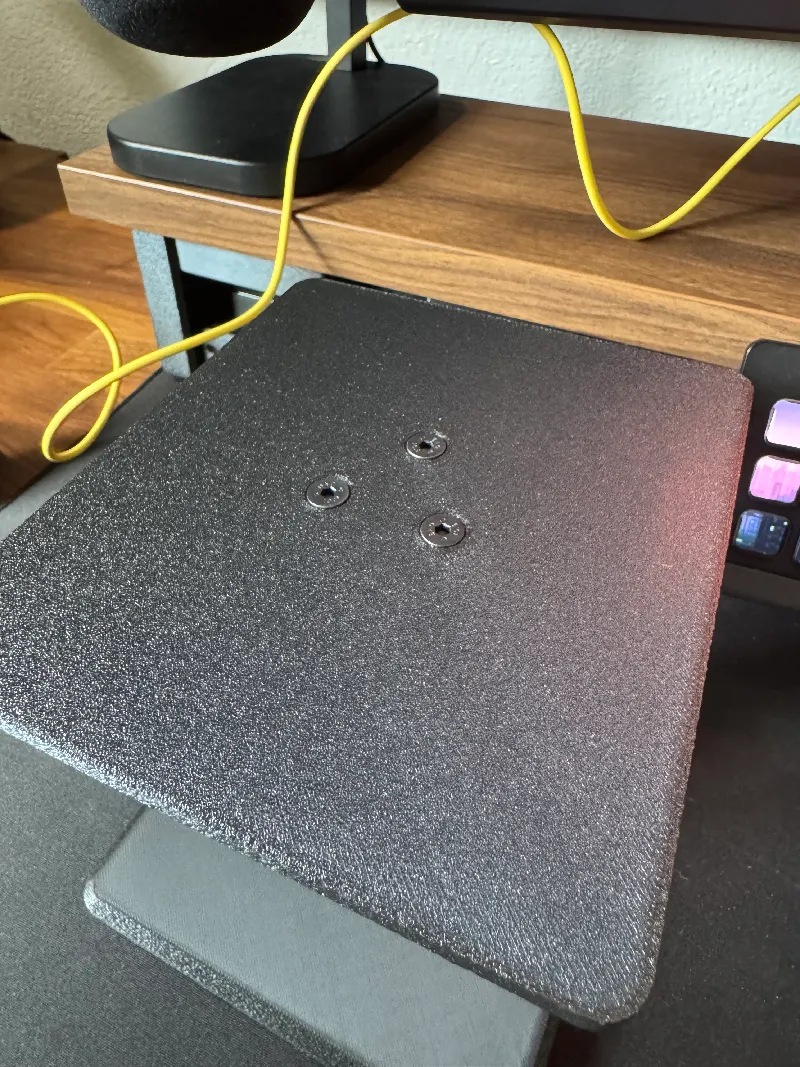

Screw the top plate in place

Screw the bottom plate in place

You're Done!

##################################################################

Variations

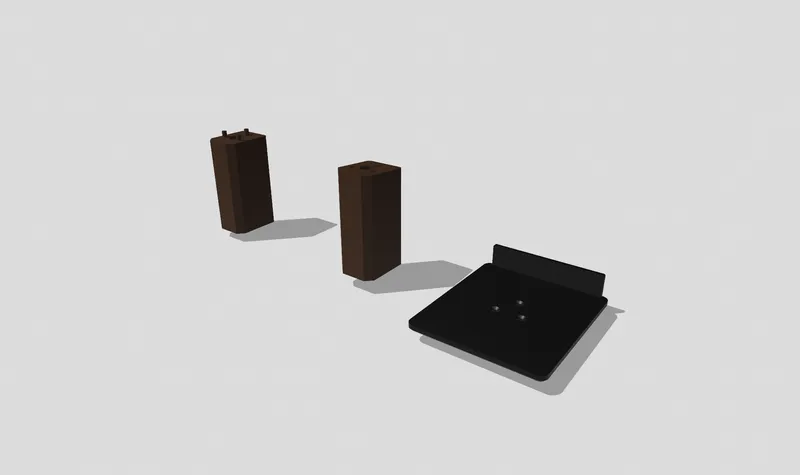

Riser Variations: Angled and Glued

Angled - has a 5 degree incline to have the speakers pointing slightly up, available in two different sizes. Regular and Large(for larger speakers)

Glued - This is an untested variant i made for people who don't want to use inserts or any kind of hardware. Available in angled version as well

Plate variations: Large, with Backplate

Back Plate - meant to be used in combination with the angled riser, to prevent speaker from falling back.

Large -  Large base and top plates for the large riser variations, also has a version with backplate.

##################################################################

Integration with Raz's Desk Organizer

Currently working on a riser that attaches directly to the Desk organizer, will publish files soon.

Thanks for reading and stay tuned for updates.  Please like and share your makes!

##################################################################

UPDATES

02.18.25

added new top plates with mounting holes at 30 degree angles, allowing you to rotate the top plate without moving the bottom plate.

added two 4 new risers for mounting directly to Raz's Desktop Organizer, angled and regular versions.
