Prusa Mini VOC/Carbon Filter Attachment

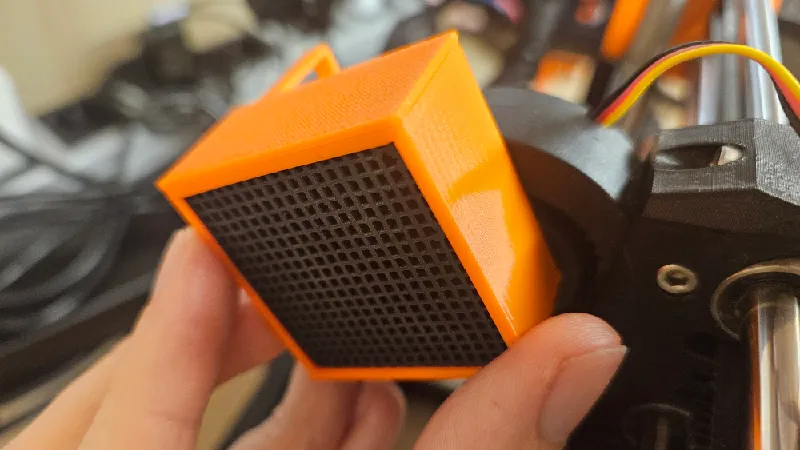

• The filter holder attaches to the blower fan on the Prusa Mini
• Noticeably reduces odors from printing by recirculating the air through the filter
  • (My printer is inside a small space, not sure about bigger rooms)
• Airflow doesn't seem to suffer (printed another filter holder with one attached and the bridges worked just as well)

Parts needed:

• 1 Anycubic activated carbon filter block
• 1 M3x16 screw (optional)
• The attached STLs printed

Print instructions:

• Print oriented as in the STL
• Supports only required on the build plate

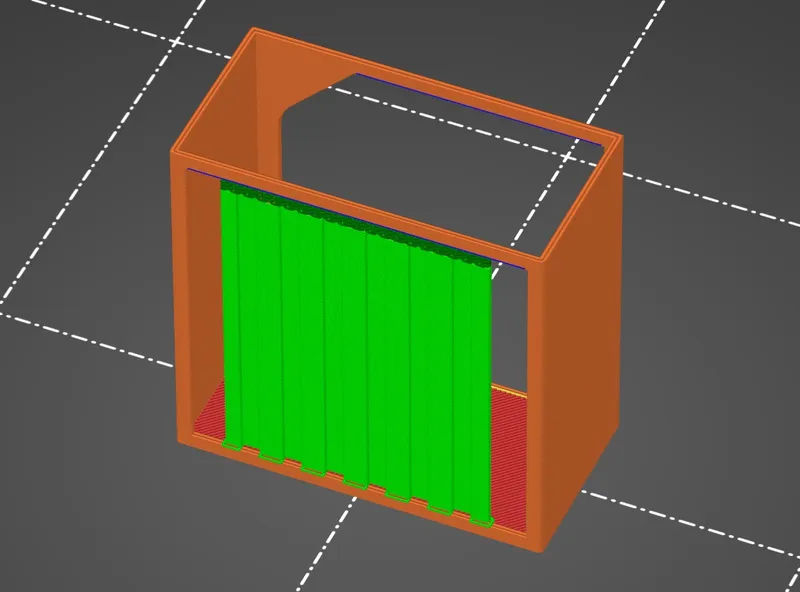

  • Bridges seem to come out better when they are oriented in line with the airflow from the part cooler
  • Optionally the front and back bridge can be supported with painted support
  •
• PETG (recommended) and PLA should be fine

Installation/Assembly:

• Slide filter into holder
• Click the top cover into place

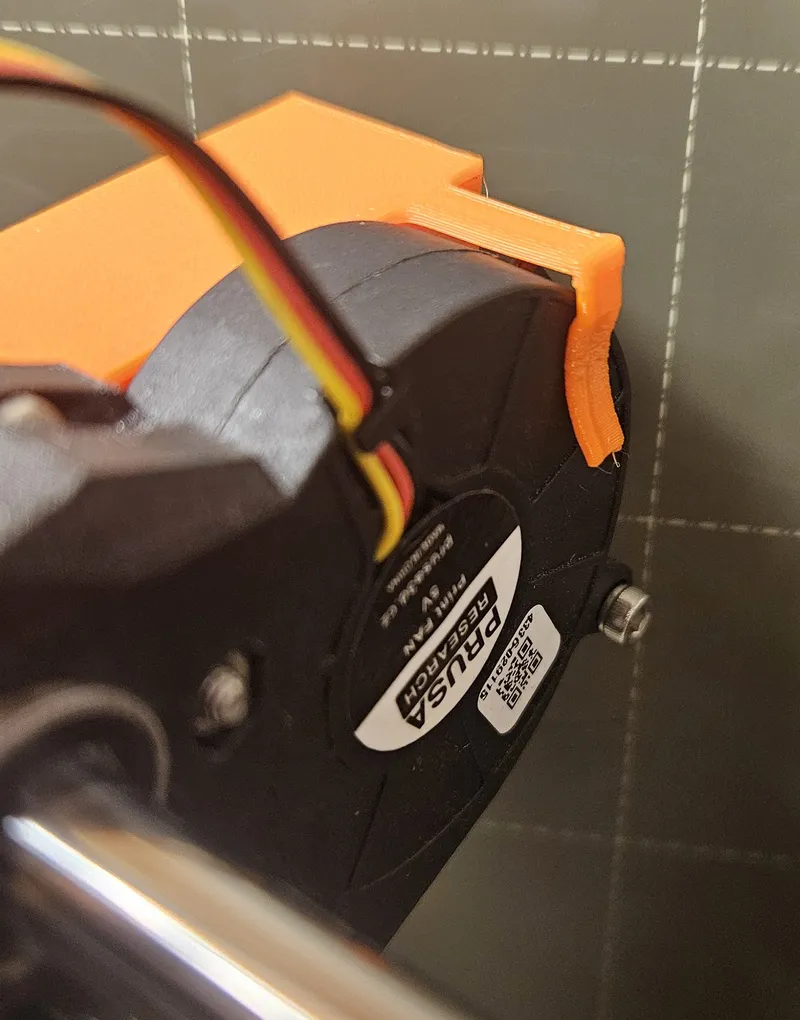

• Insert the holder rotated at 45° with the mounting peg into the empty hole on the blower fan housing

• Rotate in place and attach the optional M3 screw (hand tightening should be enough)
