4 & 5 Spool Filament Dispenser for MMU's
Description
PDFSV08 Filament Dispenser
###### Please post your Makes ######
Please like this, download and post the make if you built it
It helps us makers with feedback and gets us some Prusa meters as most people don't pay it forwardFeel free to help my projects continue https://ko-fi.com/gcodegearhead
############################################################################ Intro###########################################################################

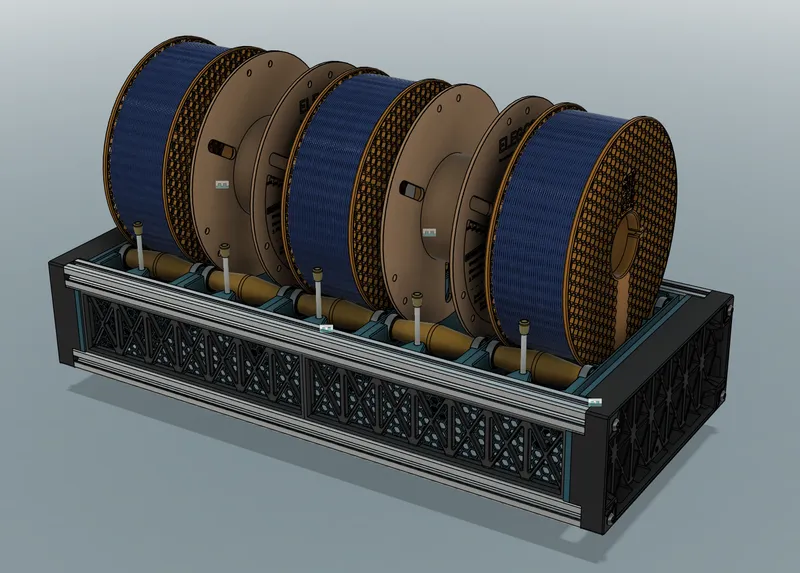

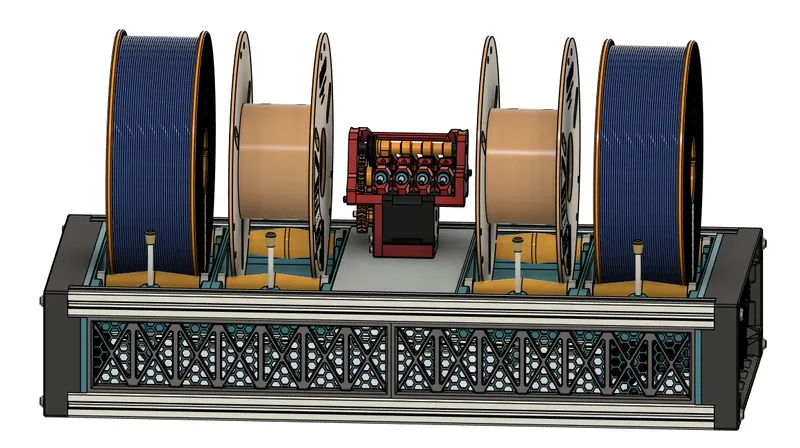

This is a modular filament dispenser for the SV08. It is designed to sit on top of the printed top hat or the standard metal frame. It is inspired by Box Turtle and some Voron design parts.
There are varying 2020 extrusions around, this design accommodates both the 6mm and 5mm inner width profiles. [See the attached pictures with highlighted dimensions and folders respectively]
All Models are oriented for printing
You can pair this with my Low Rider MMU
https://www.printables.com/model/1314513-low-rider-mmu
Match the style with my Top hat
https://www.printables.com/model/1392873-sv08-top-hat-enclosed-for-mmus
Reviewed by The Printasaurus
############################################################################ Update Log###########################################################################
| 30-AUG-2025 | V2 with Enclosure and more mounts for MMU's in testing |
| 01-JUN-2025 | Added Support for the PICO MMu   |
| 01-MAY-2025 | Added Mods for The Printasaurus and 3kg spools |
############################################################################ BOM###########################################################################

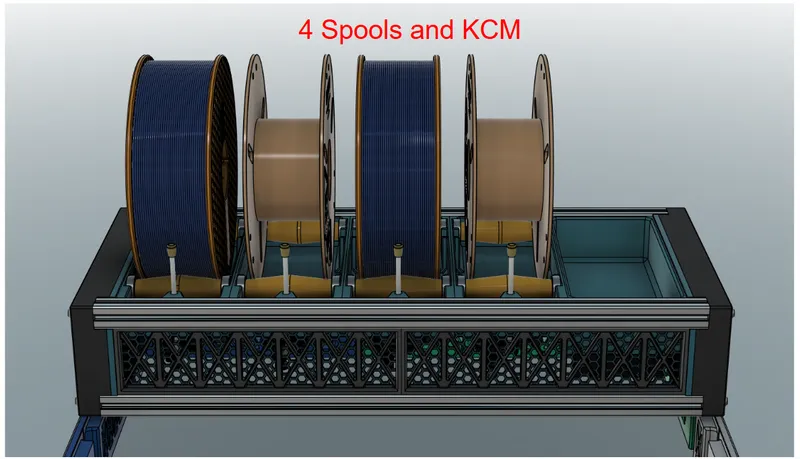

| Part | Print or Buy | 5 Filament Spools | 4 Filament Spools +KCM |
|---|---|---|---|
| 2020 Aluminum Profile | Buy | 4x500mm | |
| PTFE Tubing | User Defined | ||
| 608zz Bearings | 20 | 16 | |
| M6 x 25mm Screws for 6mm Profile M5 x 25mm Screws for 5mm Profile | 8 | ||
| M3 x 6mm Screw | 10 | 12 | |
| M3 x 25mm Screw | 2 | ||
| M3 x 20mm Screw | 4 | ||
| M3 Washer | 5 | 4 | |
| M3 Threaded Insert | 12 | 14 | |
| Panel_Front_Back_Hex | Print only one set of 4 | 4 | |
| Panel_Front_Back_SOVOL | 4 | ||
| Panel_Side_Frame | Print only one set of 2 | 2 | |
| Panel_Side_Hex | 2 | ||

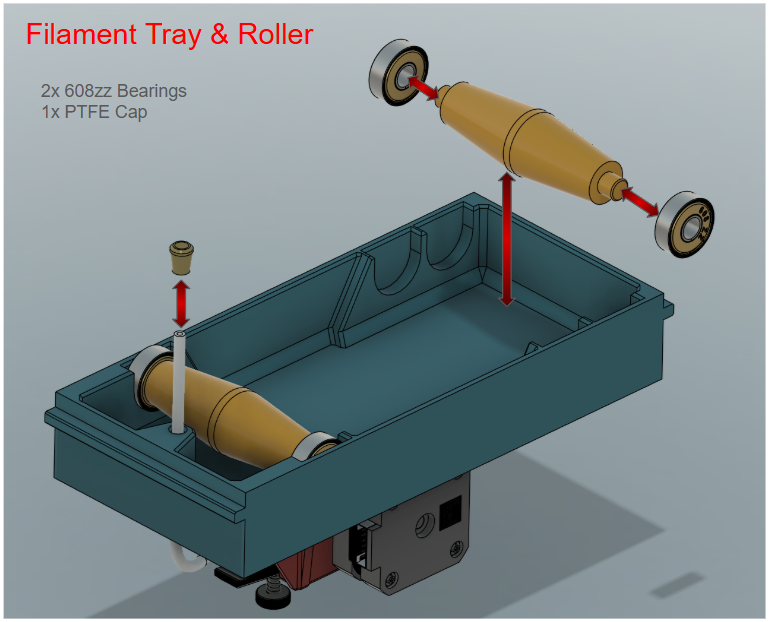

| Filament_Tray | 5 | 4 | |
| Tray | / | 1 | |

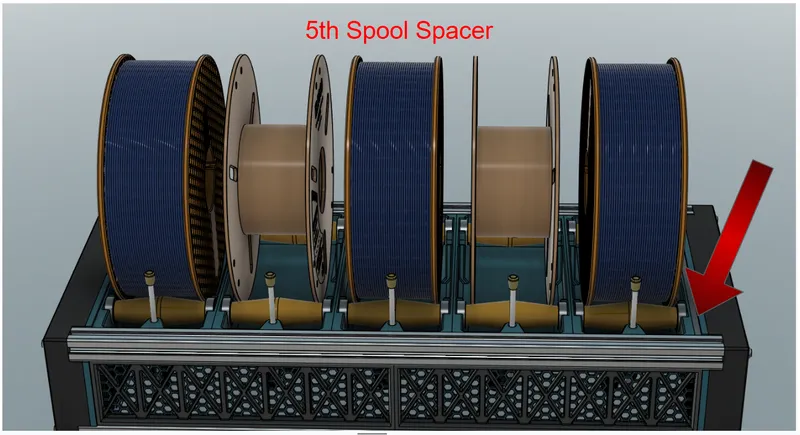

| 5th_Spool_Spacer | 1 | / | |
| Panel_LH_Side_Mounting-Bracket | 2 | 2 | |
| Panel_RH_Side_Mounting-Bracket | 2 | 2 | |
| PTFE-Cap | 5 | 4 | |
| KCM_Mount | / | 1 | |
| Filament_Roller (print the test and check fitment and then print the corresponding roller) | 10 | 8 | |

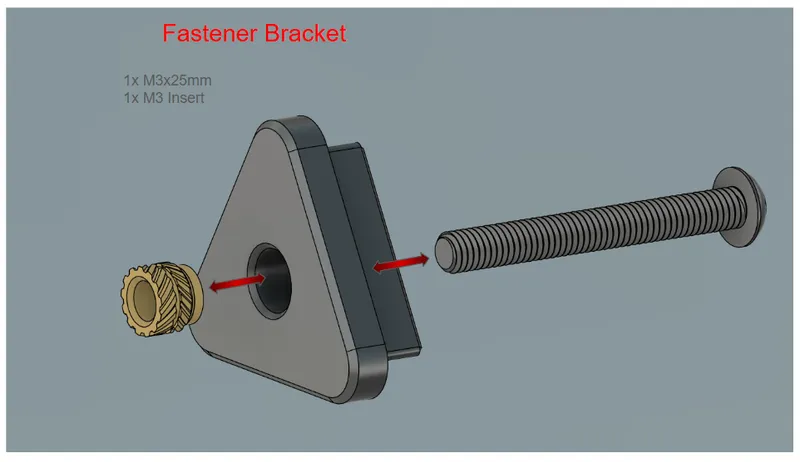

| Fastener_Bracket | 4 | 4 | |
| Extruder_Bracket_CO-Print | / | 4 | |

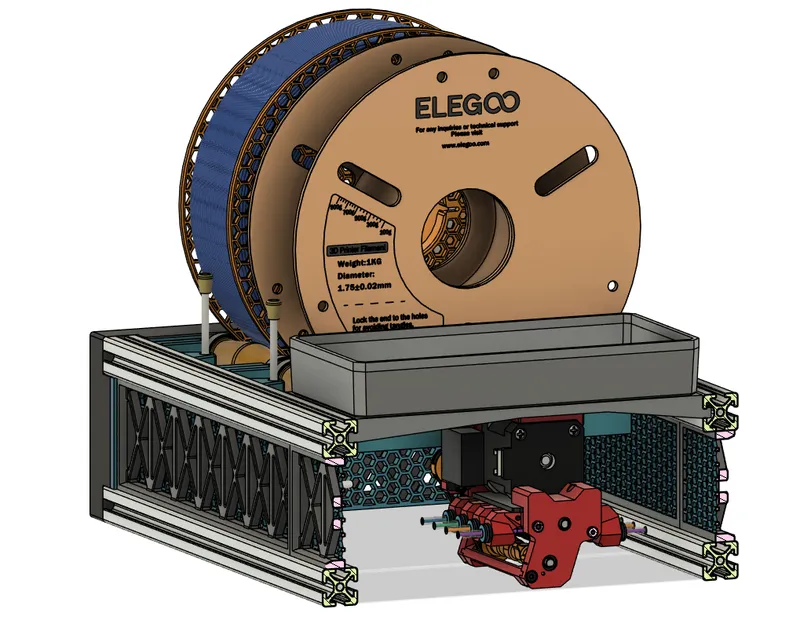

| Pico MMU Mount A & B | / | 1 | |
| Pico Tray | / | Optional | |
| M3 x 10mm Screws | Buy | / | 3 |
| M4 x 12mm Screws | Buy | / | 4 |
| M3 x OD5xH4mm Heat Inserts | Buy | / | 6 |
############################################################################ Print Settings###########################################################################
NOTE 1: Check your tolerances
NOTE 2: If you need larger tolerances message and I will gladly upload
NOTE 3: Colour swap is approx. 5mm from bed
NOTE 4: No Supports are needed except for the roller, the 4 corners of the side panels and the rail guide on the trays, provided your settings can bridge. See print settings
I have re-oriented all files to print as they load.
All trays require support on the rail guides only
Files requiring supports in the corner sections are the following
- Panel_Side_6mm
- Panel_Side_5mm
There is a Folder with test prints to check your printer tolerances, support settings and play with some colour swaps at the right layer. [Approx 5mm from Bed]

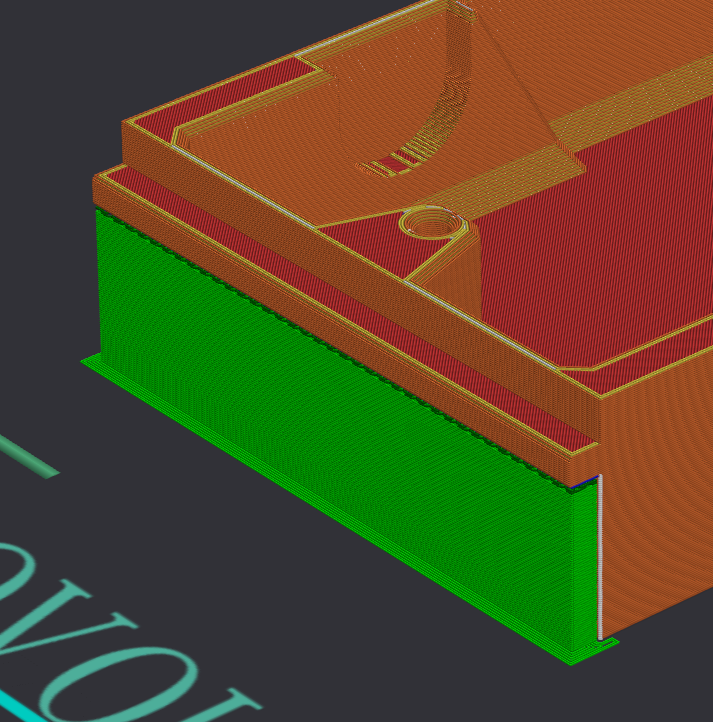

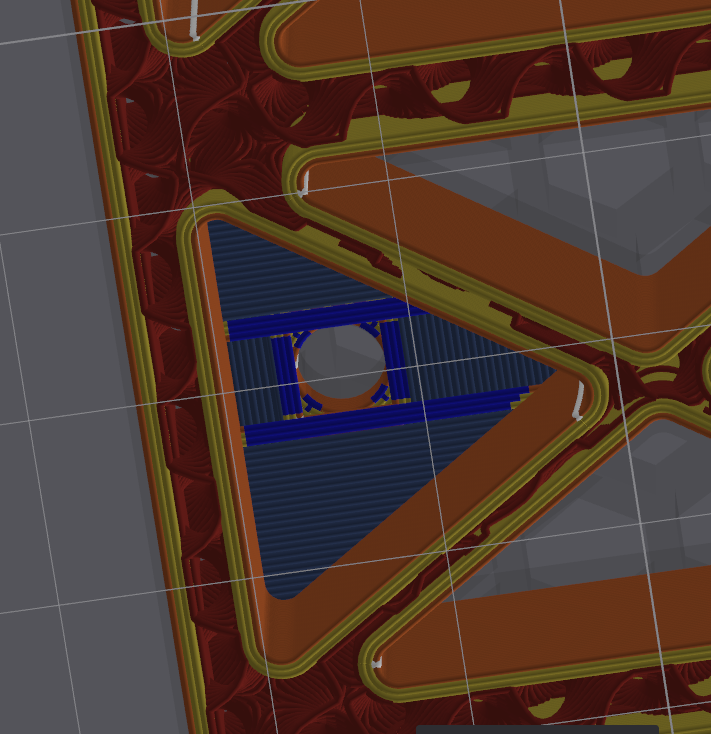

The heat insert in the Panel_Side files will print as per below with bridging. Ensure you put a support blocker here.

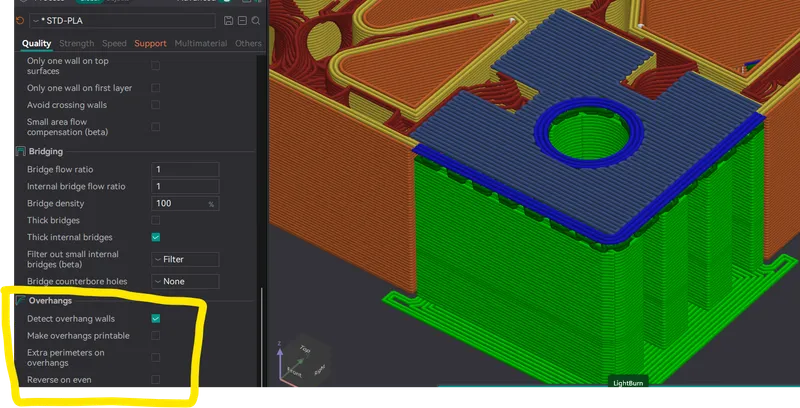

I found sometimes the overhangs setting messed around, check your bridging layer when you slice and play around with this setting on or off.
----------------------------------------------------------------------------------------------------------------
############################################################################ Assembly Top hat###########################################################################
You will need a M6 Tap to thread the inner hole of the Aluminum Profile.
General Flow
- Tap the M6 holes

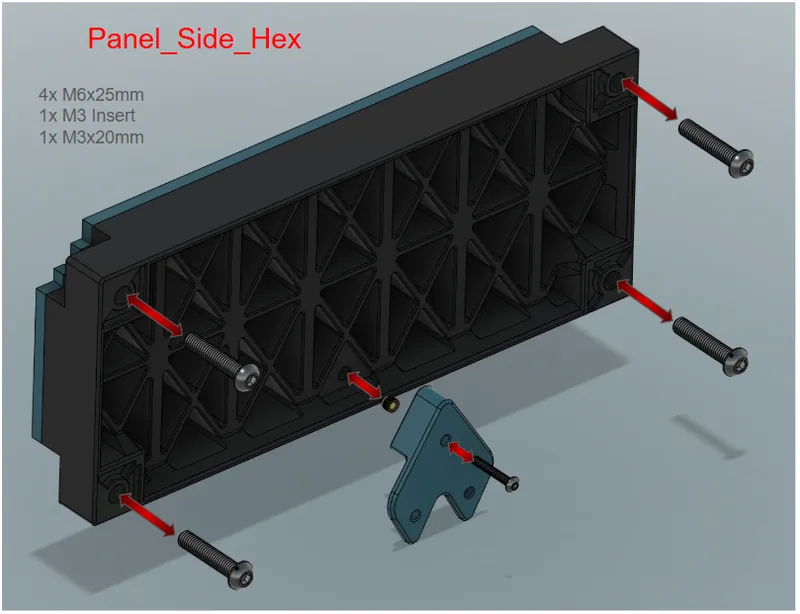

- Assemble Aluminum profiles to one side panel

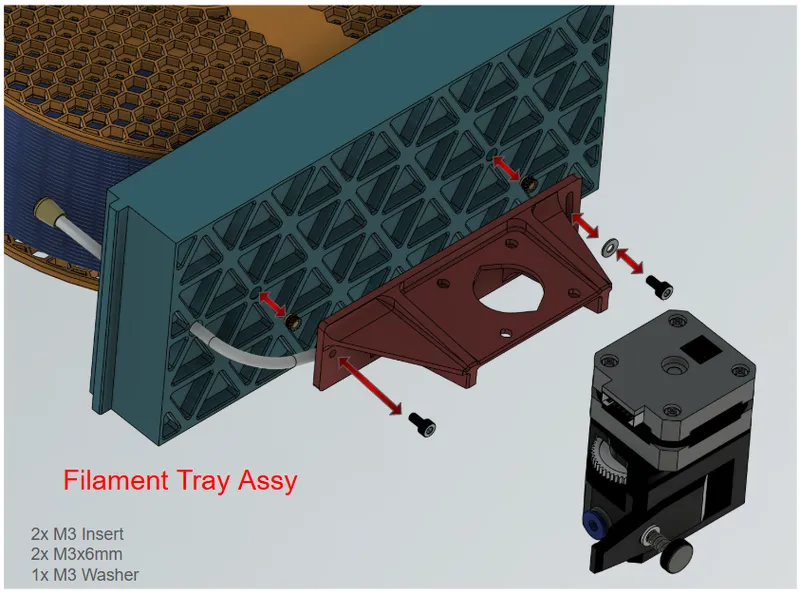

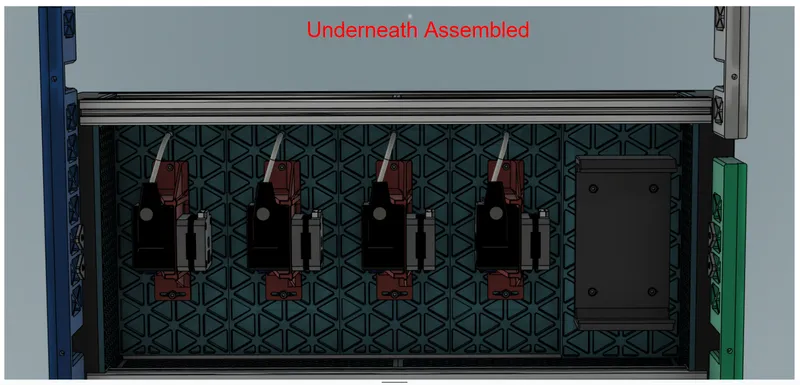

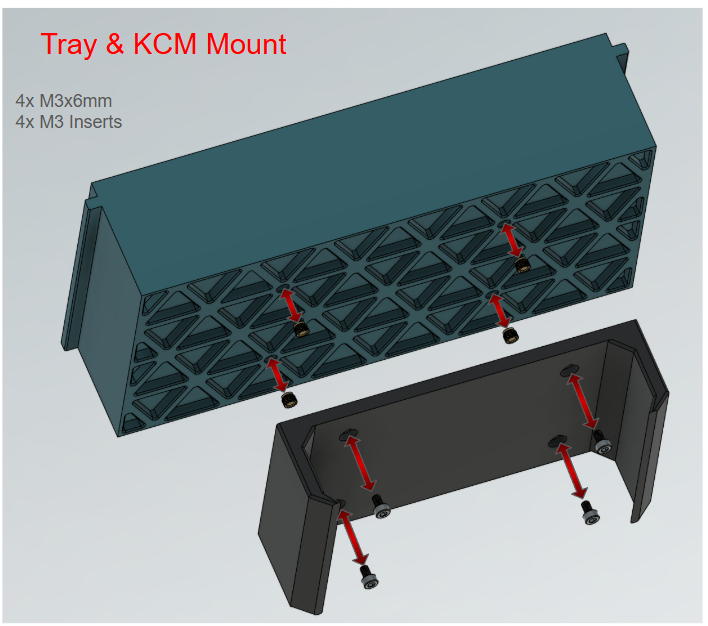

- Assemble extruder brackets and KCM mount if using CoPrint
- Insert the tray configuration you want
- Assemble the other side panel to the extrusion enclosing the trays

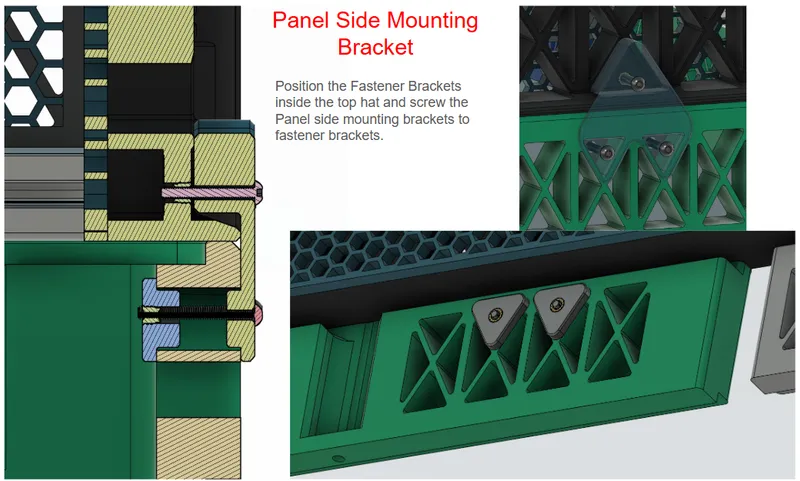

- Use the Mounting brackets to fasten to the top hat

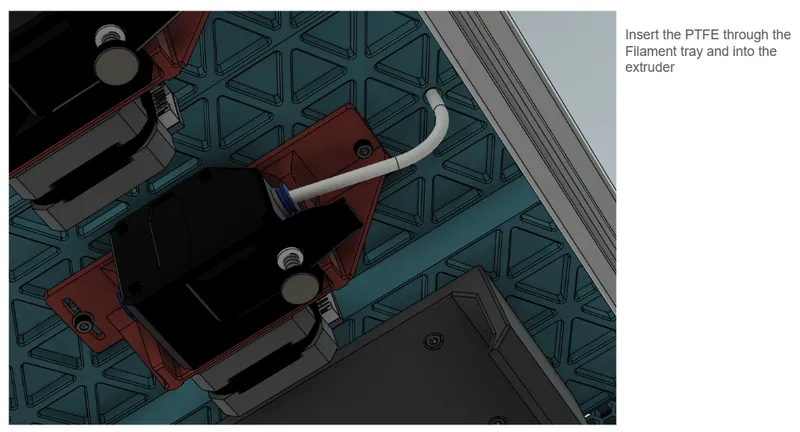

- Insert the PTFE tubing for the extruder side if needed
- Insert PTFE from extruder to print head.
- Note the rear panel holes are large enough to push the PTFE through wherever you want. I have not constrained it to a single panel or outlet.

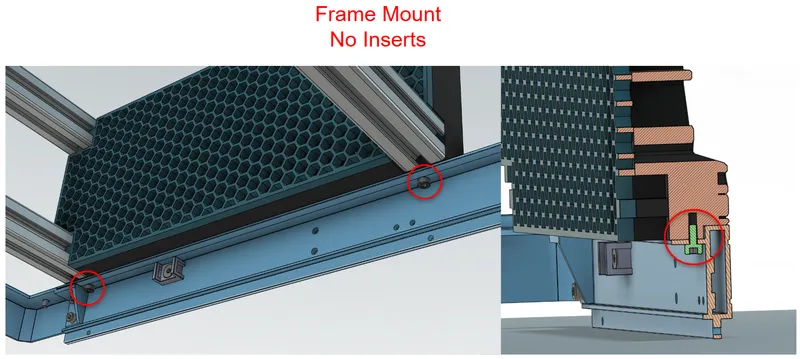

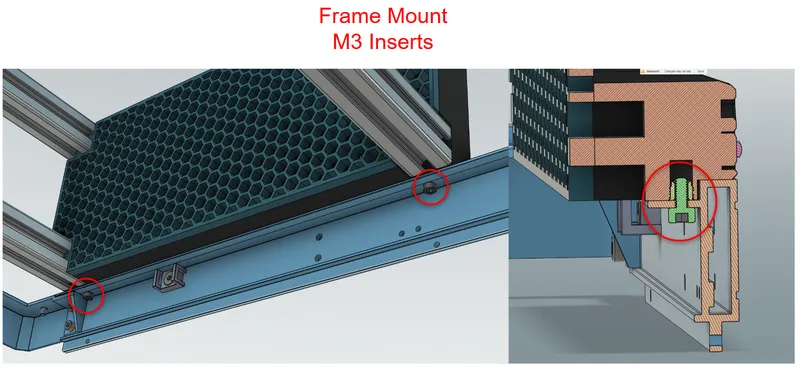

############################################################################ Assembly Frame Mount###########################################################################
############################################################################ Final Notes###########################################################################
What is still on the to do list
- Enclosure for humidity control (side panels change, rest is same)
Feel free to help my projects continue https://ko-fi.com/gcodegearhead
Enjoy, and as always post anything I have missed in comments or messages and I'll fix them.
