Nozzle as a nozzle holder for your nozzles (Parametric)

I made this 6:1 scale model of the nozzle to hold my spare nozzles for my Ender-3 V3 SE, (Also Ender-5 S1, Ender-7 and anyone with the Spider 1.0 hotend Kit). The model is made as closely as possible to the original with a few tweaks to be the best holder for your nozzles!

Features!

• It has all the sizes, including but not limited to 0.2, 0,3, 0.4, 0.5, 0.6, 0.8, 1.0 and so on (Use the Fusion360 file or just ask for specific size if not listed)
• There is even a model without the debossed text
• Stores 7 nozzles, just enough to fit the usual refill size
• Easy going screw cap to keep your nozzles safe
• Perfectly balanced, can be stored upright or on its side
• The lid has just enough room to store your nozzles, they wont fall out and mix, even when stored on its side

Parametric

Do you have a one of a kind nozzle at 0.42mm, or did I forget your go-to nozzle size, fear not!

Just load up the included .f3d file in Autodesk Fusion 360, you only need to change one parameter for the upper part to adjust according to your needs, BUT you might need a plugin for the parametric text to work.

ParametricText plugin

Search the web for “fusion 360 parametric text”, follow along with the installation.

Parameters

You find the parameters in the “Modify” dropdown in the toolbar, then select “Change parameter” in the bottom. Then change the value in the “Expression” column, click “OK” and the model updates after a few seconds, export a new .stl file and happy printing

How to print

The lower part is interchangeable between the upper parts.

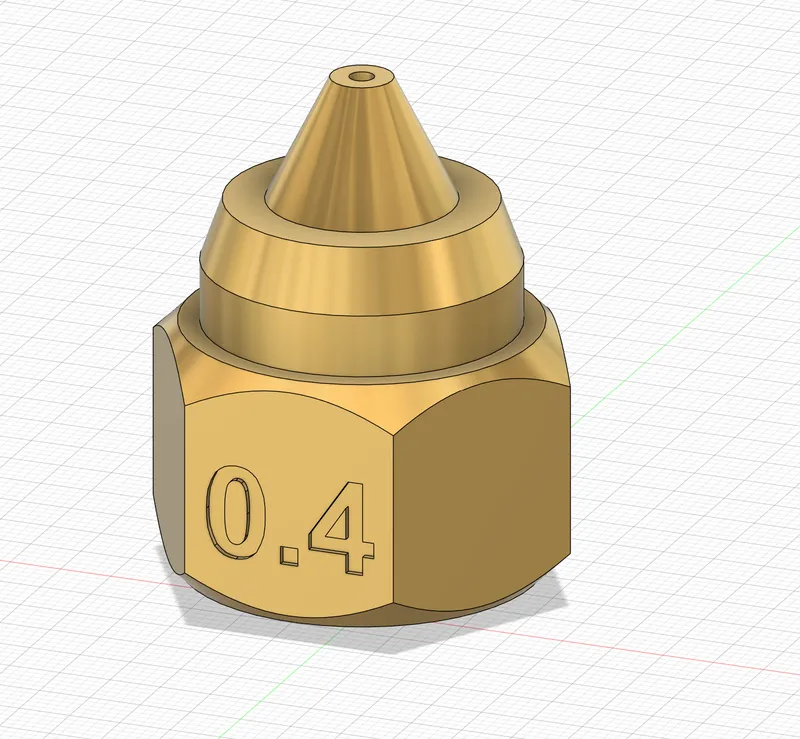

The upper part has the nozzle size debossed on three sides of the hex nut, the opening in the nozzle is also changed according to the size. Pick the fitting .stl for your specific size, or look above for how to customize it.

Print settings

Model is optimized for printing, so no need for supports or brims.
