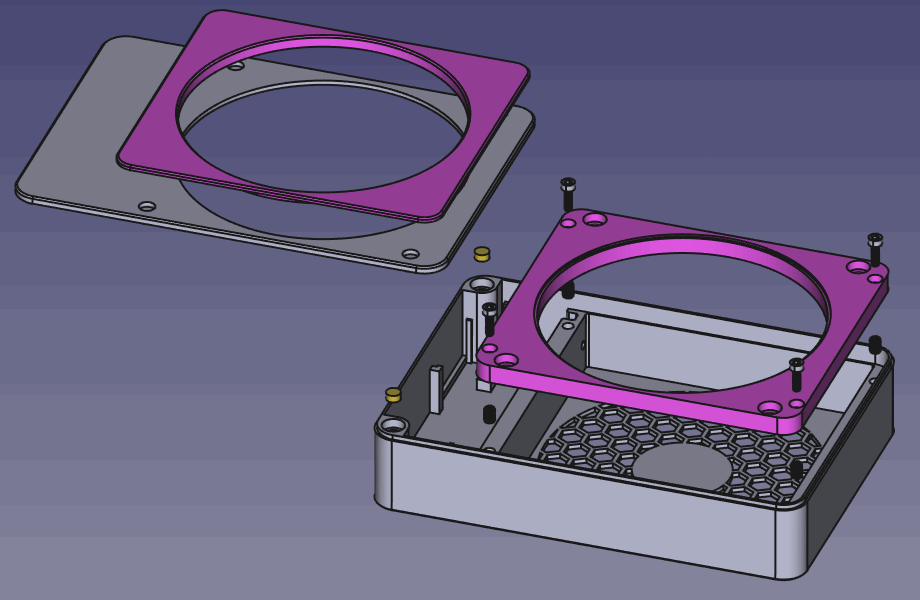

Solder Fume Extractor 120/25mm (FreeCAD)

(underside magnets not animated)

Remix of Vinark's thoughtful and clever design for 120/25mm fan.

Electronic components, wiring and bolt sizing are identical to Vinark's model; see their page.

Parametric for 80/15mm or 120/25mm fans; see FreeCAD file.

This model updates based on choice of fan diameter 80 or 120mm. For anything else manual adjustments will be needed ie fan center diameter, fan depth.

‘horizontal_spacer’ can be used to add space in the electronics compartment.

Measure your fan width/diameter against the model. Tolerances are snug. Any warping will also negatively affect fitment.

Accepts 15x10mm rocker switch (14x9mm opening). Adjust as needed.

I chose PLA and 0.2 layer height, standard settings.

If curious inserts used were brass tapping 3mm x 0.5 thread size, 5.94 length

Future considerations:

• 140mm fan option
• carbon filter Insert options
• likely “flipping” issues during parameter change

120/25mm option (140mm TBD)

Front Decor adjustments (glue solution, extrusion to mask lid gap, magnet dimensioning)

Lid option without Front Decor

Magnets are not hidden (spent too much time getting this wrong!)

Added material to cradle battery holder for larger fan sizes
