Handle for Original Airpot Superroot Grow Tent

print parts with 3 perimeter, 30%grid & 0,25 layer height or use 3mf


what u need (two handles):

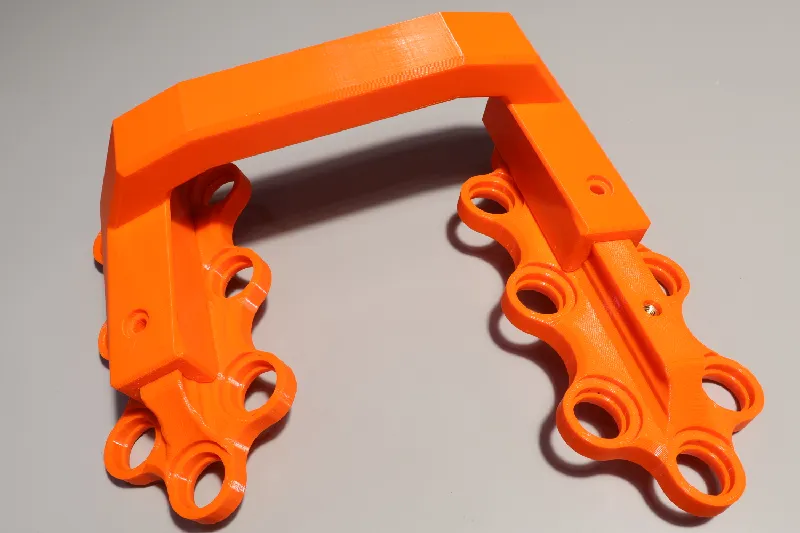

printed parts: 2xHANDLE (MorL)/4xHANDLE_MOUNT/16xSCREW_v2

4x screw M4x12mm or longer
16x screw M3x12 or longer, max: 20mm
4x M4x6mm heat insert


u can find the SCREW_v2  >> HERE <<

how to assemble:


-attach M3 screws to SCREW_v2

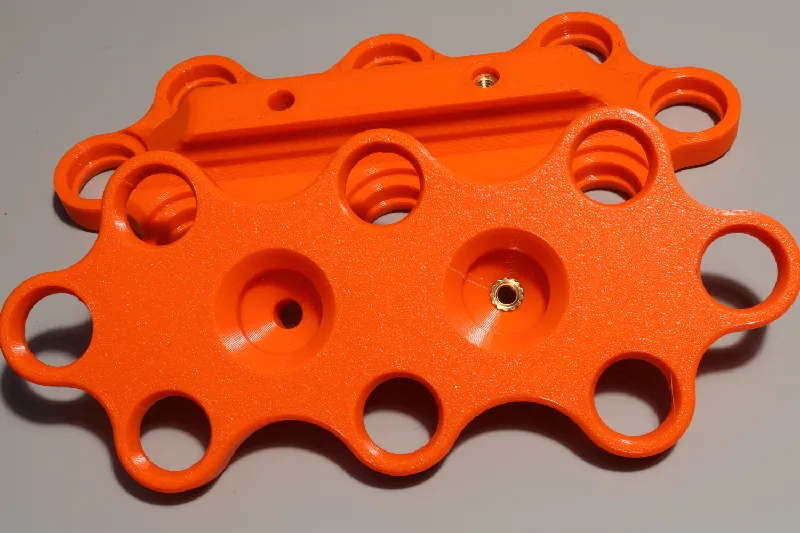

- melt in nuts (from the back side), one per plate. attach handle

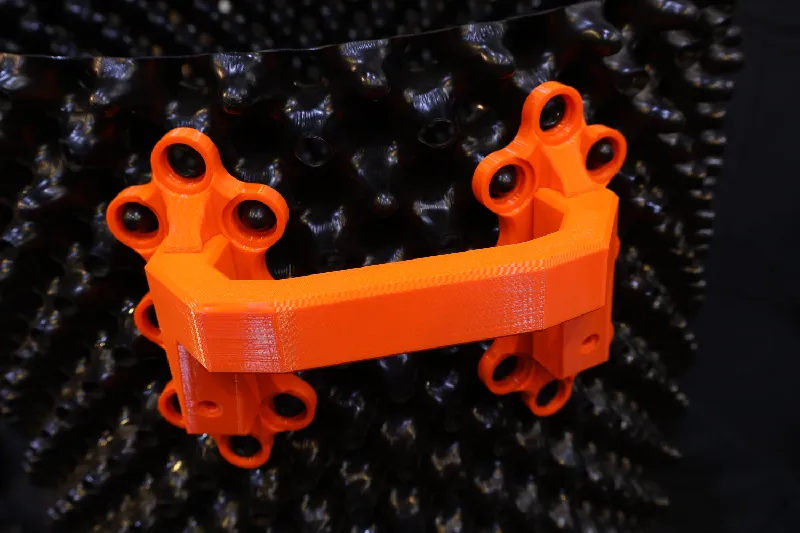

- find a good position on your airpot to place the handle, after placing it remove the handle

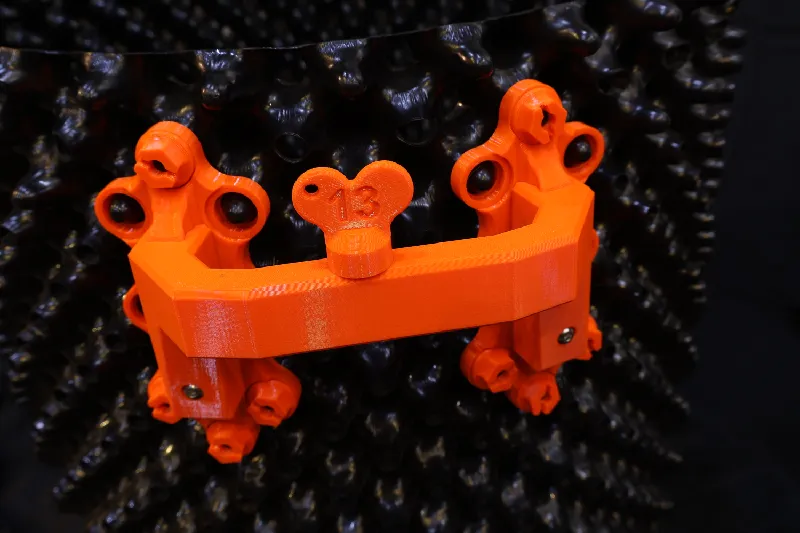

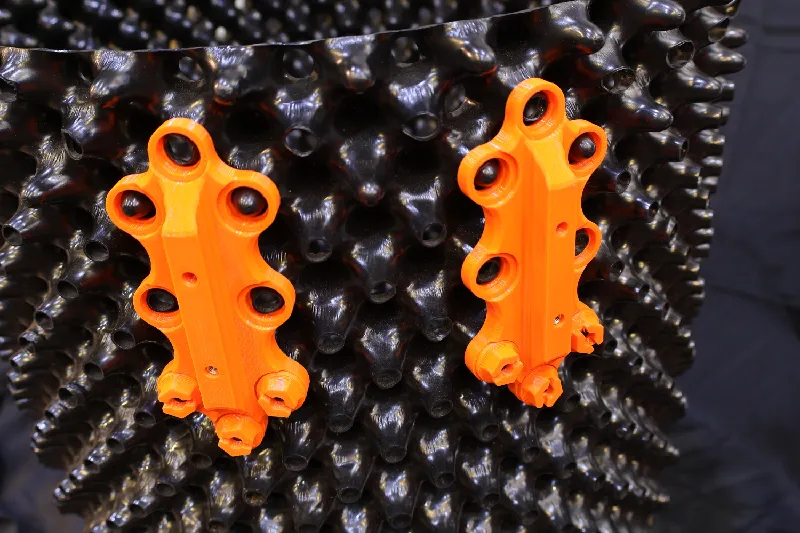

- attach 3 SCREW_v2 (with inserted M3 screw ! ) to the 3 bottom holes on each side. use a coin or NUT_13 from >>here<<
- ensure the melt nuts are on the bottom holes of HANDLE_MOUNT

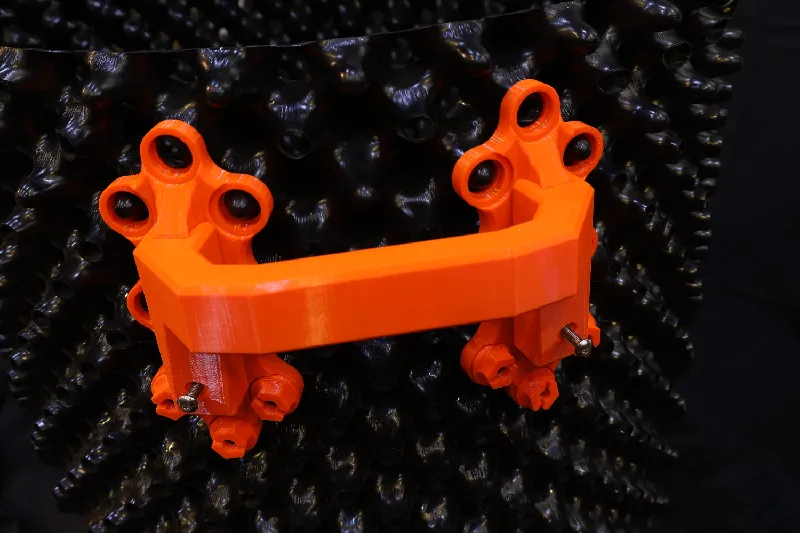

- attach handle , lock it with a M4 screw and one SCREW_v2 for each side in the top hole

You are ready to go!



I hope you will enjoy it & stay green !
