Prusa Enclosure Corner Camera Arm for Reolink E1 Zoom connector

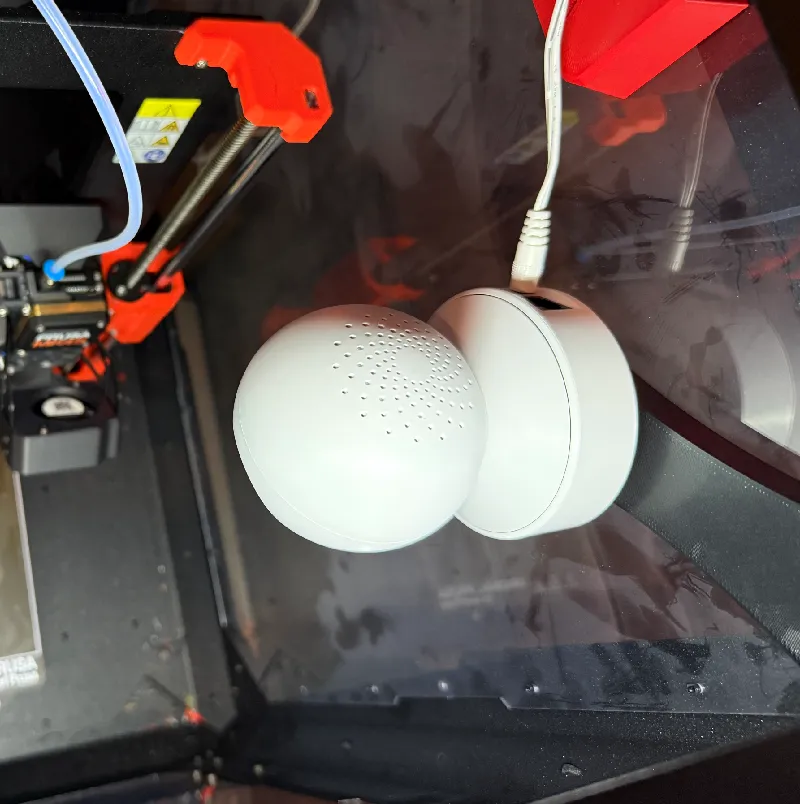

A camera arm designed for mounting the Reolink E1 Zoom security camera in the corner of the Prusa enclosure.

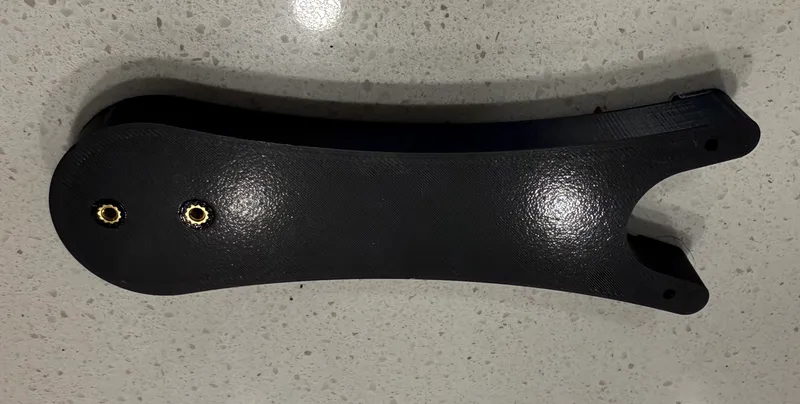

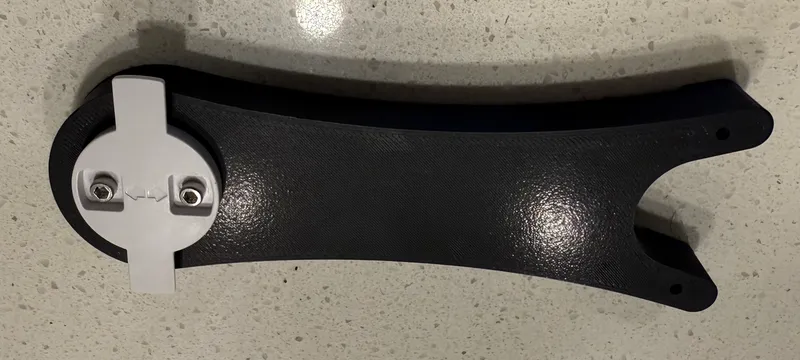

I used (2) M3x6x5 heat inserts and (2) M3x6 Hex Socket Head Cap screws to attach the base plate for the camera to the arm.

e.g.

• https://www.amazon.com/Mardatt-Threaded-Inserts-Printing-Embedment/dp/B08ZHJPK52
• https://www.amazon.com/Socket-Screws-Bolts-Thread-100pcs/dp/B07CMRQ3TB

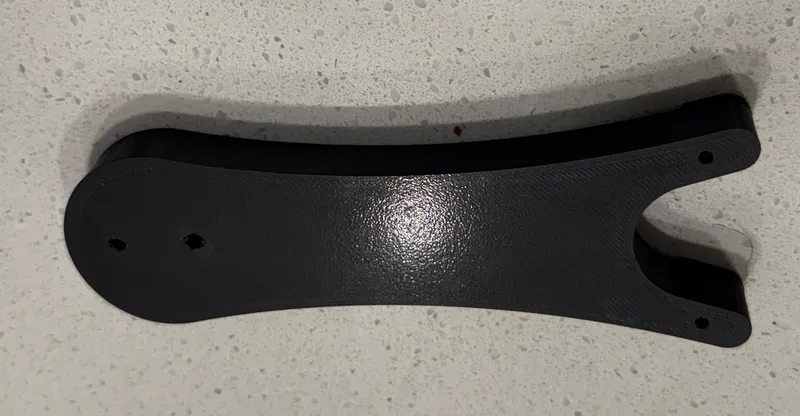

NOTE: The prusa-enclosure-corner-camera-arm-e1-zoom_PROJECT.3mf file has settings for PrusaSlicer already setup that use 100% infill around the screw holes for much better stability and grip. If you start with any of the other files, I would recommend either increasing the perimeters to something like 4, or using a modifier to increase the unfill to 100% for a few millimeters around the screw holes. You might find this article about Heat-Set Inserts interesting, I know that I did. https://hackaday.com/2019/02/28/threading-3d-printed-parts-how-to-use-heat-set-inserts


MAKERS: Please post a picture with comments here of any prints/makes you do from this model so that I can see how people are using it and whether you are finding success with it. Thanks!


This remix takes the original spool holder and my ¼"-20 UNC camera mount version and adapts it into a camera mount for the Reolink E1 Zoom.
