Satyr 3 (DIY HiFi Headphones)

Designed by a Professional


What makes this headphone Hi-Fi? SCIENCE! I spent quite a while finding the optimum combination of tuning materials and geometry to bring you the Satyr 3. This design beats out all of its competition in the category of DIY headphones and even beats out a lot of mainstream headphones too! So long as you use all of the correct materials in the BOM and follow the instructions in assembly you'll have a headphone that competes with and beats out other headphones in the $500 range. Dont trust the DIY competition when they say you can use any old speakers and earpads and you'll get a decent headphone, this is a science and you need to be precise to get actually good results. Join the discord community and be apart of something bigger!

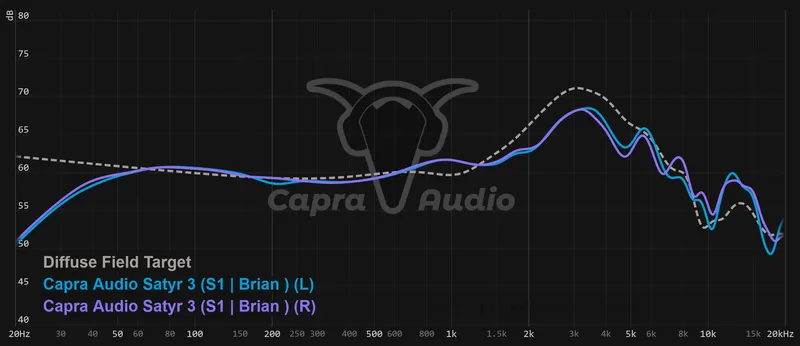

Frequency Response Graph using an IEC711 GRAS Clone Measurement Rig
Compare against other headphones on squig.link

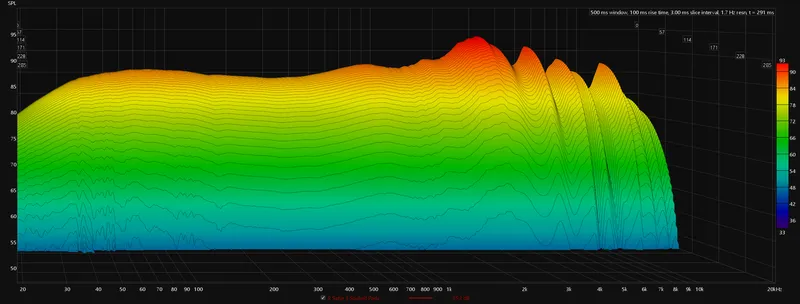

Waterfall Graph

(waterfall graphs don't actually tell you much of anything when it comes to headphones it just looks cool)

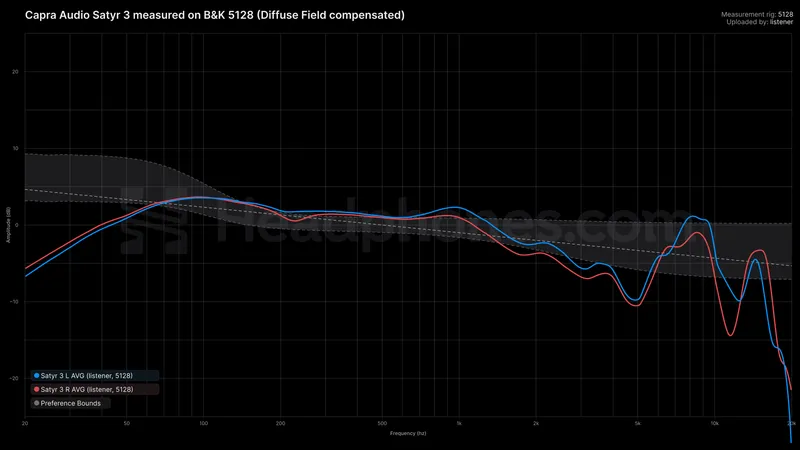

5128 Measurements!


Headband Files: V3 Capra Headband

BOM:

Cut the Dekoni foam (black not-shiny) into a 52mm circle (just bigger than the driver) with a 10mm hole in the center (enough to not block the center hole on the driver) and place it behind the driver before inserting it into the chassis.
