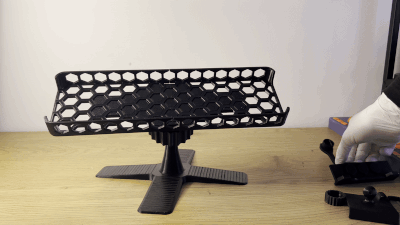

Hercules DJControl Mix stand on ball joints

Update 12.02.2025:

• reinforced main arm added (phone holder)

Update 26.02.2025:

• Basket holder - thread length increased

Update 27.02.2025:

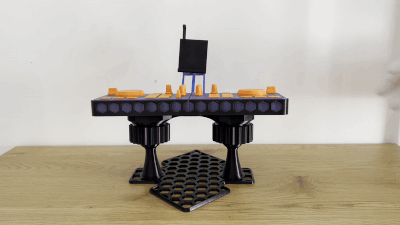

• Dual-joint variant added. Much more rigid:

Update 02.03.2025:

• Dual joint base - reuploaded with more rigid one

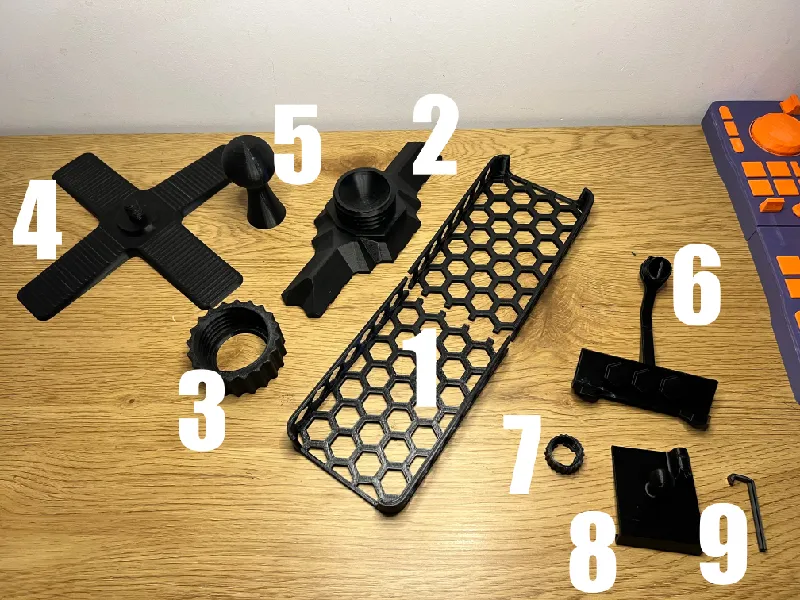

Model consists from several parts:

1. Basket (there is also splited version for regular print beds)
2. Basket holder - single or dual joint variants (print without supports and without brim)
3. Nut (big)
4. Base - single or dual joint variants
5. Ball rod
6. Main arm (some supports required) - phone holder
7. Nut (small) - phone holder
8. Holder (some supports required) - phone holder
9. Pin - phone holder

Assembling:

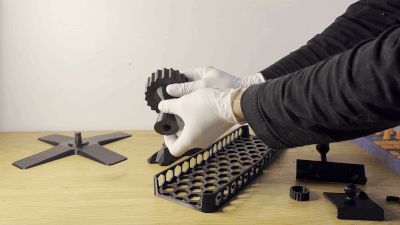

1. Put on big nut on ball rod (for dual joint variant - all the same, but 2 times):

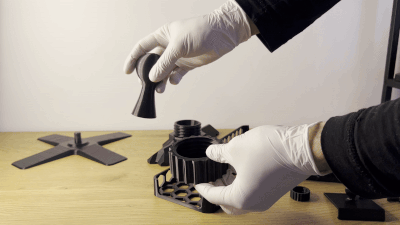

2. Screw ball rod into base(for dual joint variant - all the same, but 2 times):

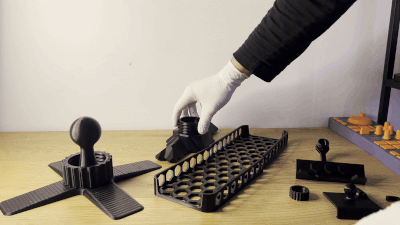

3. Connect basket holder with big nut(s):

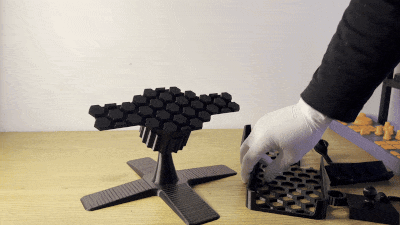

4. Connect basket:

Phone holder:

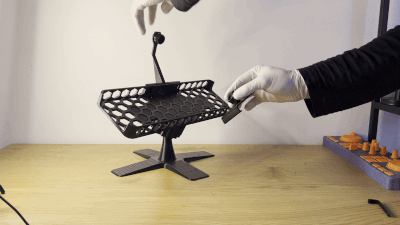

1. Connect main arm to the basket:

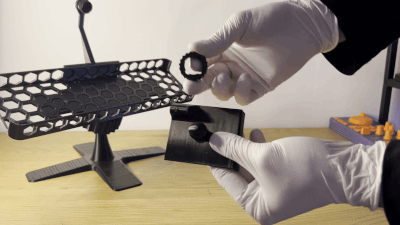

2. Press with some power small nut onto ball at the back of holder:
3. Connect holder to main arm:

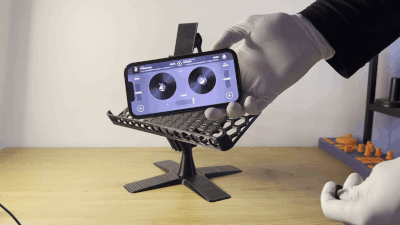

4. Fix your phone with pin:
5. Install your DJControl Mix controller, adjust stand and phone holder to the needed angle by loosing nuts a bit and then screw them back firmly.

All parts on pictures were printed with black PETG on regular print bed (220 x 220)
