Water meter - AI-on-the-edge - Version 2.0
Description
PDFAs my water meter was slightly different (bigger) as all the models available i redesiged the whole stuff in fusion360 following the shape and idea.
The box is also bigger as i used ESP32 cam with USB head (see link below).

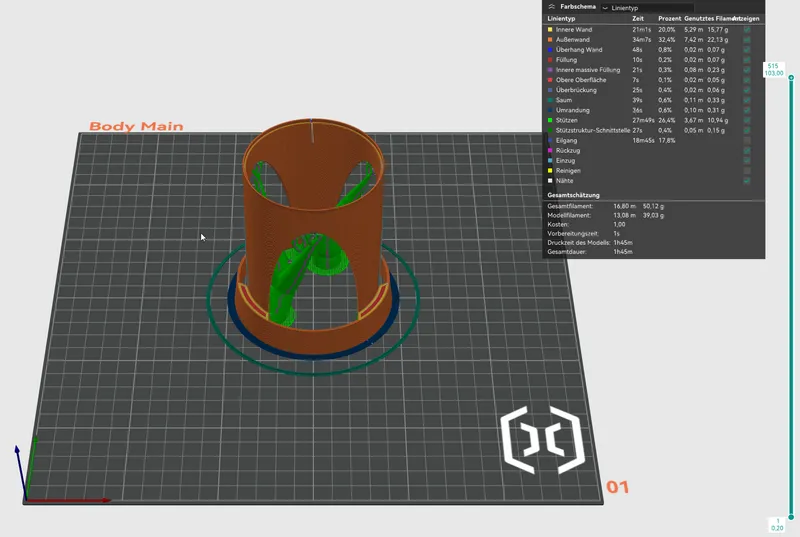

I printed this with 0,6 Nozzle - 30% Infill and 0,2 Layer
The Body i added Tree support and outer support on the bed for better adhesion (5 lines).
After installing i learned some improvements which i will add in next versions.
16.02.2025 - Version 2.0
- Better positioning of the ESP32 CAM DevBoard
- Holes for Reset/Boot Button

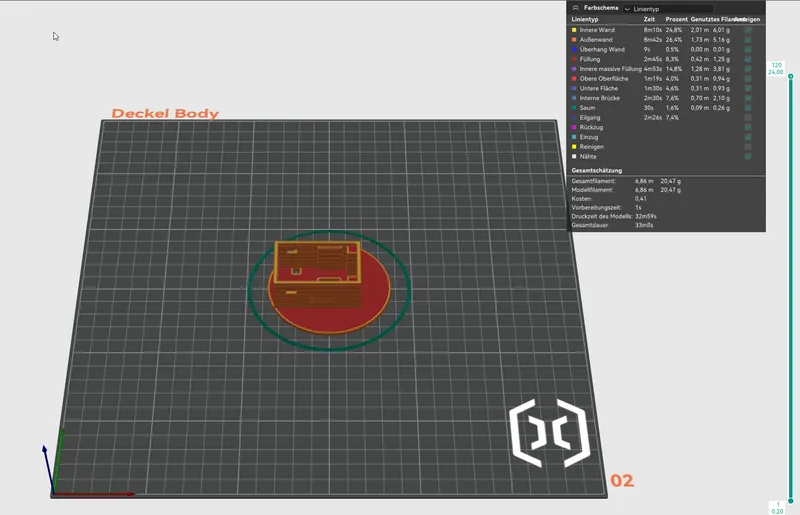

- New Lid for the ESP Box
- Fixed a optical Bug in the Body (no need to reprint)
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
Redesign in Fusion360 better fitting for my (austrian) meters. Only the idea (shape/design)was taken from this model.
Also the Box is different as i have a ESP CAM Dev Board with USB Head.
