4 in 1 filament adapter Flashforge adventurer 5M/5M Pro

this is my version of 4 in 1 filament adapter for 3d printer flashforge adventurer 5M or 5M pro with using 3DChameleon.
41
105
1
1539
updated April 7, 2025

Description

PDF

For fixing ptfe tubes i use metal fittings from old festo push-in fitting (with plastic shell, its easy destruct plastic shell and take out push-in fitting). is it small and lightweight. fittings press inside with vise, not with hammer (it can be damaged-like mine).

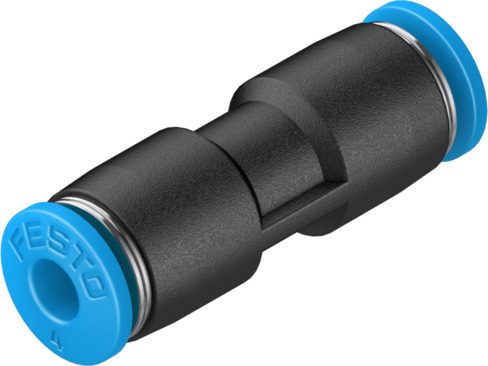

example of push-in fitting

print with no support.

9.2.2025 update - version with 0,1mm larger holes for easier pressing fittings

16.2.2025 update -added taller version2 with different holes in different angles. this version need support on buildplate.

17.2.2025 update - added adapter for clippy cuting system. support on buildplate only. (https://www.tinkercad.com/things/94imRkAFDme-ffad5m-3d-chameleon-auto-clippy-v1)

25.2.2025 update - after some labour, added new version of 4in1 adapter with 1/8" thread and

adapter print upside down with support only on buildplate.

this adapter is compatible with my design of auto clippy for adventurer 5M.

i have my design for hanging 3d chameleon on flashforge riser.
