RatRig IDEX Toolheads for Dragon UHF and horisontal Toolboard

the horisontal toolboard mount is made to fit the high temp cable from 3DO

3DO High Temp USB A-C Cable for 3D Printing - FEP+Silicone

----------------------------------------------------------------------------------------------------

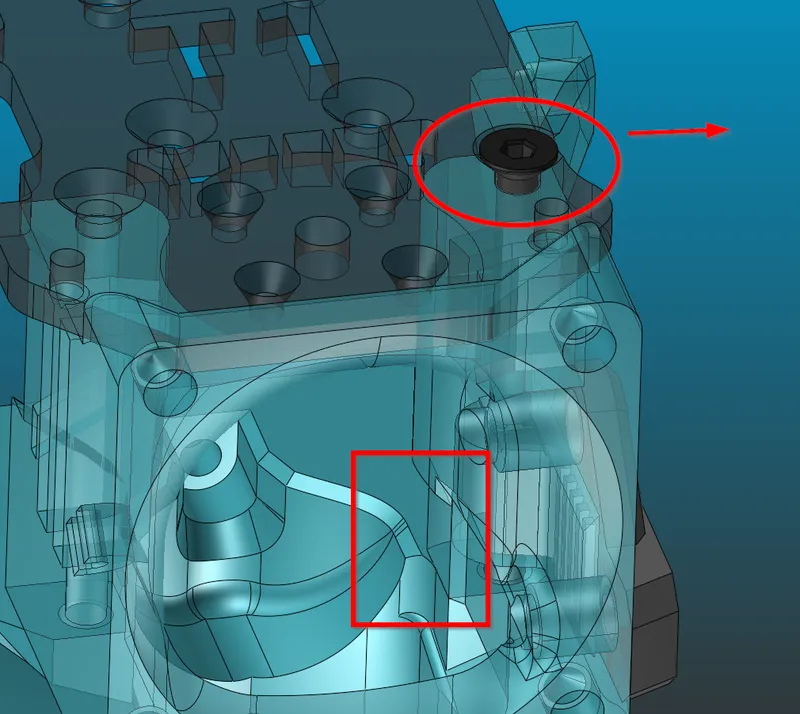

on the T1 front, the screw is moved to make room for the hotend

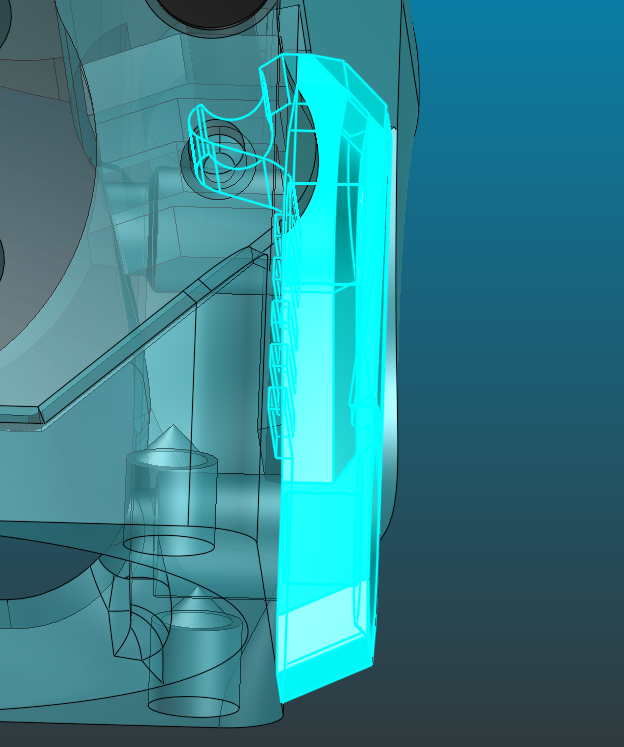

i didn't want to expose the belt to the heat from the hotend

so this clamp is smaller than the T0 clamp

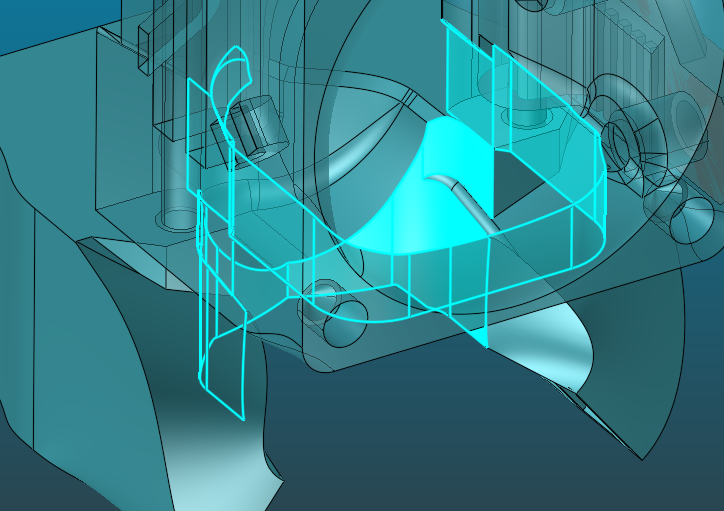

all these cutouts have been made to fit the hotend and to be able to remove the silicone sock

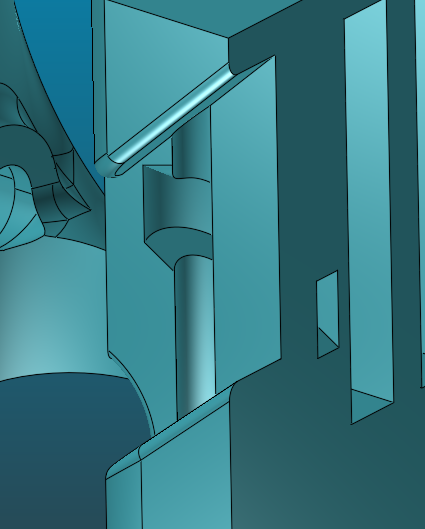

special cutout to hold the thick stiff heater wires

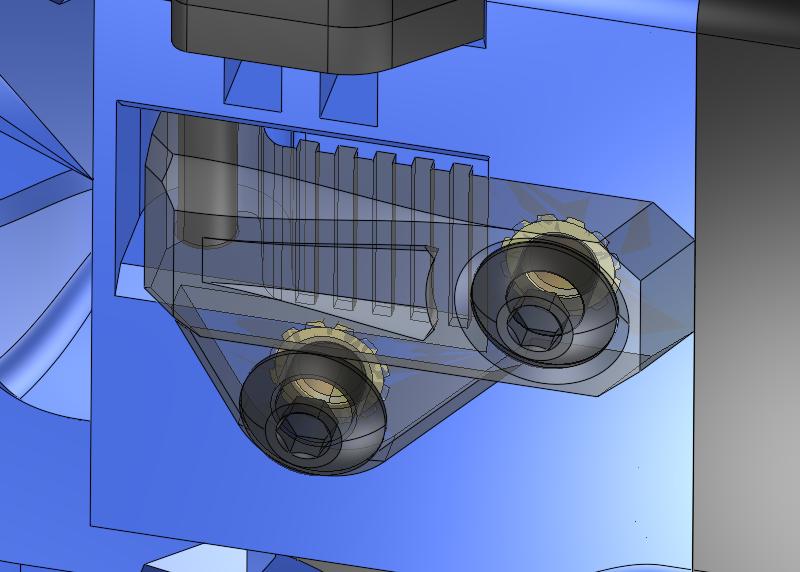

clamps have extra screw for a firm secured belt

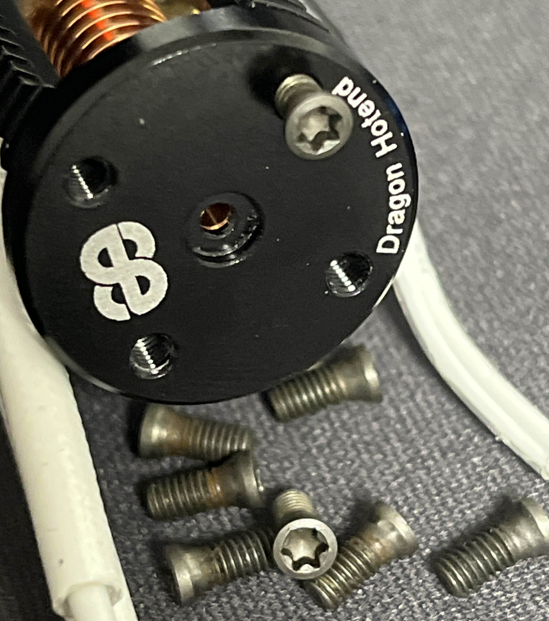

the step files have a 60 degrees chamfer for the hotend screws
that's because i used carbide mill inserts crews
feel free to change your step file to 90 degrees chamfers

redesign plate/duct/front/clamps/board mount
