Split flap clock - flap remix

Overview

This remix of the flaps is made for multi-color printers. The Fusion360 files, the script for exporting all flaps automatically and the font files are attached.

There are two versions available.

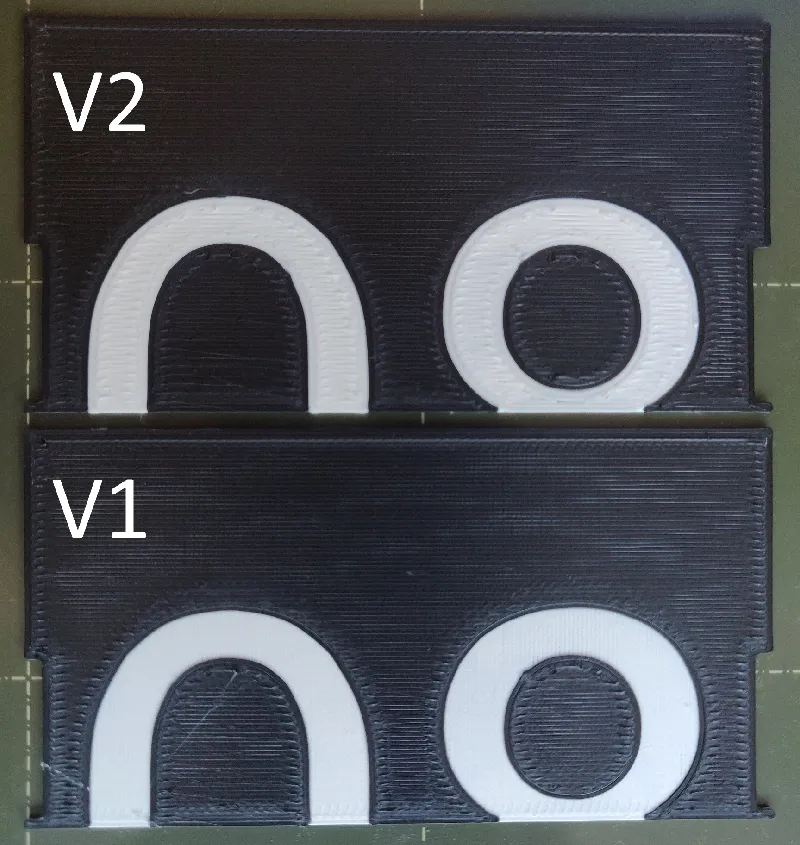

Versions

• v1
  + fewer color changes
  + top surface digits print cleaner
  - top surface may have white spots
• v2
  - more color changes
  - top surface digits may show aritfacts of the toolpath
  + no white spots on black top surface

Print Instructions (OrcaSlicer)

Importing

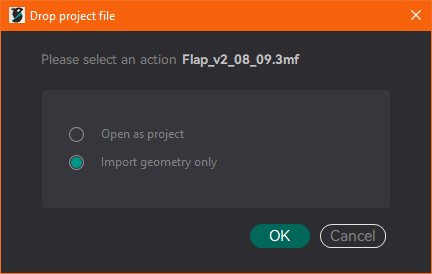

Import the .3mf files as geometry only

If asked to scale the model, select no

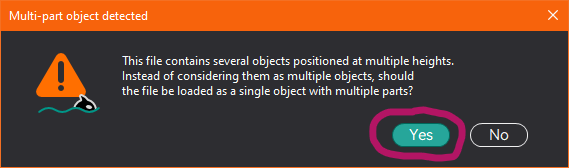

Choose to import as single objects with multiple parts

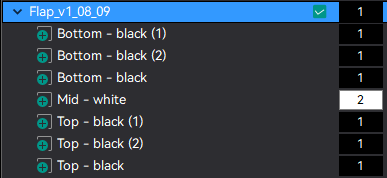

Set the color of the parts

Print Settings

Reccomended layer height: 0.2 mm
Sparse infill density: 100 %

Changed the flaps to print better with multi-color printers.
