THRUSTMASTER : SOL-R Accessories

Technical information for all model files:

• Nozzle size: 0.4 mm
• Layer height: 0.2 mm (Quality)
• For more durability, add :
  • 6 first and last layers and 4 perimeters to Universal Clamp and addons
  • 5 perimeters to screw and head of screw
  • Infill : 15%
  • Infill : 100% for spare parts files
• Materials recommended: PETG
• Support needed on spare parts files
• Printer used for prototyping: Prusa MK4
• Type of bed used for prototyping: smooth
• Screw needed for clamp : M6 (¼ Inch)

Notes:

• Only Compatible with prusa Print sheet 220*250cm and more
• All printers have different tolerances, we aimed to make a set of files that works on the maximum number of printers but your mileage may vary.
• The TM clamp is compatible with the following Thustmaster's Joysticks : Products of the TCA pack, T16000, TWCS, Farmstick, SOL-R

READ BEFORE PRINT : Stabilizer

    In order to use the 4 sol-R stabilizer, you need to buy rubber o-rings 9*5*2mm, or print it. You can find it on amazon, for example :

 https://www.amazon.com/Bivethoi-Nitrile-Sealing-Automotive-Plumbing/dp/B0DYNM8KN4/ref=sr_1_10?crid=1PZSHYYRQ1YRV&dib=eyJ2IjoiMSJ9.2Yhn29YYAFeahRl72CwMWGHMYYSnqtITa33ZH7pD2s4V4wpxb_zFIlBX7kJnyad7TC4DMhXchNfVSiDp4VgyHOAGf8WtXQj1db133jYaiTVkgSr5H_-BihVzBnE3bloS521C58fj6DvukwQbPRQ405_grSIePrlNs3fobropgjZ49YveluSkT-1XyfD0PiUS1jIVs-piiL0kApGdlYibztjKmbY-06_OFQbj1KBB2d0.yn2k8oZn03QadjM9s6wASeIZpgj8vmPIzjqVa0HCMlU&dib_tag=se&keywords=o-ring%2B9*5*2mm&qid=1759918642&sprefix=o-ring%2B9%2B5%2B2m%2Caps%2C164&sr=8-10&th=1

    To enhance your user experience, you can also add rubber pad under the stabilizer.

Safety tips:

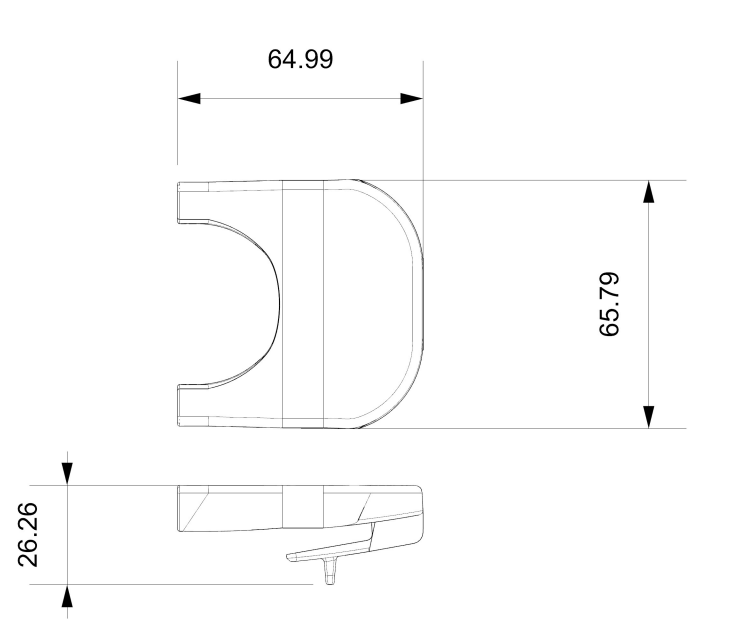

• IMPORTANT : Add an adhesive (rubber, double-sided tape, fixed paste, etc.) to the parts in contact with the table, such as the top of the screw (45mm ray) and the bottom side of the top clamp(56*76mm). Otherwise, the clamp tends to slide. Find the dimensions below
• Customize at your own risks !
