SCX24 tracks -NO HARDWARE-

I designed some 3d printable tracks for my scx24. For details see the description.
Your funds support the creator's further activity.
$5
12
0
328
updated March 9, 2025

Description

 I know there are some tracks already available, however, they were way too big for my truck, not very scale and you need additional hardware. Also if your axles have caster these other tracks won’t fit.

With my design you only need:

  1.  24  m1.6 x 20-22mm screws (you could use some 1.5mm wire instead if you don’t have any screws on hand)
  2. 12 m1.6 x 6-10mm screws (you could use super glue instead)
  3. super glue

m1.6is the same size as the ones used on the scx24, so if you already have some from another build you could use them

  • When lubricated the tracks run very smooth and there is absolutely no need for bearings
  • I was really surprised to find out how good they are even on fairly smooth rocks
  • the tracks can pivot a little bit to allow better grip
  • you can adjust at which angle the tracks are touching the ground



Assembly Instructions:

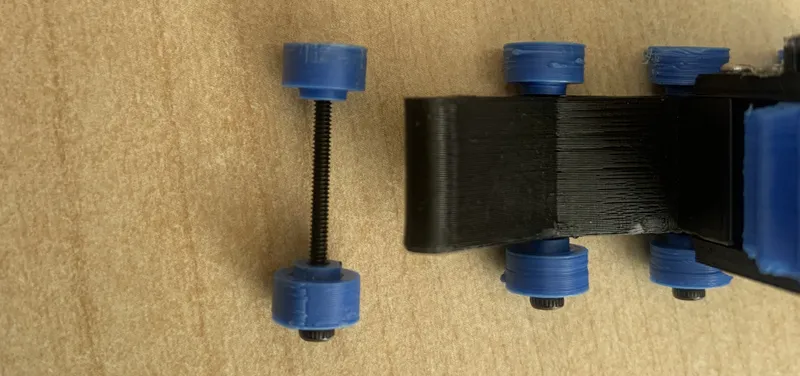

put he 20mm screws htrough “roller tight”, screw them into the “base” and into “roller loose”. You may have to drill out the holes in “roller tight” and “base” with a 1.5mm drill bit.

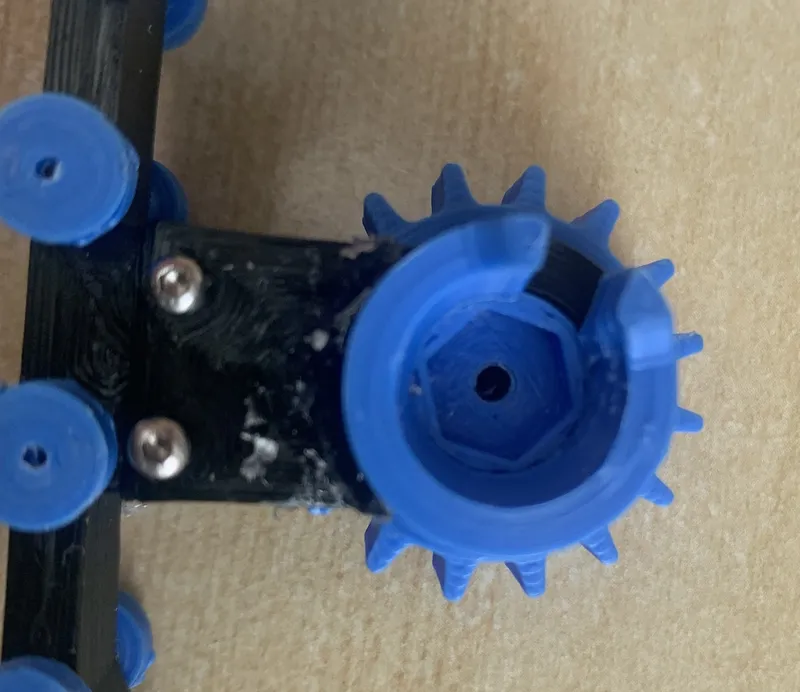

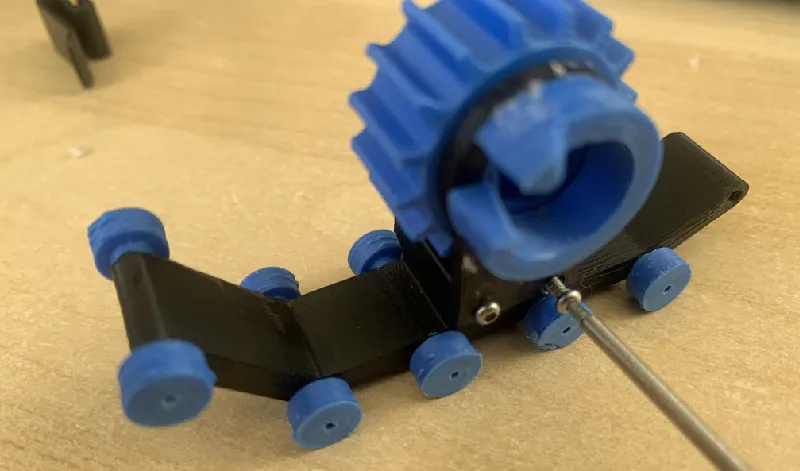

screw the shorter screws into the “front and back plates” to secure them to the base. dont forget to put the sprocket in between.

To adjust the attachments put the tracks and the attachment on the car. Once your happy with the aarticulation, glue the attachment to the"back plate".
