V-Spooler X Motor Mod

The V-Spooler X motor mod is a set of parts for adding motorisation to V-Spooler X. This model is available free on Makerworld, but is also listed here should you want to support me as a maker.

It features the following:

• A strong 12v max 260RPM motor
• A 3 position switch to control direction (clockwise, off, anticlockwise)
• A knob that controls the speed, which also turns the motor off when turned down

Please note this mod will not work for V-Spooler for which you can find the motor mod listed here. This mod may work on a future release of V-Spooler Mini however this is to be confirmed.

Our manufacturing partner VisionToCreate3D provides hardware kits, printed parts and fully assembled V-Spooler X at their store, for which Fyrby Additive receives a percentage. You can find the V-Spooler X Motor Mod kits available here, please be sure to select the right one!

A 3D colour preview of this model is available by clicking here, phones and headsets can use an optional AR preview with the button at the top.

Safety Warnings

If you are self sourcing, this speed is really fast enough and generally it doesn't feel very safe to use a faster motor. I tried a few motors so you don't have to. Maybe you want to not use the 260RPM motor at full speed if you are not in a hurry, and have a bit of mechanical sympathy!

If your unit jams at speed it may break V-Spooler destructively or possibly cause a spool to go flying across the room, so consider not letting children using it, and also find a place where it can be used safely if you want to go fast.

Bill Of Materials

It would be great if you can support me by buying the hardware kit from my manufacturing partner as listed above, however we provide these instructions below to help you self-source the build should you want to.

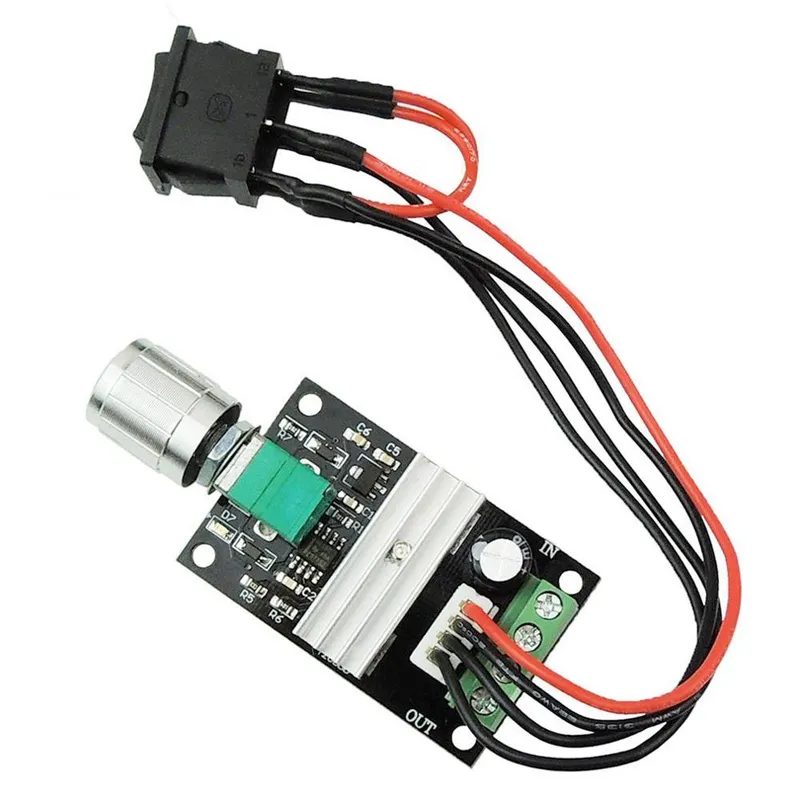

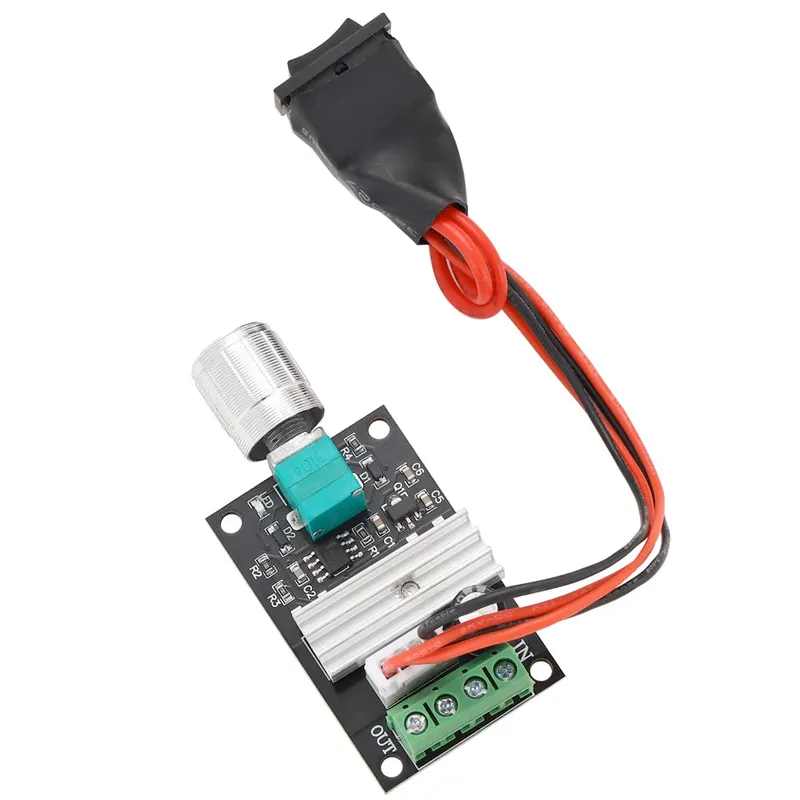

The correct motor controller. I find it easiest to search for 1203BB and look at the pictures. Note that this one has a silver knob and a separate switch to control the direction as pictured. The heat sink is often at a slight angle. This should be a 12v part but may support other voltages.

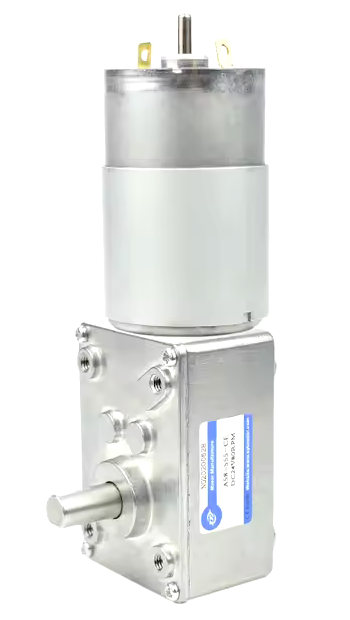

Motor with part number 5840-555-CE. As this motor has a few variants I am using the 12V 260 RPM version with an 8mm output shaft.

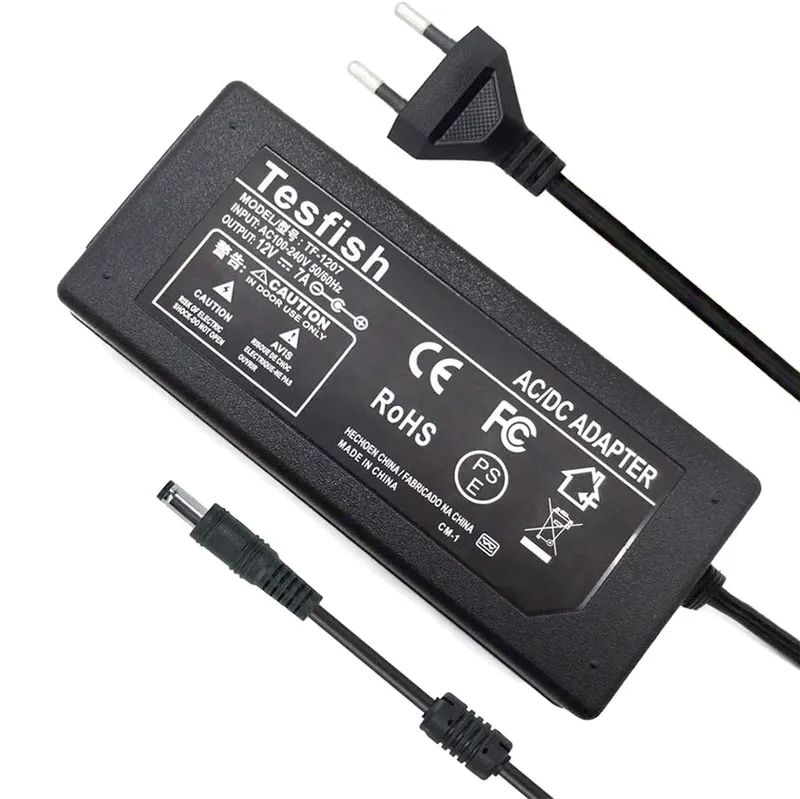

A 12v DC adaptor to match the DC connector. I am using a 5.5mm OD 2.1mm ID barrel connector for the item below. It should support at least the stall current of the motor which is 6.5A, so a 78W or better 12v power supply. Usually having some overhead is nice, so a higher rated 12v supply may be a good idea.

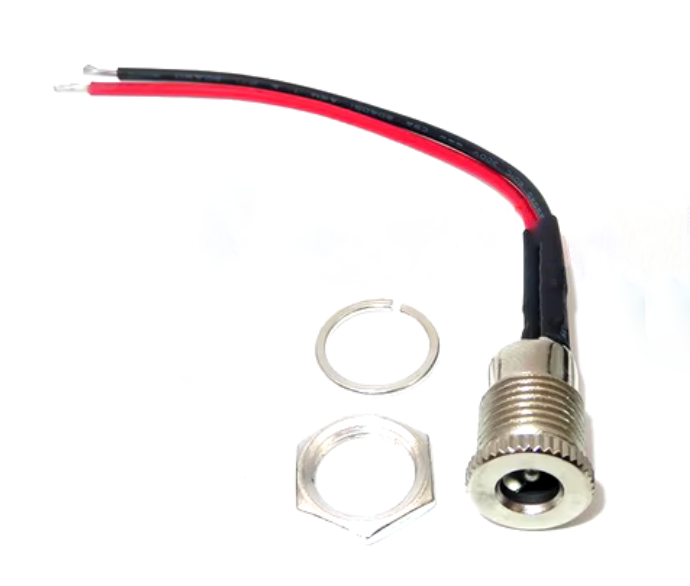

DC Jack. The one that fits can be found by searching for “DC099 Wired” - it is available with cable pre-soldered, which saves a little work. It looks as pictured to the right. Ensure to get one that fits your DC adaptor. They seem to be available to support either a 5.5mm OD and 2.1 or 2.5mm ID.
17x M3 inserts, Ruthex or CNC kitchen work great.  Note the Bambu Lab inserts have a different outside diameter and will not work well.
7x M3x8 screws 6x M3x16 screws 8x M3 washers 4x M4x16 screws 4x M4x16 washers
2x 30cm wires for the motor
Crimp plugs for the motor or the ability to solder wire to the motor terminals.

Assembly

The instructions for building the V-Spooler X motor mod are available in PDF format in the files section.
