Multiconfiguration WAGO Junction box FREE

This innovative junction box is fully compatible with the WAGO 221 series and supports all connector models, including the 221-412, 221-413, and 221-415. Designed for maximum flexibility, the rail-based approach allows you to mix and match different WAGO connector sizes to create the wiring configuration you need.

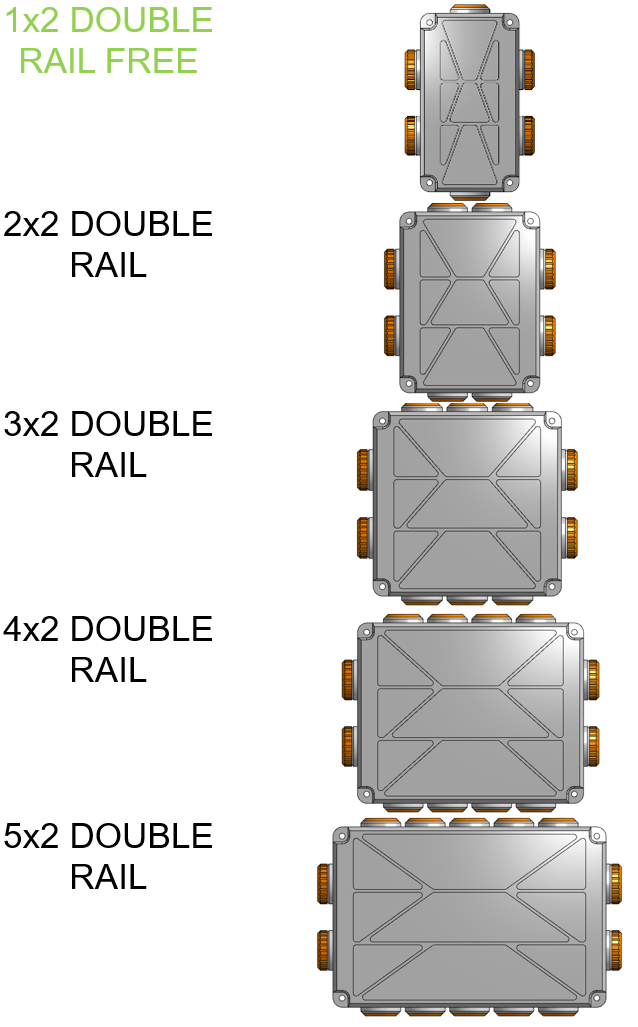

CHECK ALL CONFIGURATIONS HERE:

https://www.printables.com/model/1169166-multiconfiguration-junction-box

Enhanced Design Features

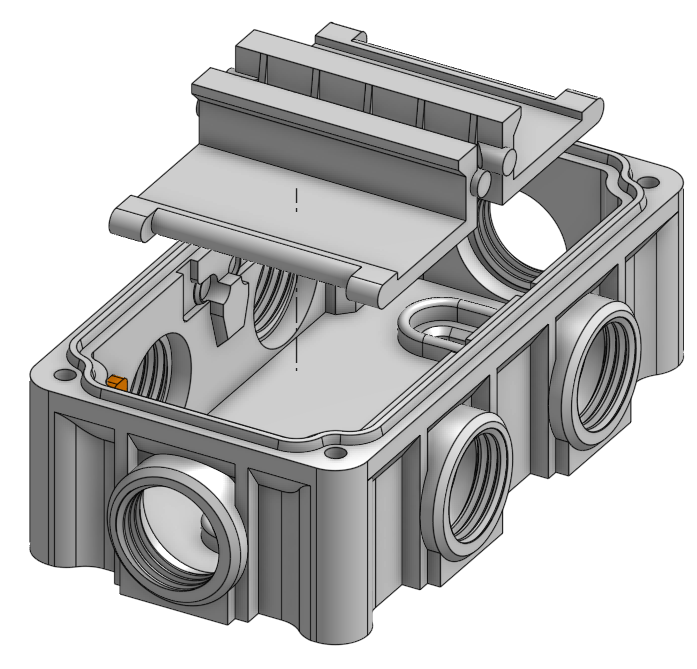

• Swivel Rail Mount: The connector rail is mounted on a swivel joint located on the top part of the box, enabling convenient feed-through connections. This design makes it easier to access and connect cables while keeping all connections clearly visible.

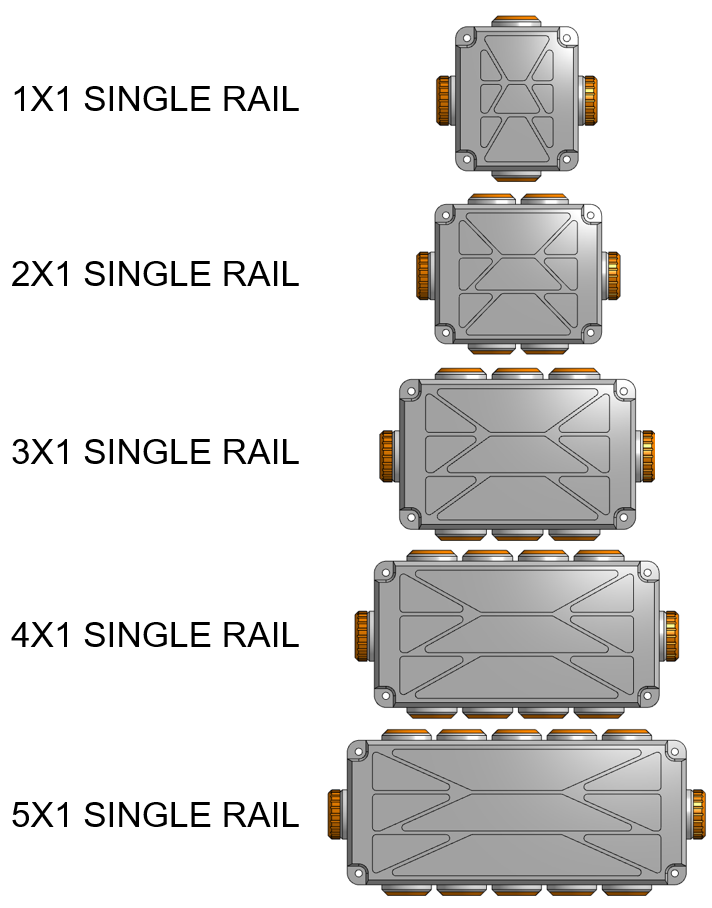

Different connector combinations:

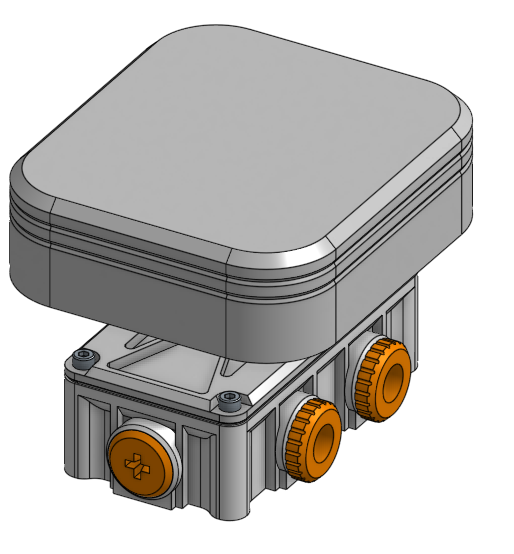

Elegant Lid:

The Elegant Lid is compatible exclusively with 3D-printed glands and is designed for indoor use. It offers a clean and polished look, making it ideal for situations where appearance matters most.

Check the information below for details on how to use the Elegant Lid effectively.

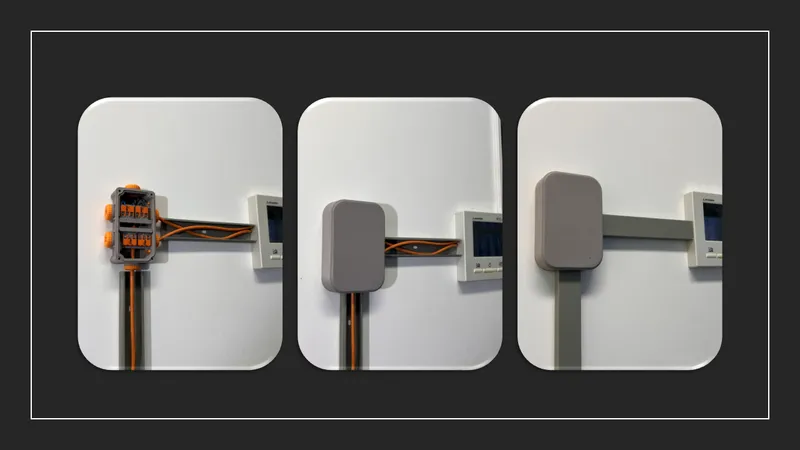

• Cable Management: All cables are neatly concealed beneath the rail, ensuring a clean and organized appearance.

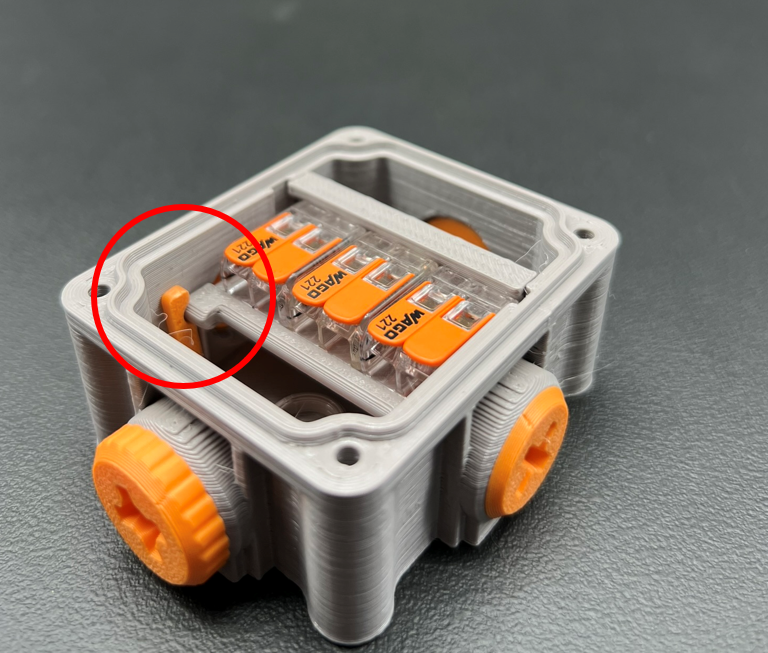

• Secure Locking Mechanism: The rail is locked into position using a latching pin. Additionally, the top lid ensures the WAGO connectors remain securely closed by holding the lever in place, preventing unintentional opening.

Built for Versatility and Durability

• M16 x 1.5 Thread Compatibility: The box is equipped with a standard M16 x 1.5 thread, allowing the use of standard M16 cable glands for applications in harsher environments.
• Water Protection: A precisely engineered seal groove prevents water ingress, providing additional protection in challenging conditions.

Recommended Material for Safety

Given the presence of electrical currents, it is strongly recommended to use UL-certified, self-extinguishing PETG filament for 3D printing this junction box. This material is particularly suitable for housings and insulating parts in electronics due to its flame-retardant properties, ensuring an added layer of safety and compliance with electrical standards.

3D Printing Options

For those who prefer a fully 3D-printed solution, the box supports customizable 3D-printed cable glands with wire diameter holes ranging from 4–10mm. Unused cable holes can be sealed with screw-in blind glands, ensuring a fully tailored setup to your needs.

Try the 1X2 Version Today

Start with this 1X2 configuration of the box and explore its ease of use and adaptability. Stay tuned for more variations of this design, which will be uploaded soon. Follow us for updates and new designs to meet all your wiring needs!

Assembly:

LID WITH PATTERN

ELEGANT LID

Choose the Lid That Fits Your Needs

We offer three lid options to suit your preferences: Elegant, Heavy Duty, and Regular.

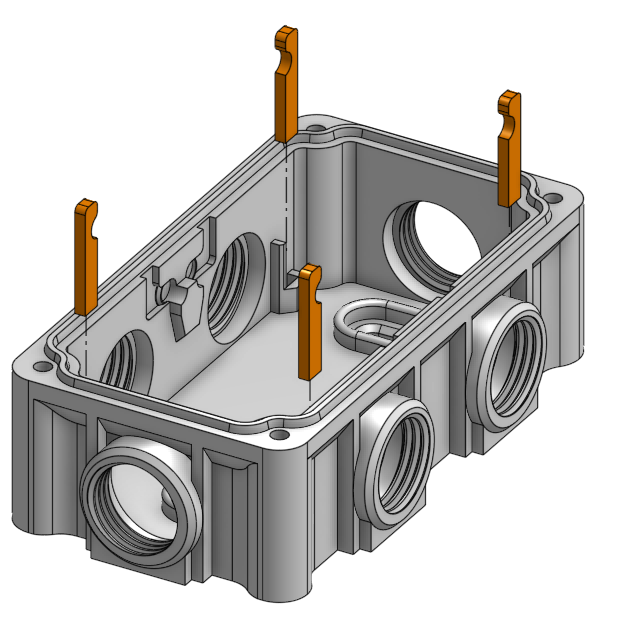

• Elegant Lid: Designed for a sleek, screw-free finish, it latches securely onto the box for a neat, polished look. Simply push the lid onto the box until you hear the satisfying “click.”

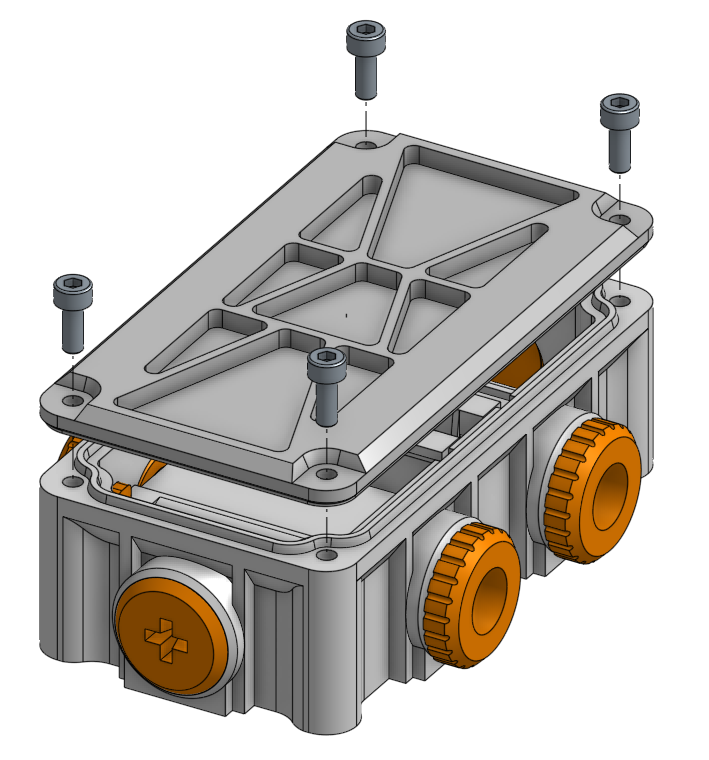

• Regular Lid: A practical choice when appearance isn’t a priority. This lid is attached with screws, saving you 3D printing time.

Pick the lid that best matches your needs—whether it's style, practicality, or strength.

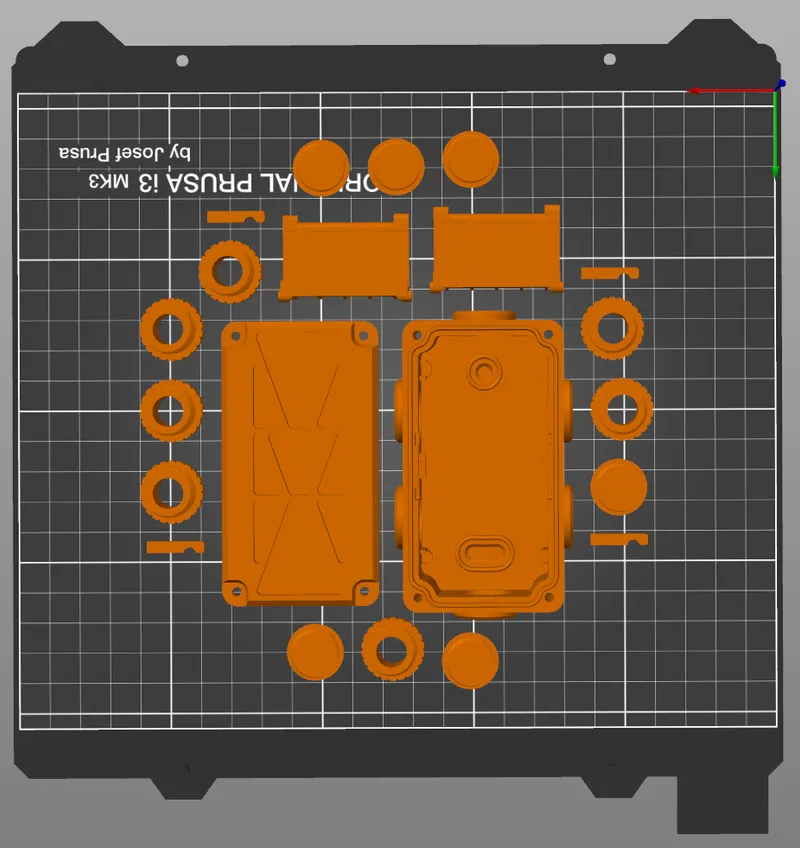

Print:

No supports needed!

Elegant Lid print tip: IMPORTANT!!!

Elegant Lid has configurable slots sizes which you can resize to your needs. It includes BLIND parts which you can resize and turn into negative parts which in result create desired opening for your cable ducting.

Please check the workflow below!

Pick Blind part and change its dimensions

1. Change dimensions

2. Change part type

3. Change part type to negative

4. Slice!
