Steam Vault

A riddlebox with a place for a small gift - printed without supports.

19h 10m

2× print file

0.20 mm

0.40 mm

191.00 g

165

updated January 29, 2025

Description

Very important – do not skip this step!

The “push” part must be printed before starting the print for the “main” part.

Layer height: 0.2mm

Infill:

Supports: none!

Before starting, prepare your gift and place it in the open compartment, which will be sealed during the first two steps.

Now, follow the guide.

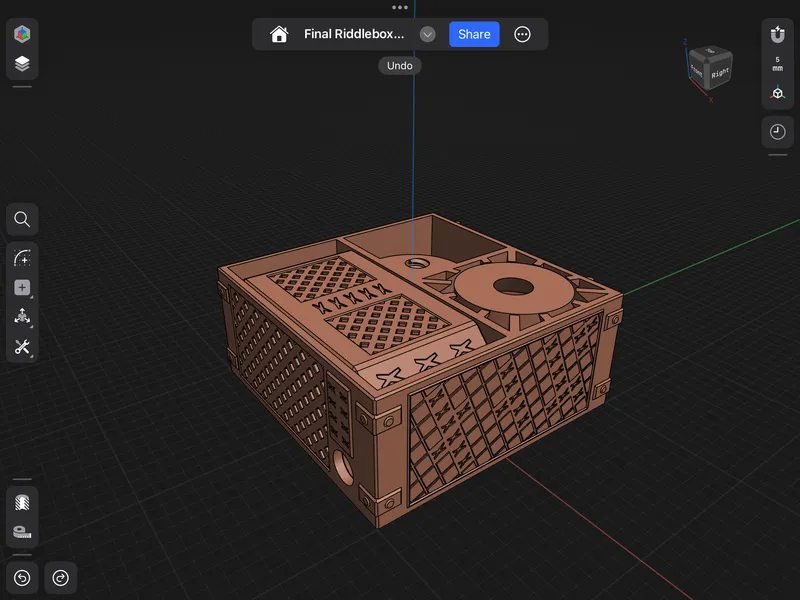

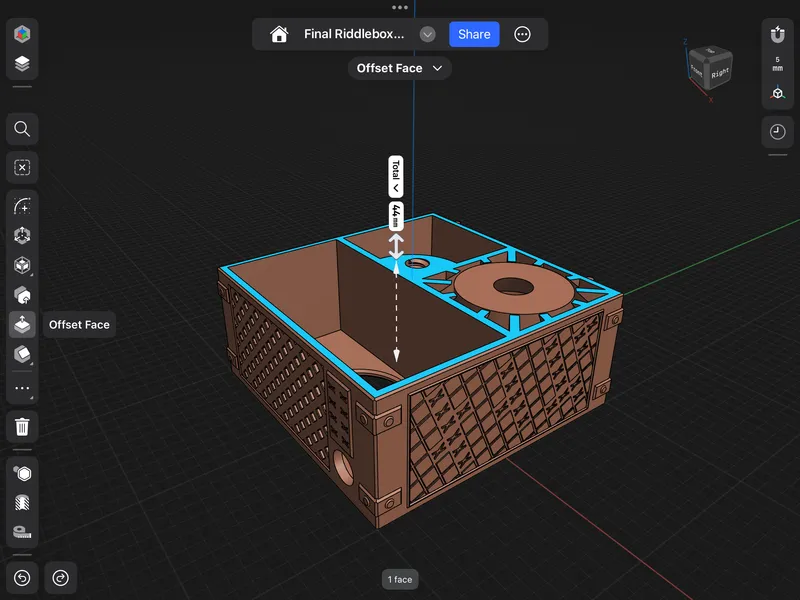

Print the “main” part up to 44 mm – set the pause in the slicer at 44.2 mm.	Have the “push” part ready …
… and insert it. Ensure that the thread on the “push” part will be aligned correctly with the hole in the “main” part before inserting it.	Now, let the printer complete the job!

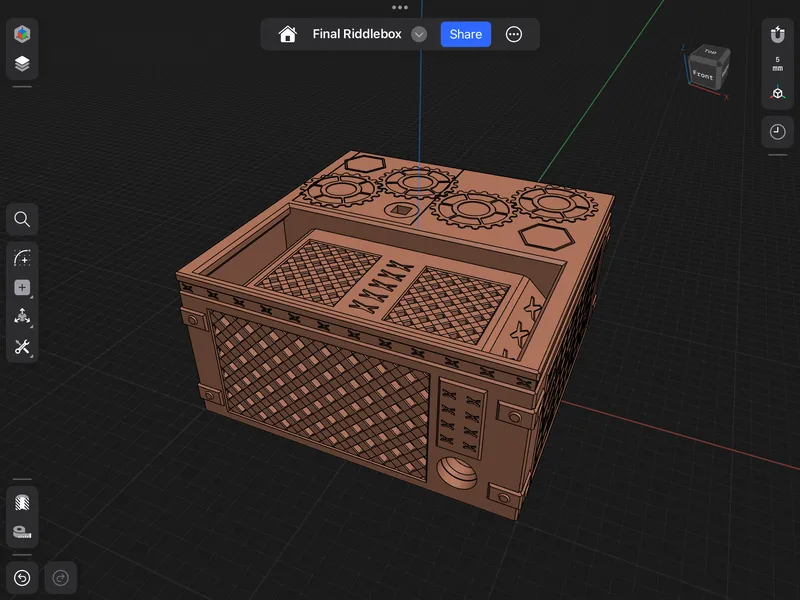

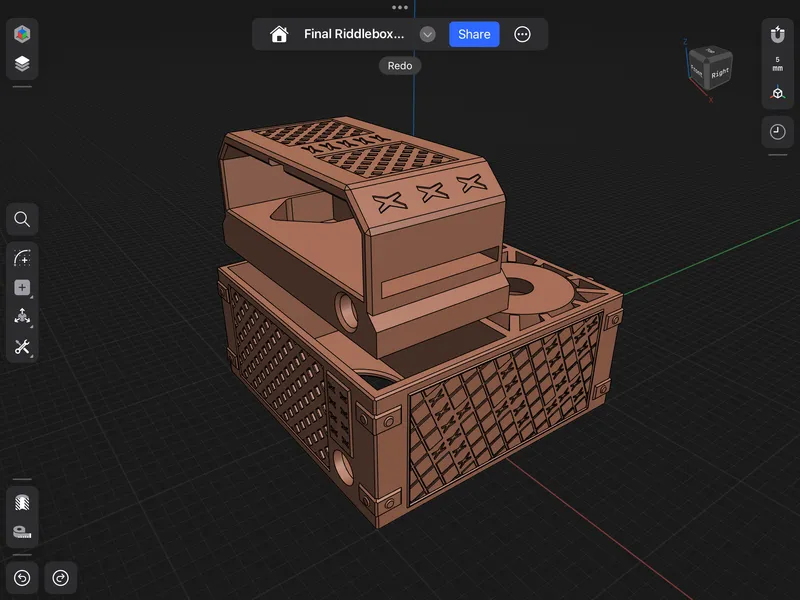

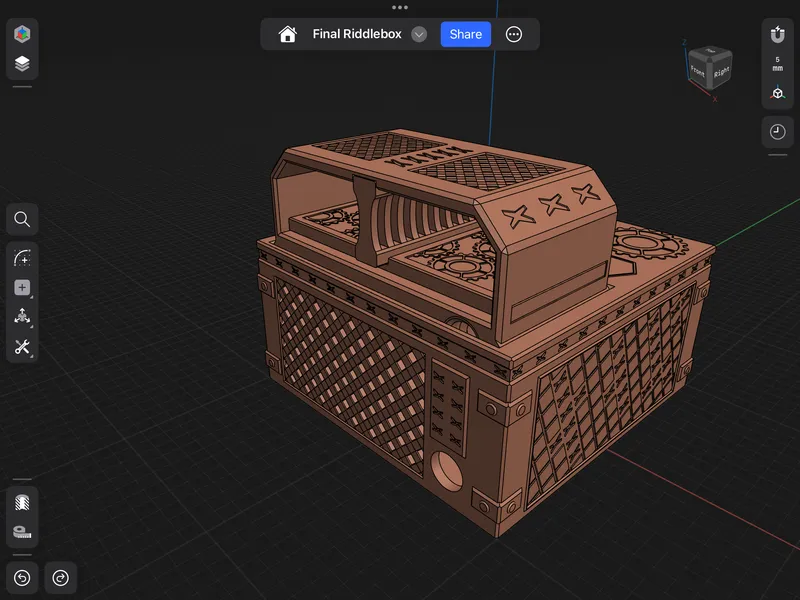

If you have already inserted your gift, you can now prepare the "top" part …	… and insert it. Make sure to align the thread on the “main” part with the hole in the “top” part."
Prepare the screw and the screwdriver with the square ("screw 2" and “screwdriver 2”) ready …	… and turn the screw in.

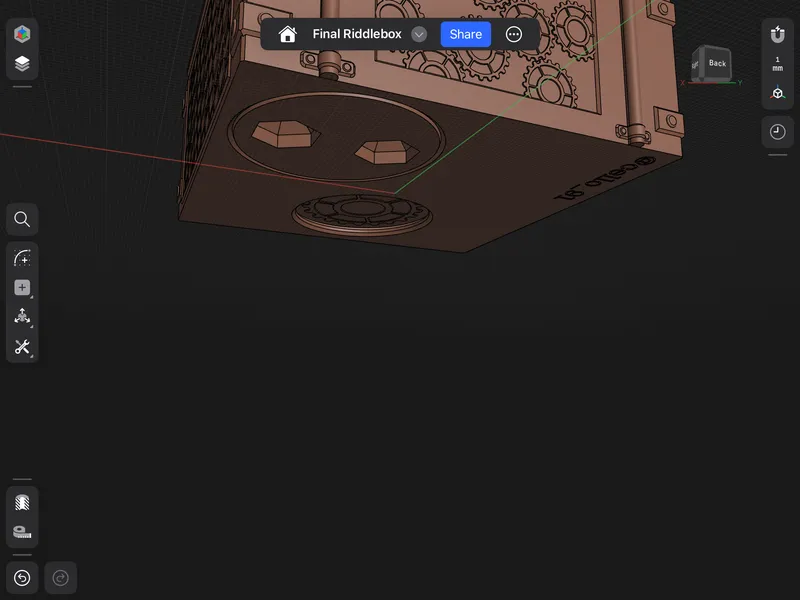

Push the “push” part to the top using the hole at the bottom of the “main” part …	… and insert the screwdriver with the square (“screwdriver 2”) into the hole.

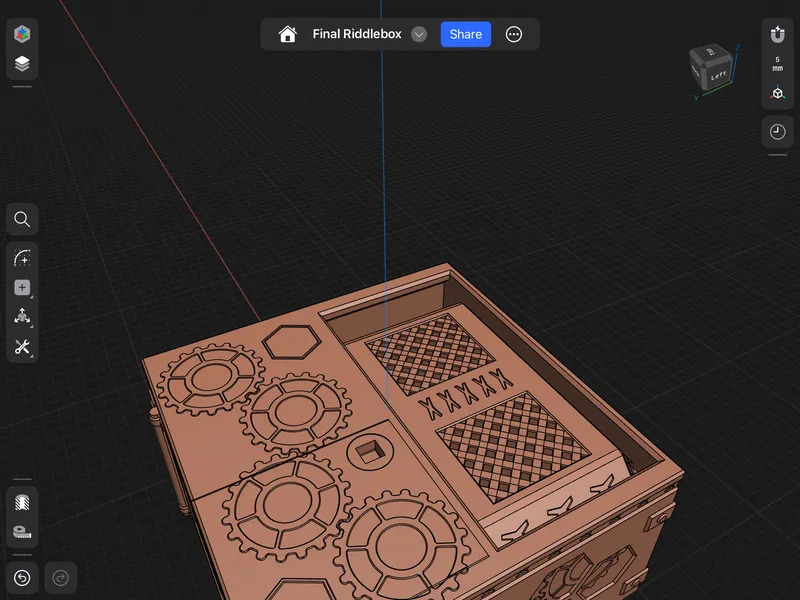

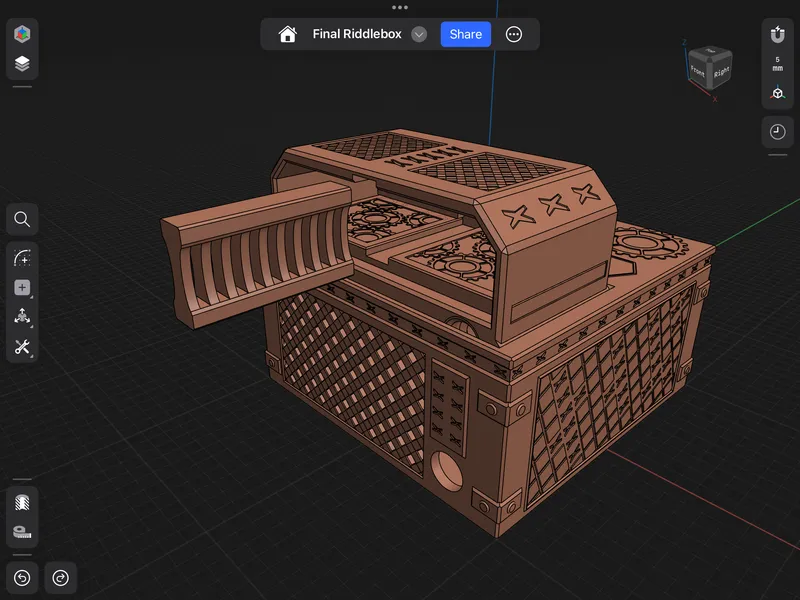

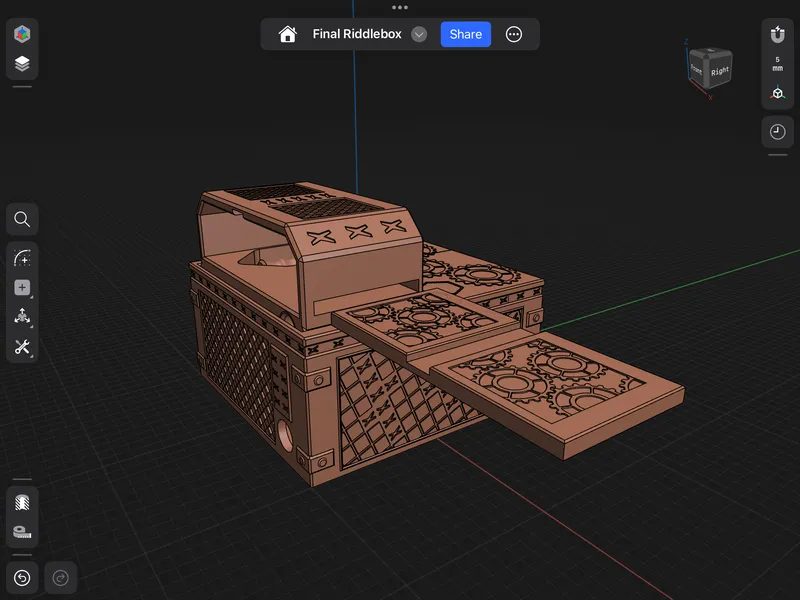

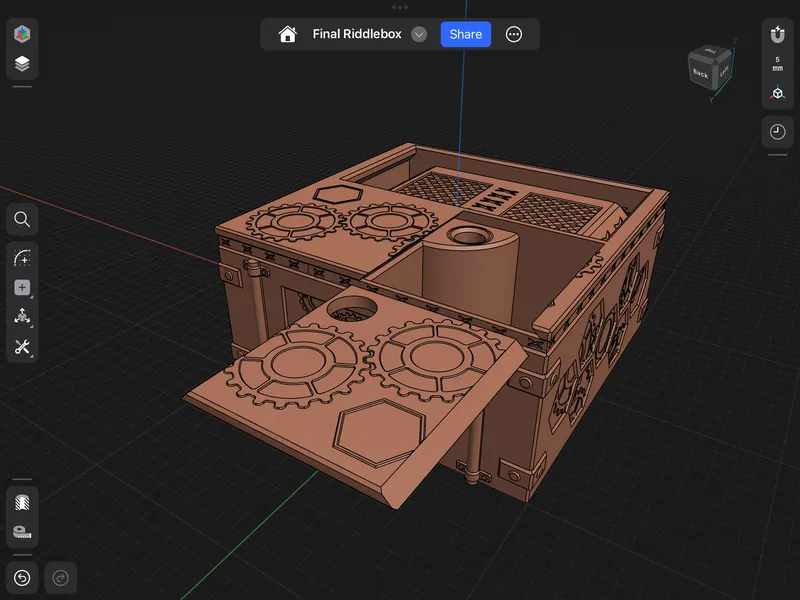

Prepare the “slider 2” part …	… and insert it in the slot. Pay attention to the orientation – the narrower edge goes in first.

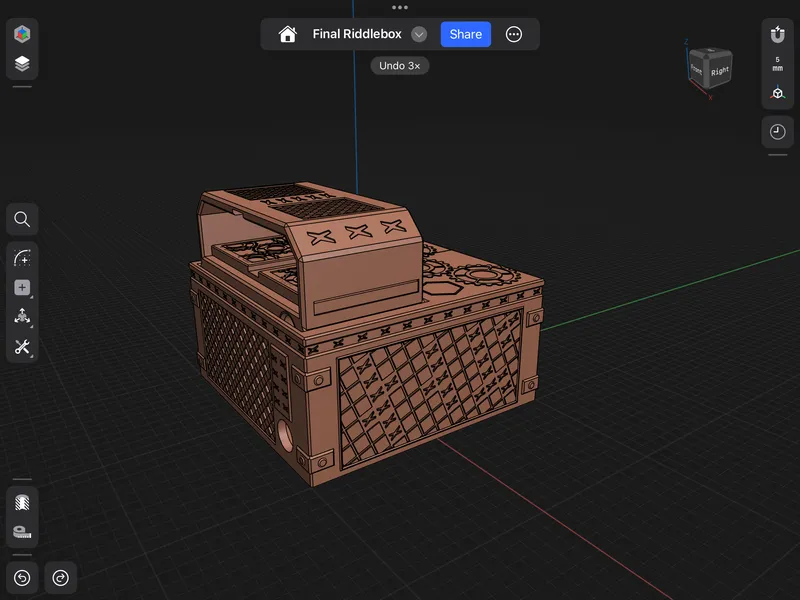

Prepare the “slider 1” part …	… and insert it in the slot.

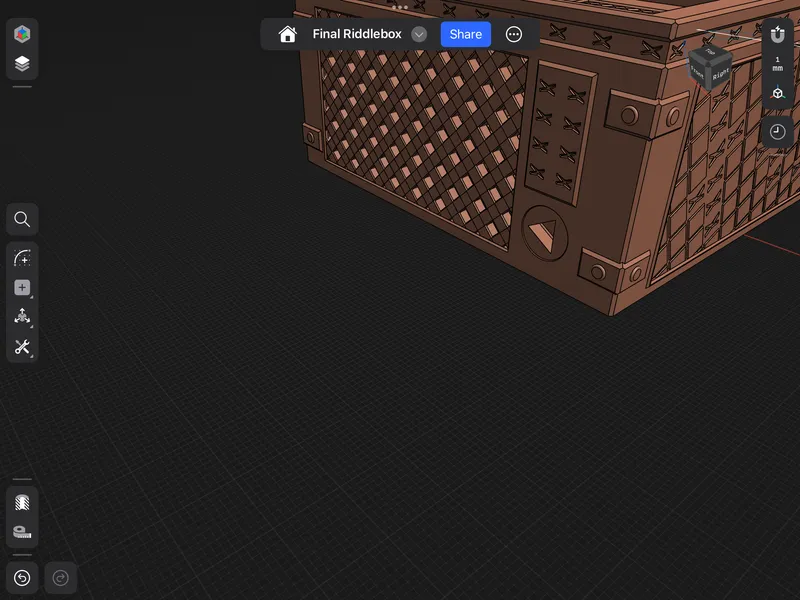

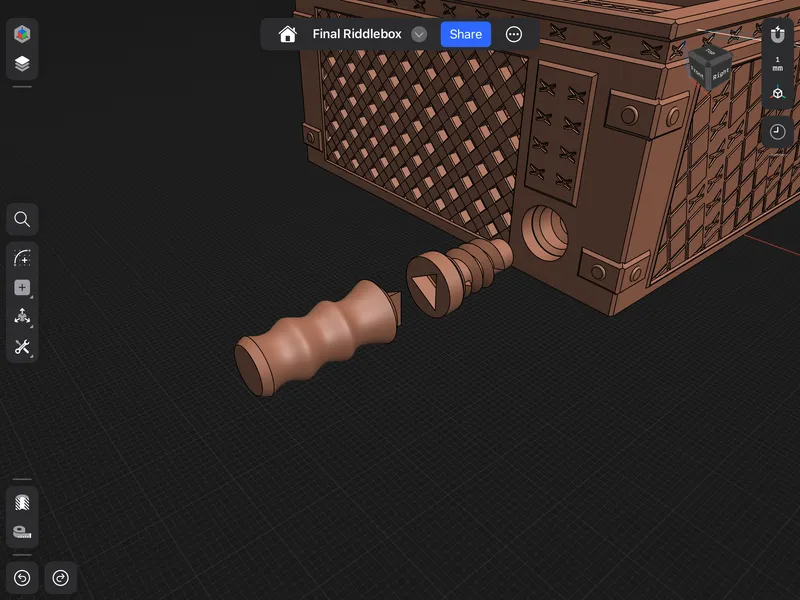

Push the “push” part down.	Prepare the screw and the screwdriver with the triangle ("screw 1" and “screwdriver 1”) …

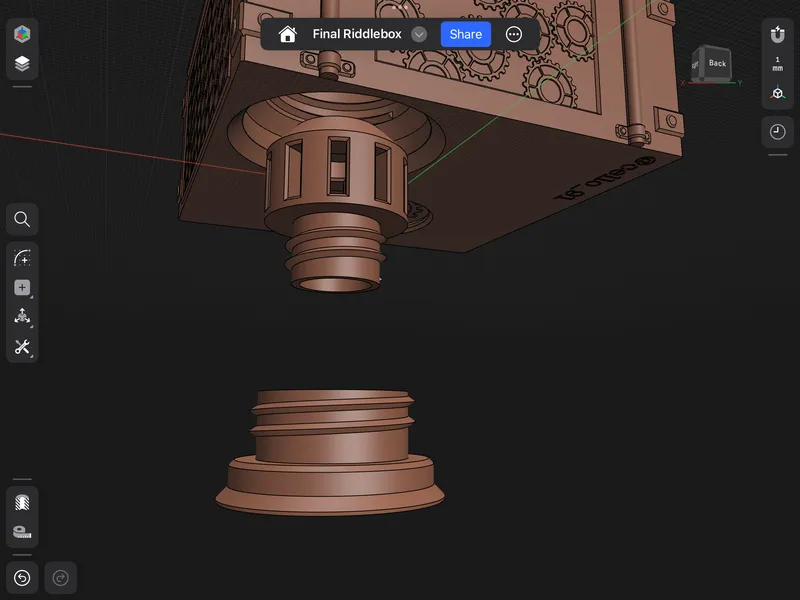

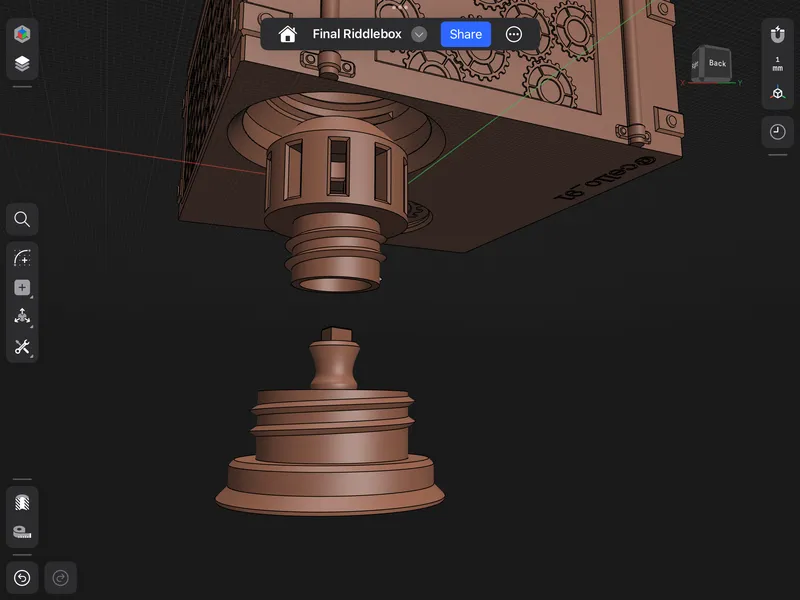

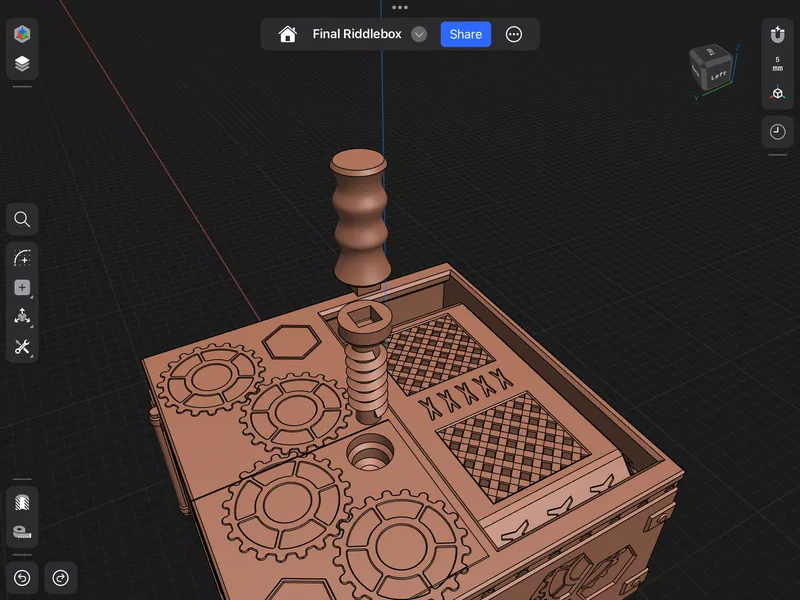

… and turn the screw in.	Prepare the two parts of the big screw ("big screw part 1" and “big screw part 2”), …

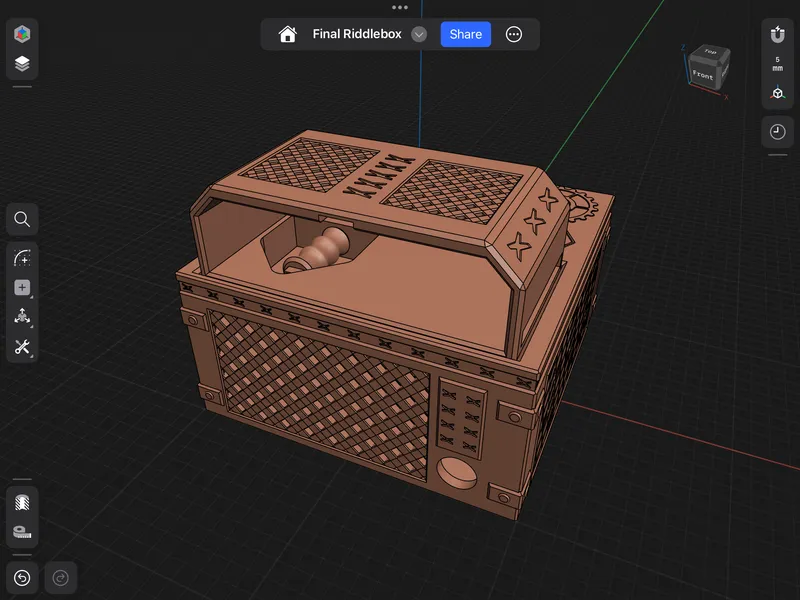

… insert the screwdriver with the triangle (“screwdriver 2”) …	… and screw them together, ensuring the screwdriver remains inside as you tighten the big screw.

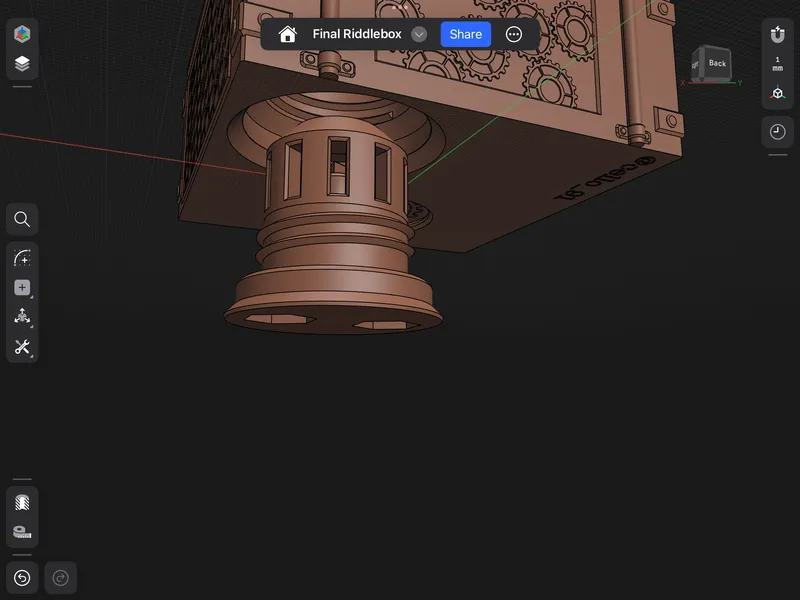

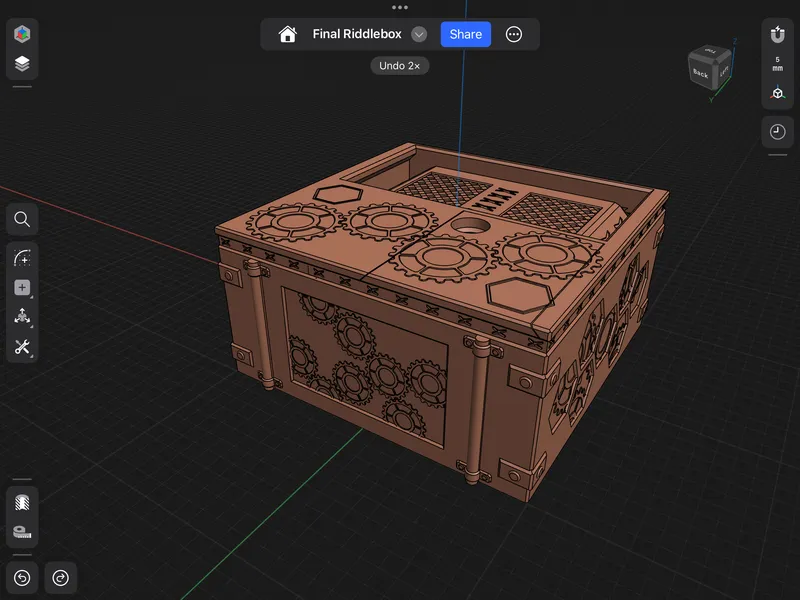

Turn the big screw into the “main” part.	Enjoy your assembled Steam Vault! 😊
