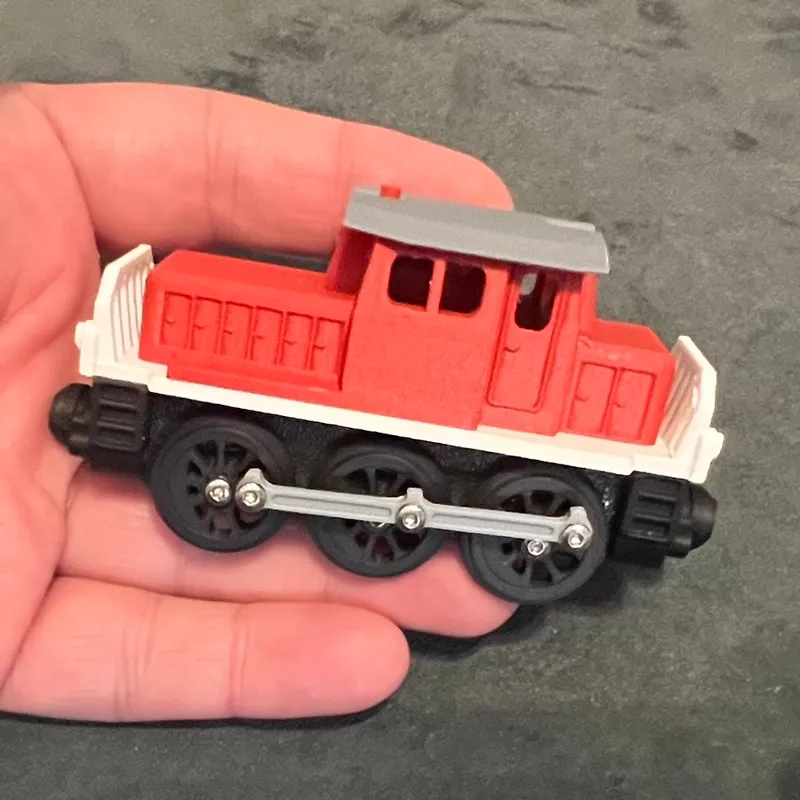

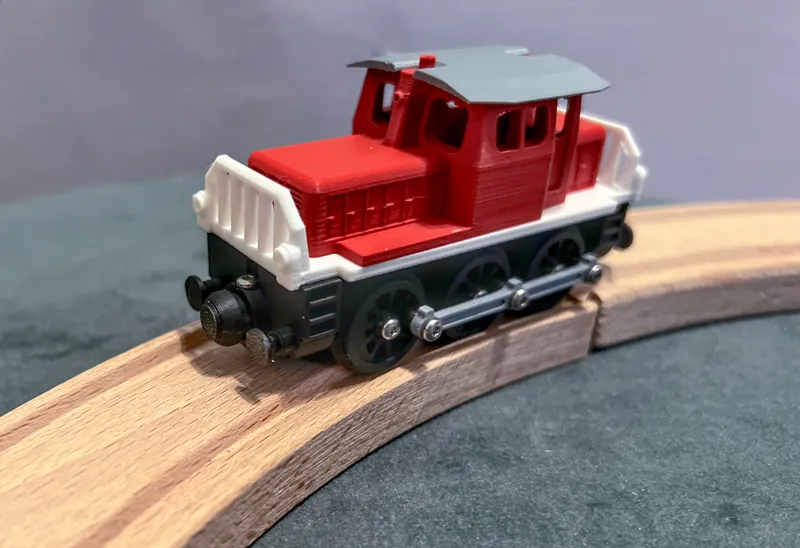

DB BR365 diesel locomotive compatible with IKEA, BRIO

DB BR365 diesel locomotive compatible to IKEA, BRIO, etc. wooden railways.

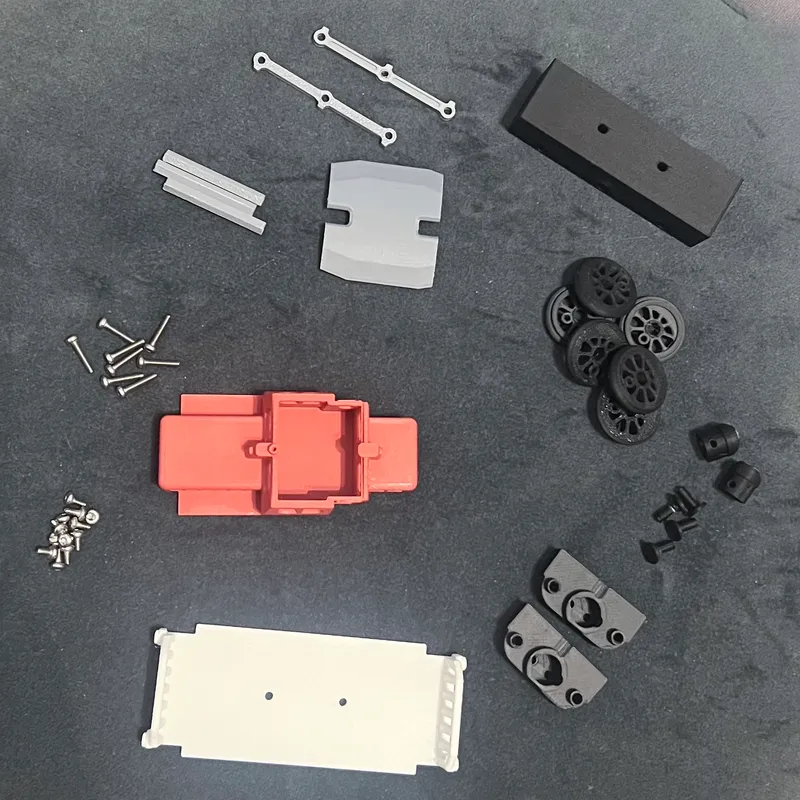

Required non-printed parts:

2x magnet ø 6mm x 3mm

12x screw M2 x 4mm

8x screw M2 x 10mm

Building instructions

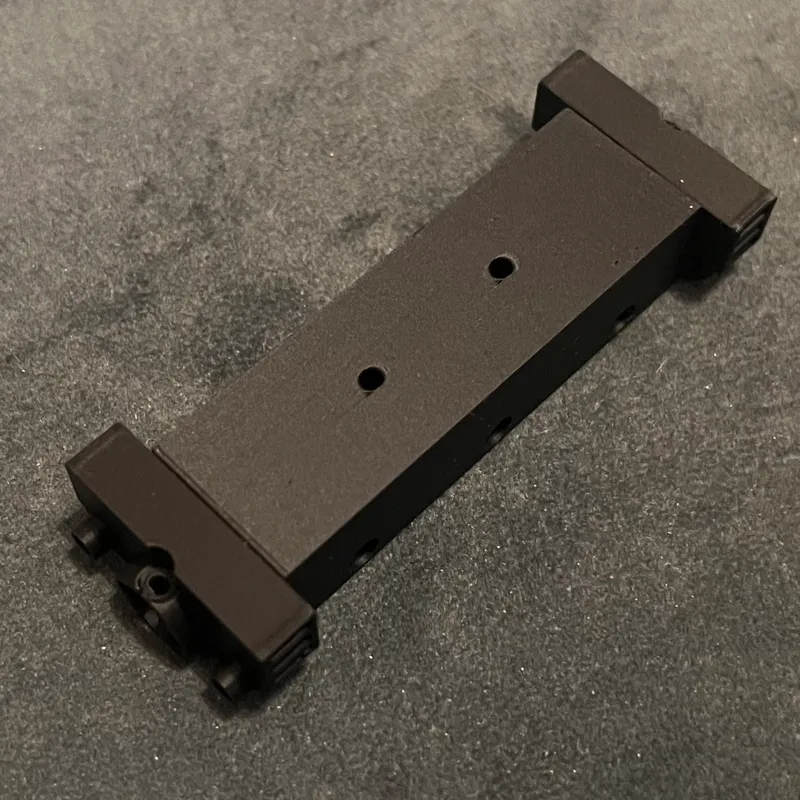

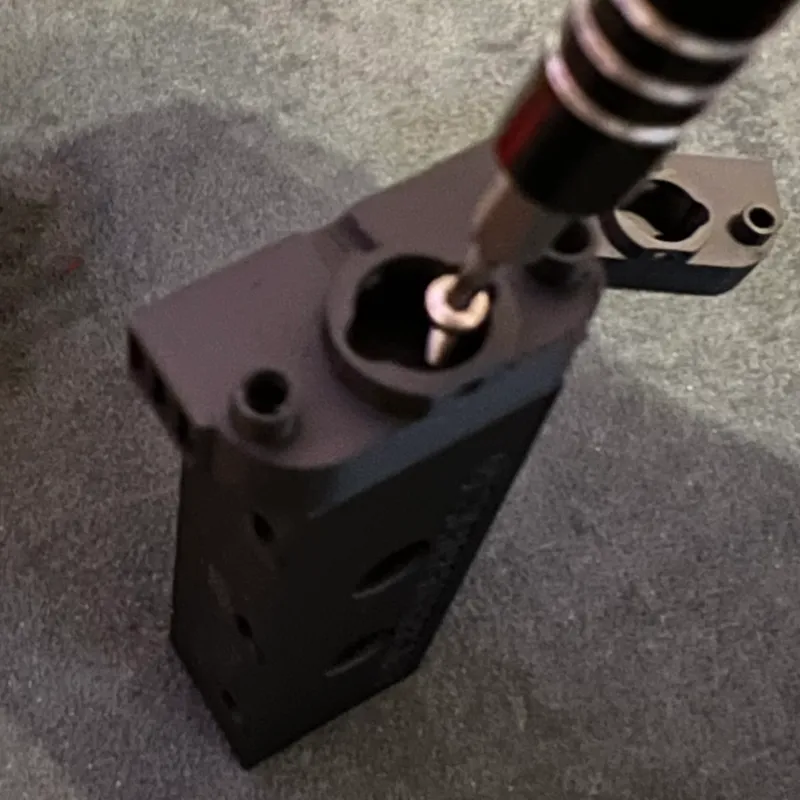

Step 1: Attach the front to the base by use of 2x M2 x 10mm screws (must be done for both sides)

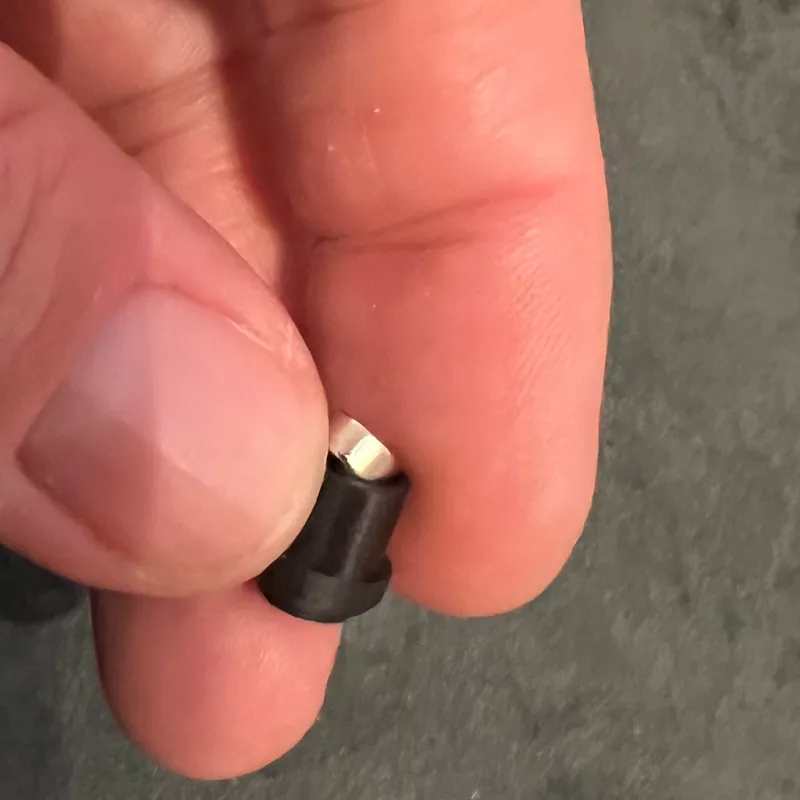

Step 2: Press magnets Ø 6mm x 3mm into the magnet caps (must be done 2 times but with magnets in different direction)

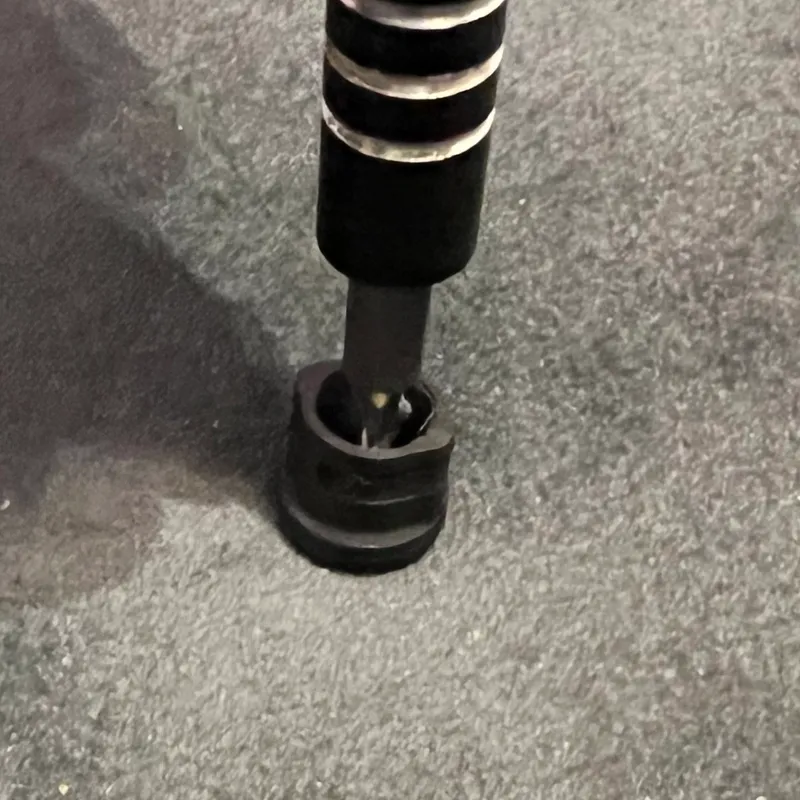

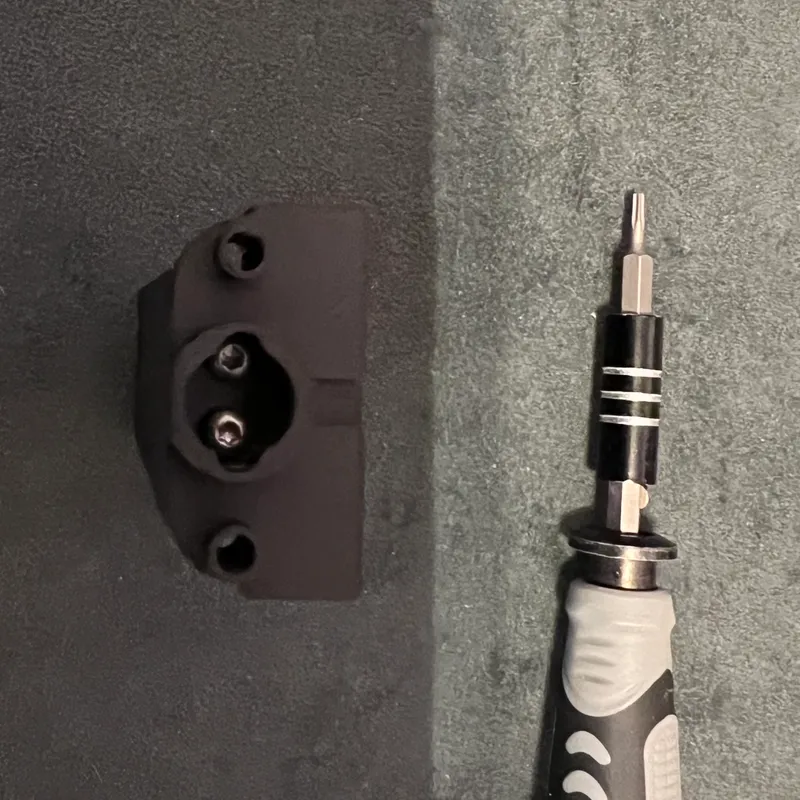

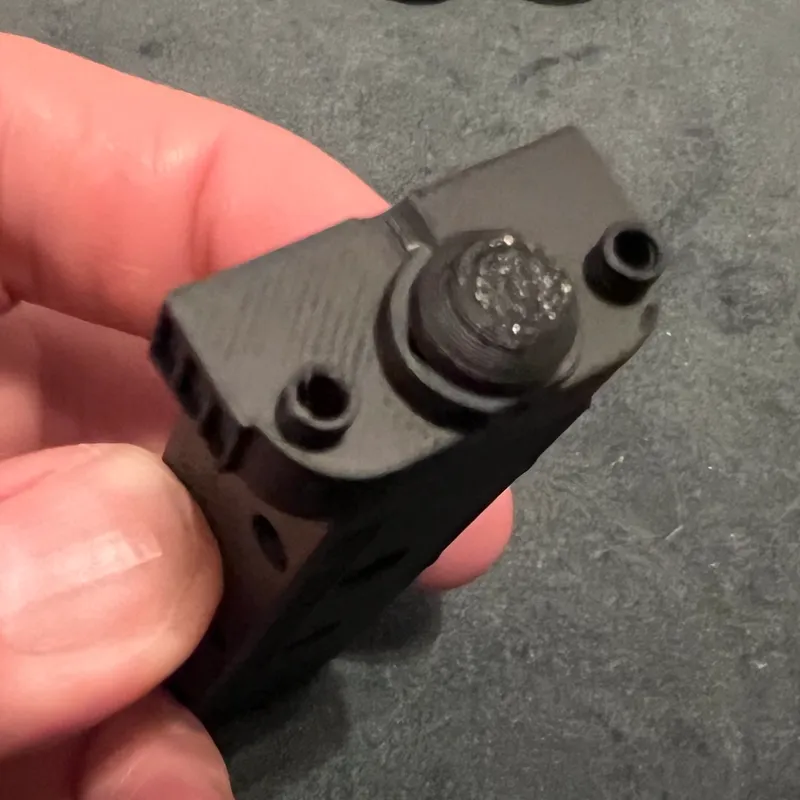

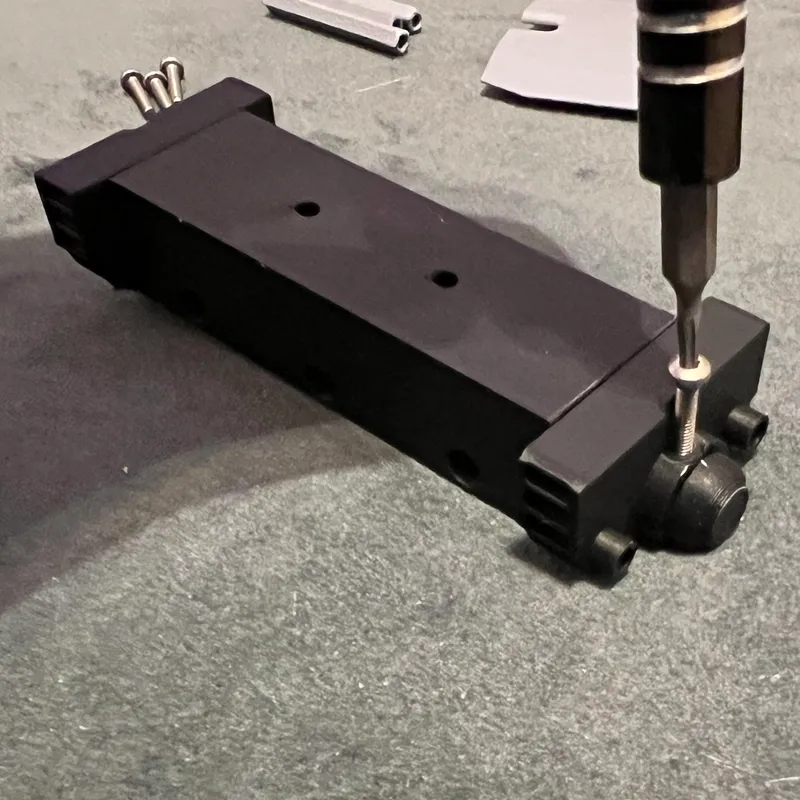

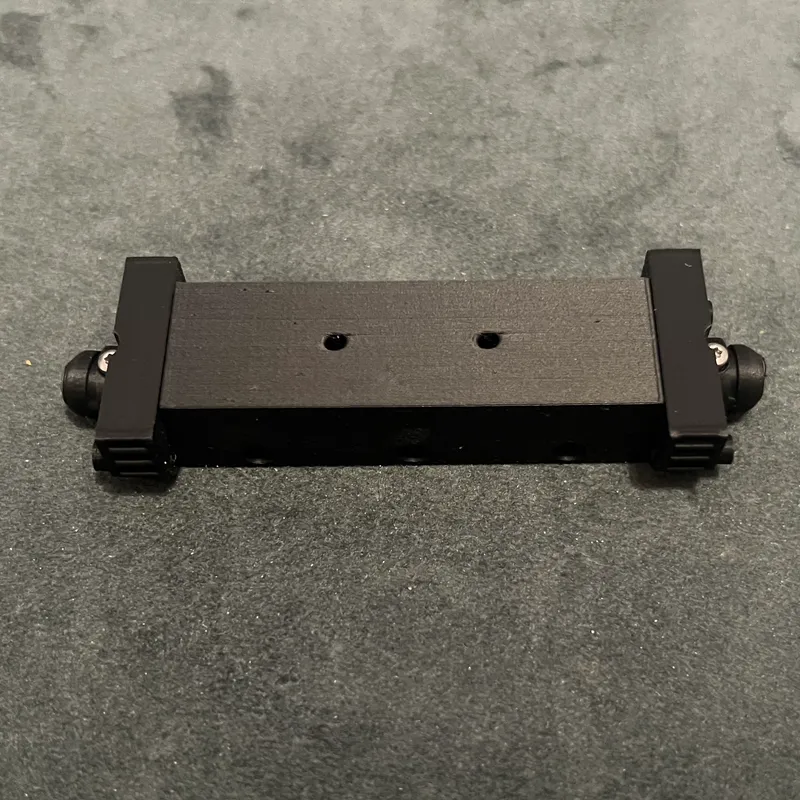

Step 3: Screw magnet caps at the front with M2 x 10mm screws (must be done 2 times)

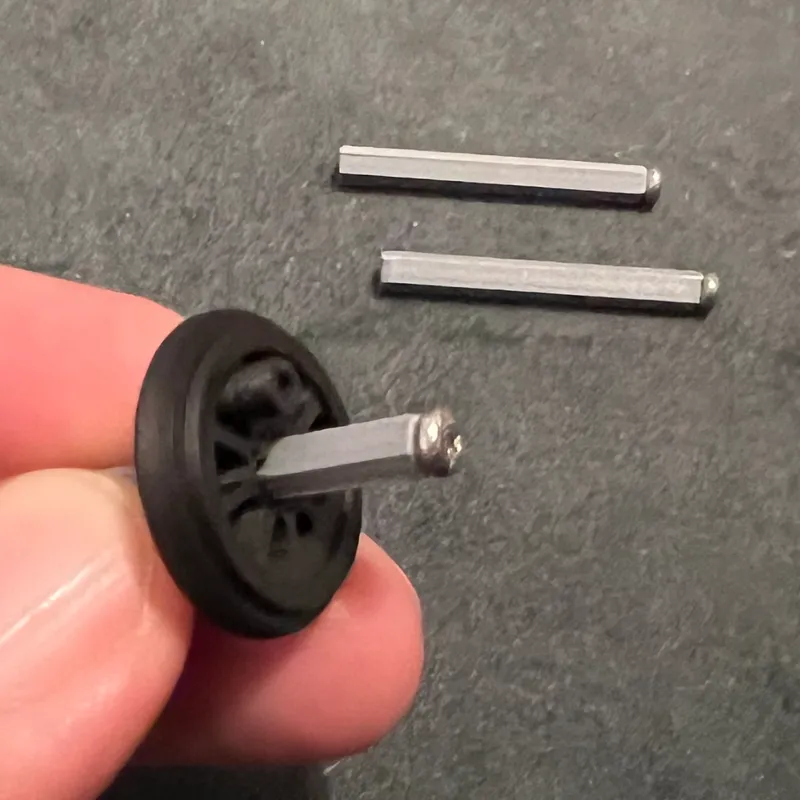

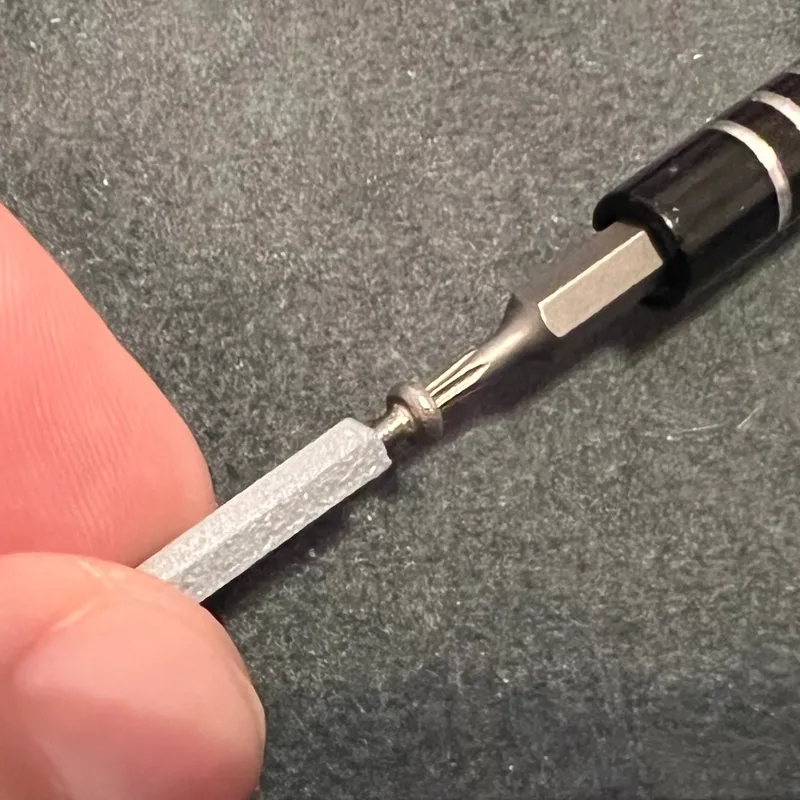

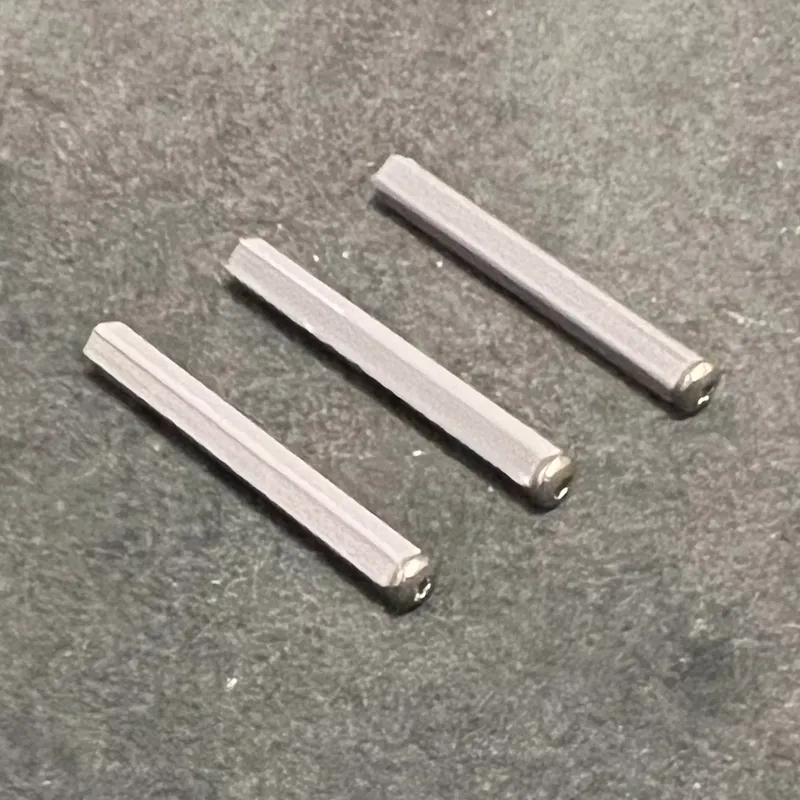

Step 4: Screw one side of all three rods with M2 x 4mm screw (must be done 3 times)

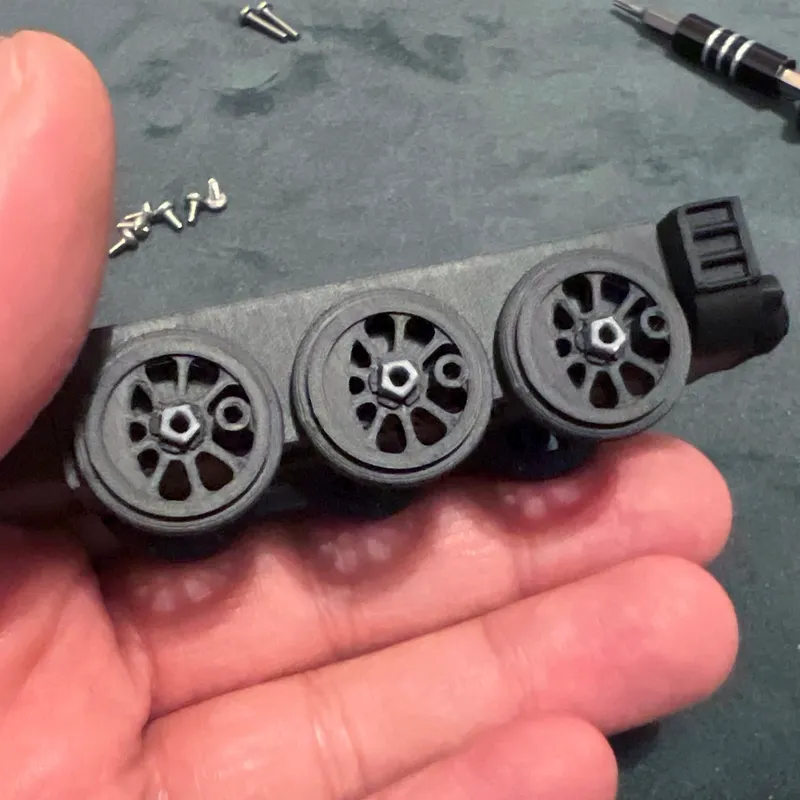

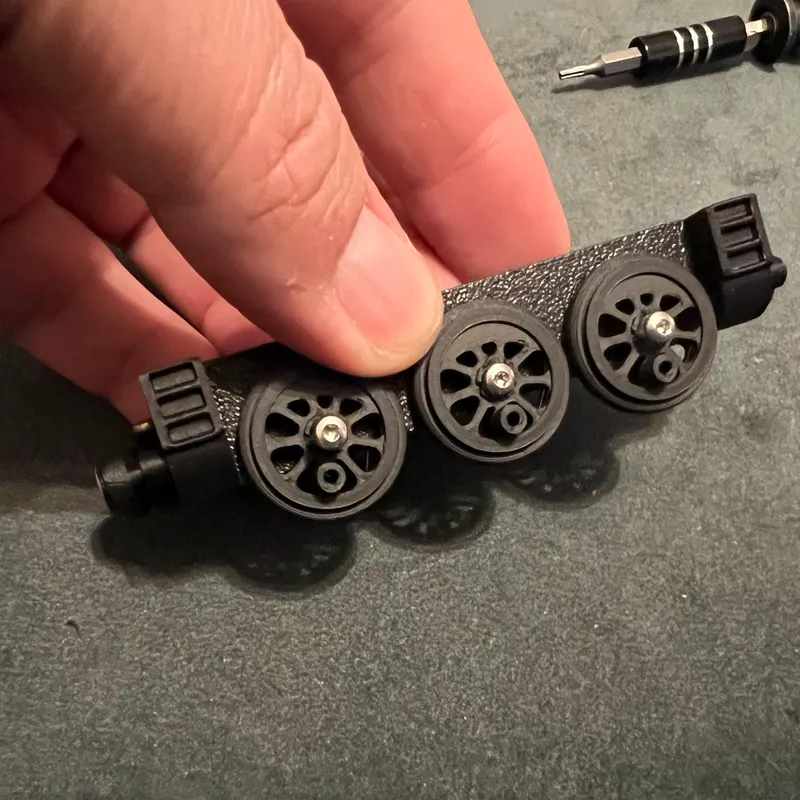

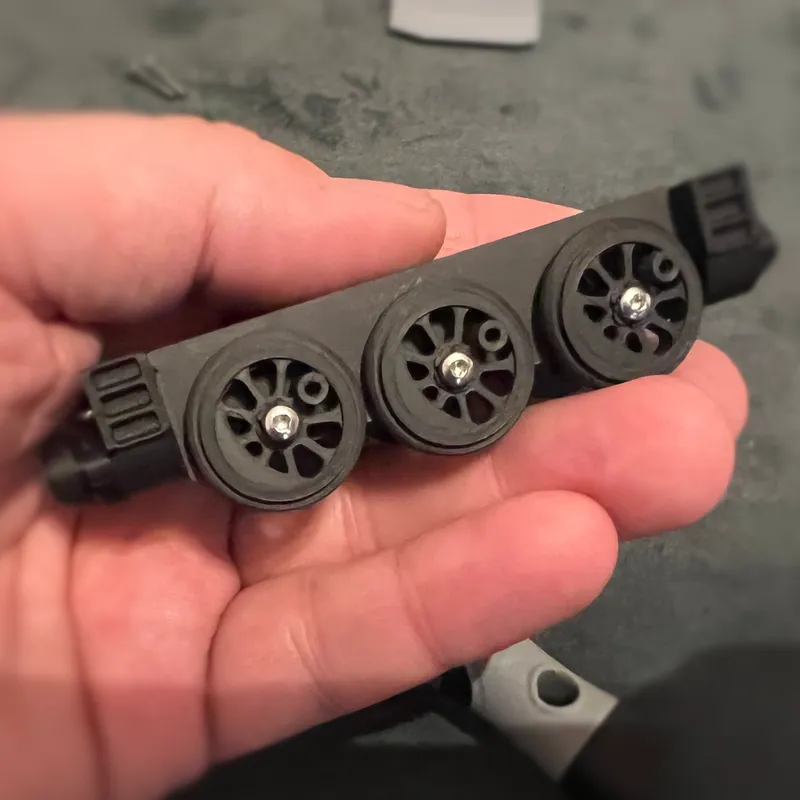

Step 5: Add wheels to the rods and install it at the base

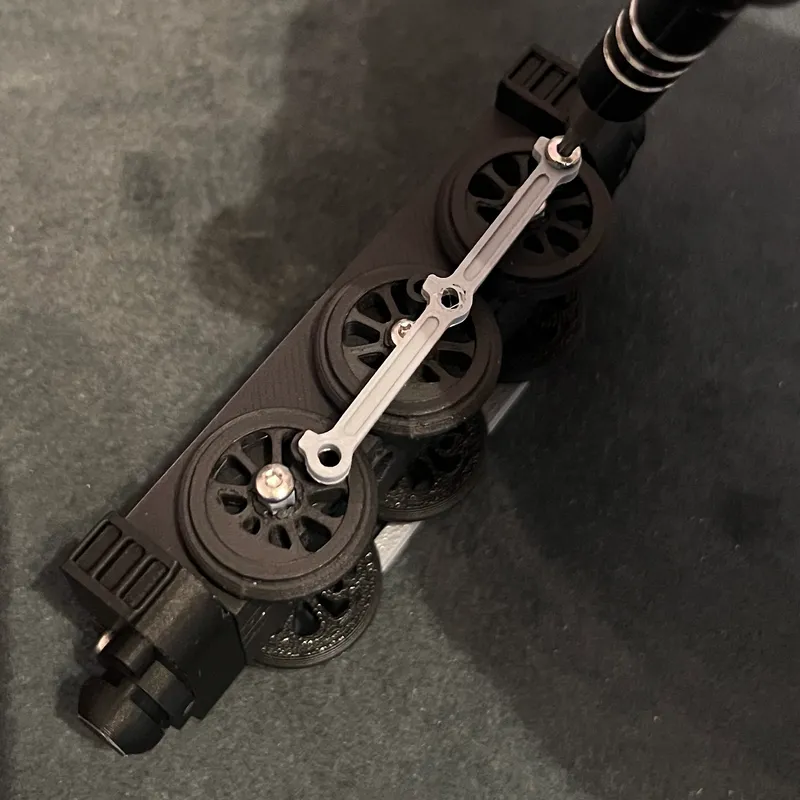

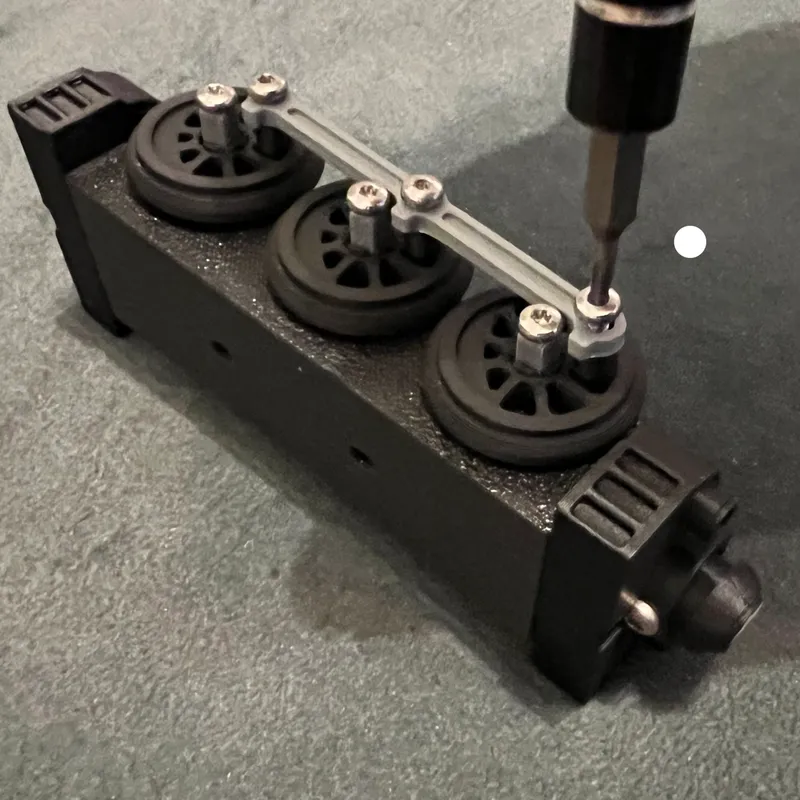

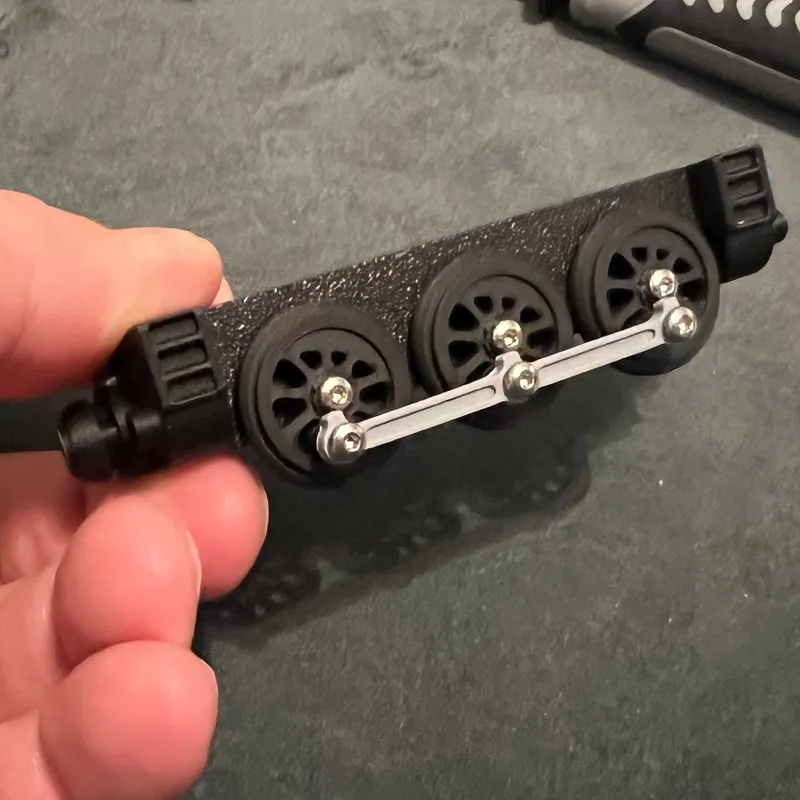

Step 6: Install connection rod with 3x M2 x 4mm screws

Step 7: Install wheels with around 90° offset to the other side and fix it with 3x M2 x 4mm

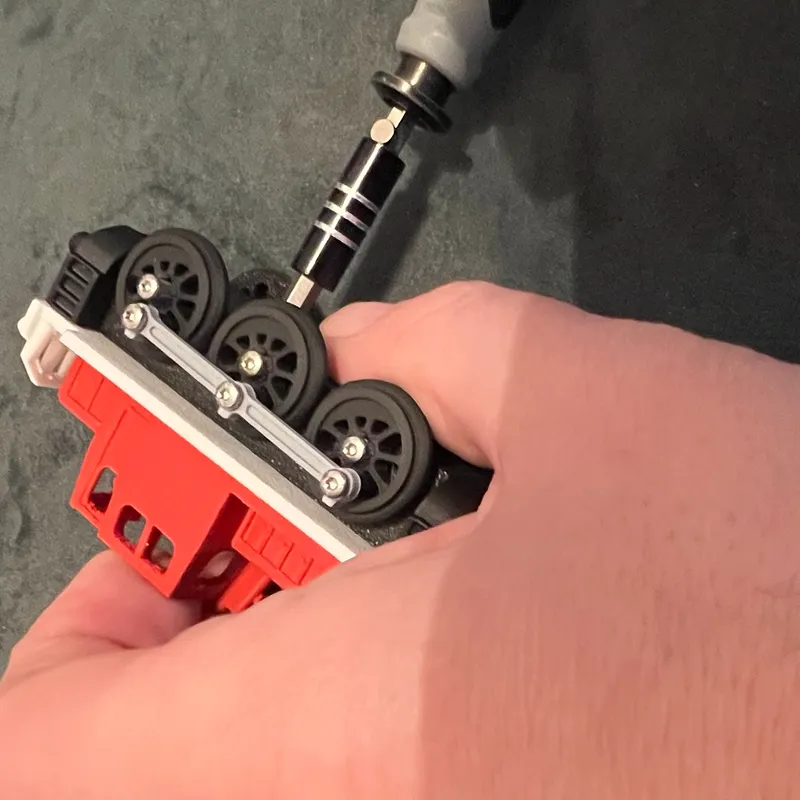

Step 8: Install connection rod with 3x M2 x 4mm screws

Step 9: Screw base with the running board and the body together with the base with 2x M2 x 10mm screws

Step 10: Press the roof on top

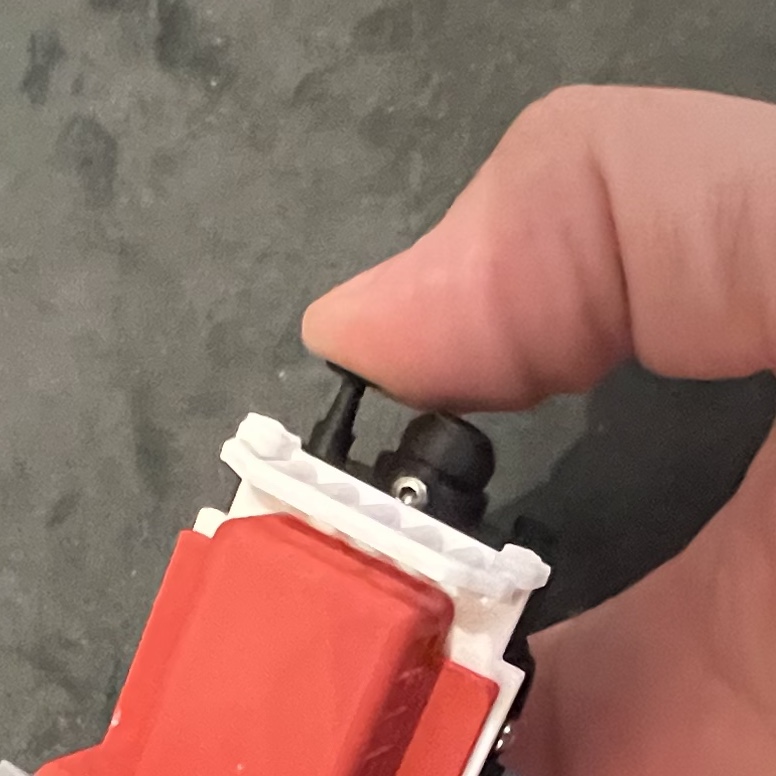

Step 11: Press the bumpers into the front parts

Done!
