Customizable bike wall mount

A clamp to mount a bike to the wall.

I uploaded a few common sizes, but you should check if it will fit your bike.

I've included the Fusion 360 file, so you can make a custom size to fit your bike.

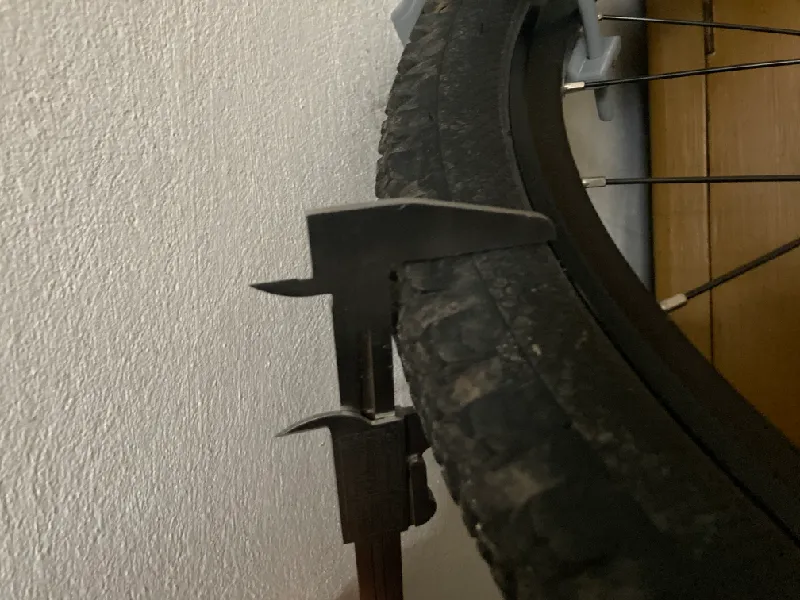

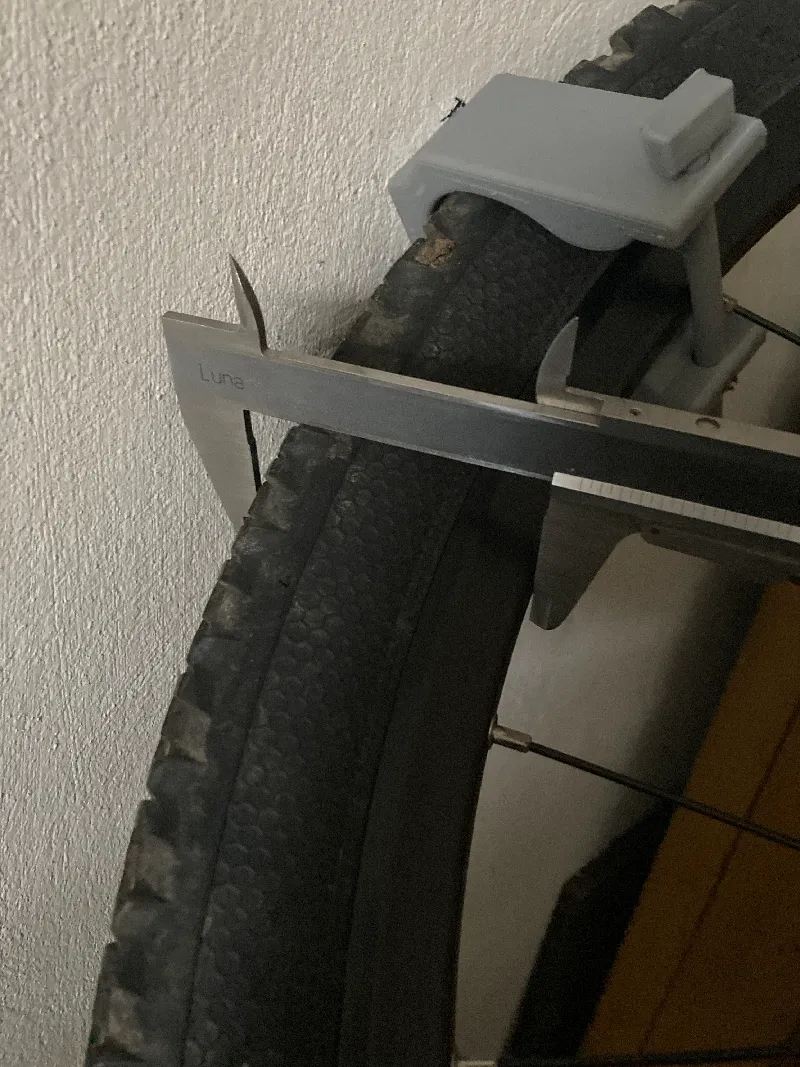

You should measure the thickness (or width) of your tire, and the overall height, including the tire and the rim.

To modify the values:

1. Open the file in Fusion 360
2. Click on Modify on the top bar
3. Click on Change Parameters
4. You can set the required parameters there

I recommend printing in PETG, as the model is designed to flex.

Depending on your printer, you might need to sand the safety pin a bit, to make it round, or use a drill to tidy up the holes on the clamp, but this should not be necessary.

Use two screws to mount it to the wall.

Recommended print settings:

• As imported
• No supports
• 3-4 walls
• 0.2-0.28 mm layer height
• PETG is recommended, as this needs to flex
• 25% infill
