Voron 2.4 Bed Wago Mount for LDO PCB Splicer (3 and 4 Wago)
LDO's solution for bed wago mod that uses a splicer PCB. Remixed to add 2 more wagos for thermal fuse bridge and earth.
16
81
0
496
updated
March 4, 2025
Description
PDFUpdate (3/3/25): Added a 3 wago version due to a request. For those that have heaters with the fuse already integrated and only need 3 wagos for L/N/E.

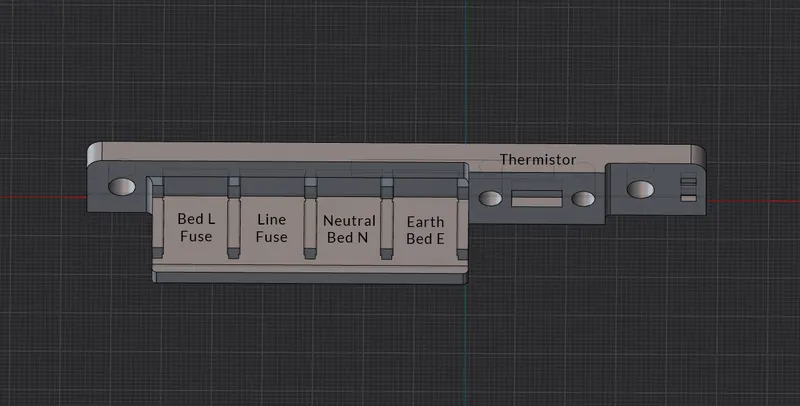

Was looking for a bed wago mod to make removing the bed easier during maintenance and liked the way LDO's solution looked compared to others. Remixed to add two more wago mounting locations for bridging the live with the thermal fuse and earth.
Link to purchase LDO splicer PCB: https://www.fabreeko.com/products/3x2-xh-splicer-pcb?_pos=1&_sid=ecdb5d0b6&_ss=r
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
Extended length and added two more wago mounting locations to install on non-LDO kit Voron 2.4s.
