20x4 LCD housing + Encoder (for 3D printer control)

Simple housing for a 20x4 text LCD module + push-encoder, buzzer and button. (No SD card!)

Utilizes a 60mm x 40mm prototype PCB board instead of a pre-made PCB.

You need:

• 2004A LCD module
• 60mm x 40mm protoboard ("perfboard")
• Encoder with push button (vertical, 5 contacts)
• The buzzer (up to 10mm tall)
• NPN transistsor to drive the buzzer
• 2K potentiometer for contrast control
• Push button/switch (8mm tall, or modify the OpenSCAD file)
• A bong
• Four M3x10 screws with round heads

Build notes:

• It's easy to edit the OpenSCAD file if you're using a different button or want a custom text on the plate.

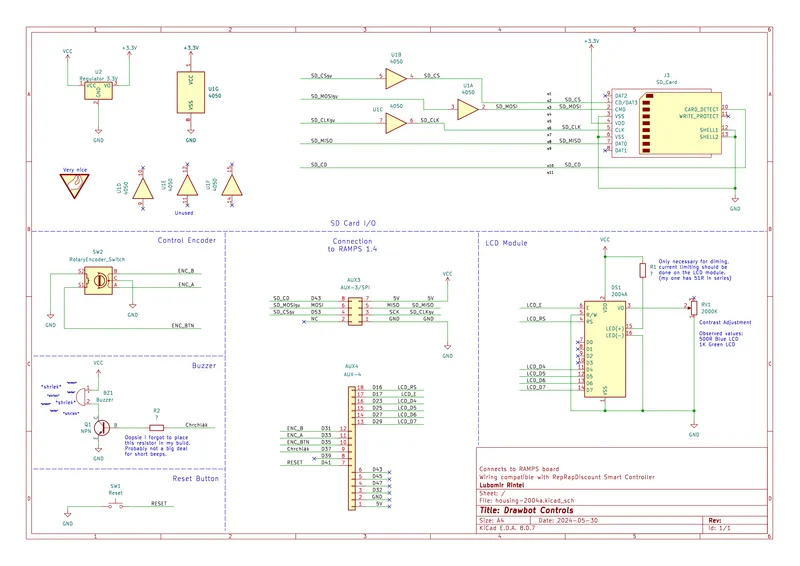

• Read wiring schematic in housing-2004a.pdf first
• Consult pictures for component placement
