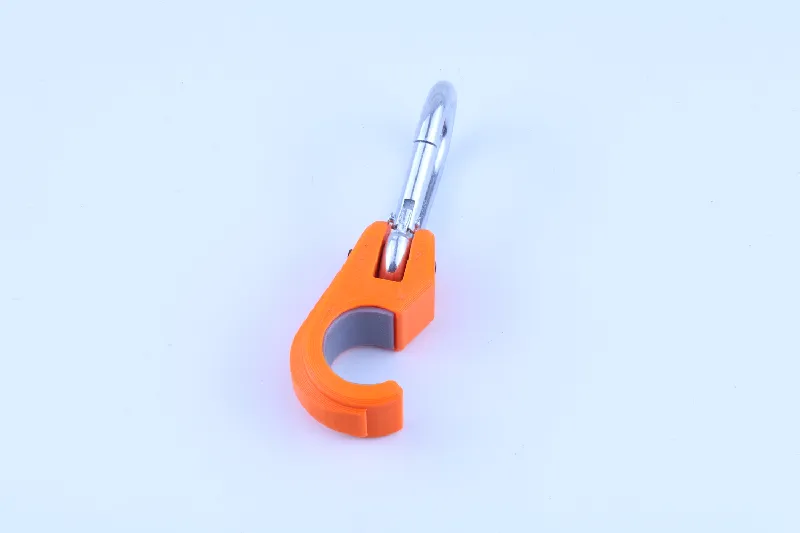

-Non-slipping 16mm clamps with TPU inlay
-Rotatable in three dimensions for perfect fan positioning

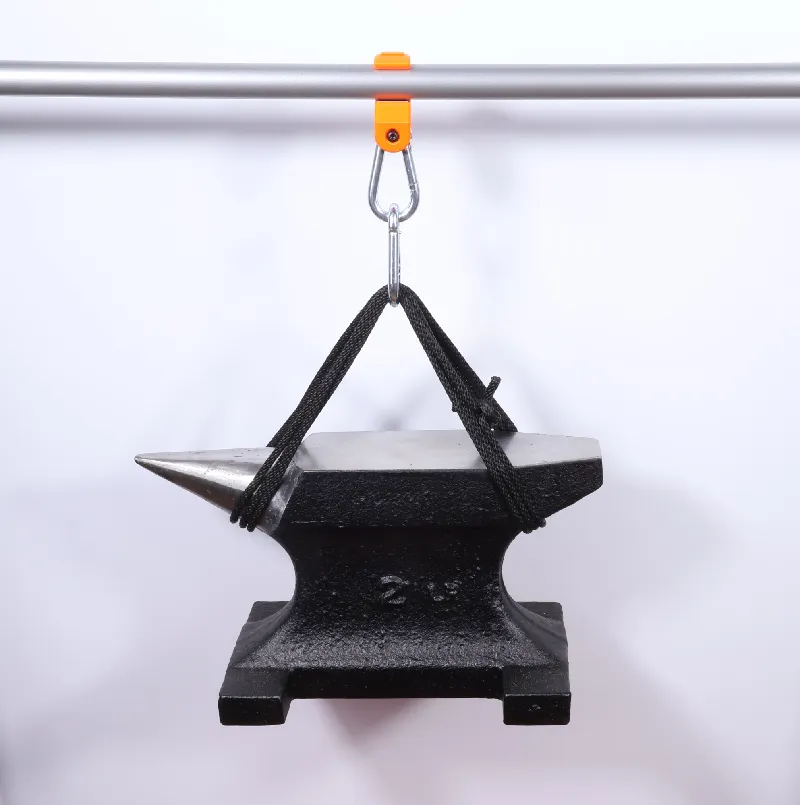

-Ultra-durable, clips & angle. Stress-tested 1h@5kg@PETG (see Picture)
-Fits for 120&140mm fans
-Easy to attach
-Upgradeable concept, follow me for further updates…
print PLA/PETG parts with: perimeter x4 and 30%grid
Printed parts PETG or PLA, TPU
2x Melt-insert M4x6mm
1x Hexagon screw M4x40mm
1x Hexagon screw M4x20mm
2x Screw M3x12
2x Nut M3
Melt nuts & pull in screws
Assemble the baseplate
-Note the clips orientation, one is turned around
-TPU inlay toplayer has a bevel, put this to the clips' top layer side
Assemble rotary head
Add a fan (120/140mm)
-TPU-dia is not really needed but you can put it between the gap
-Use TPU_dia.step to extrude a spacer for fans which are thinner than the standard ones.
I hope you will enjoy it & stay green !
