Gridfinity Hardware Storage System - BETA
Here are some drawers for the 5x4 Gridfinity Storage Box by Pred, and a custom box remix that compliments them.
3,922
5729
5
78 k
updated
March 3, 2025
Makes
Comments
1st time maker of anything gridfinity here! What size is the grid unit size? Thanks, love the designs!
I'll be making this, but making the shelf portion out of wood. Crazy print hours otherwise.
@TailorGlad_2398390 Love the transparent lid idea. Nice work! I'm having trouble locating the larger label seen in the pictures here on your boxes (BREADBOARD, MOTORS, etc). I printed the original label from the predbox but it's just a little wider and taller and doesn't fit. What did you use here? (edited)
where the labels at
@Yoshi_3546988 GFLabel now supports these boxes. https://github.com/ndevenish/gflabel (edited)
View one more comment

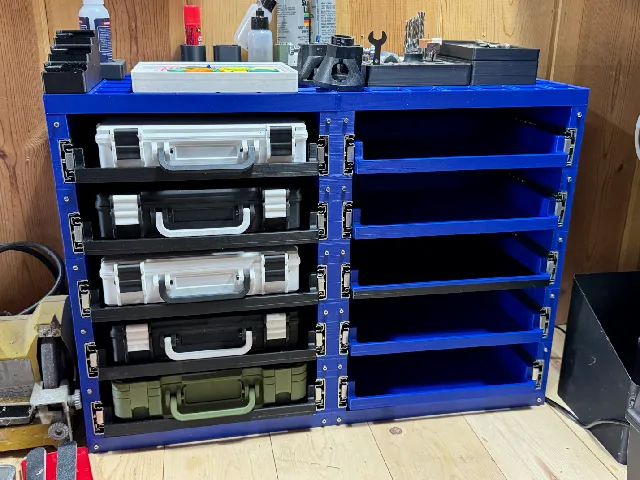

Love this shelf system! Great bit of engineering from @TailorGlad_2398390.
Have not printed the boxes yet. My old ones fit great!
This build had me at "Something something brittle, something something material properties". I'm getting started on a print now!
Super project! Exactly what I was looking for in my small workshop where organization is always a challenge. I really like your approach to the boxes — do you plan to design other sizes, or maybe share a parametric F3D file?
I've not made any of the Pred cases, but this is a nice design. I noticed that your remix has dropped the handle in favor of a larger label, and looking at the design, I think you may be able to get both. There looks to be enough room in the case front that a handle could borrow some space from the innermost latch guards. Such a handle could use an M3 screw for the axle and it would not necessarily require support on both sides (so the screws could thread into the handle, which would pin it to the innermost latch guards.
I can't work with the fusion files, but if you have STEP models for the base of the case, I could mock something up and send it to you. I don't plan right now to take on this project to make an organizer, but I like the idea!
