SV08 Klicky Corner Dock

Feb 3, 2025 - Added Note

• As of February 2025  I have not had issues when running with this mount.

________________________________________________________________________________________________________________

After upgrading my SV08 to Klicky.  I found that I desired the dock to be more out of the way.

Thus, I give you the Corner Klicky Dock!

First and foremost.  Here is the dock in action.

https://youtube.com/shorts/wZHWjg75tZo?feature=share

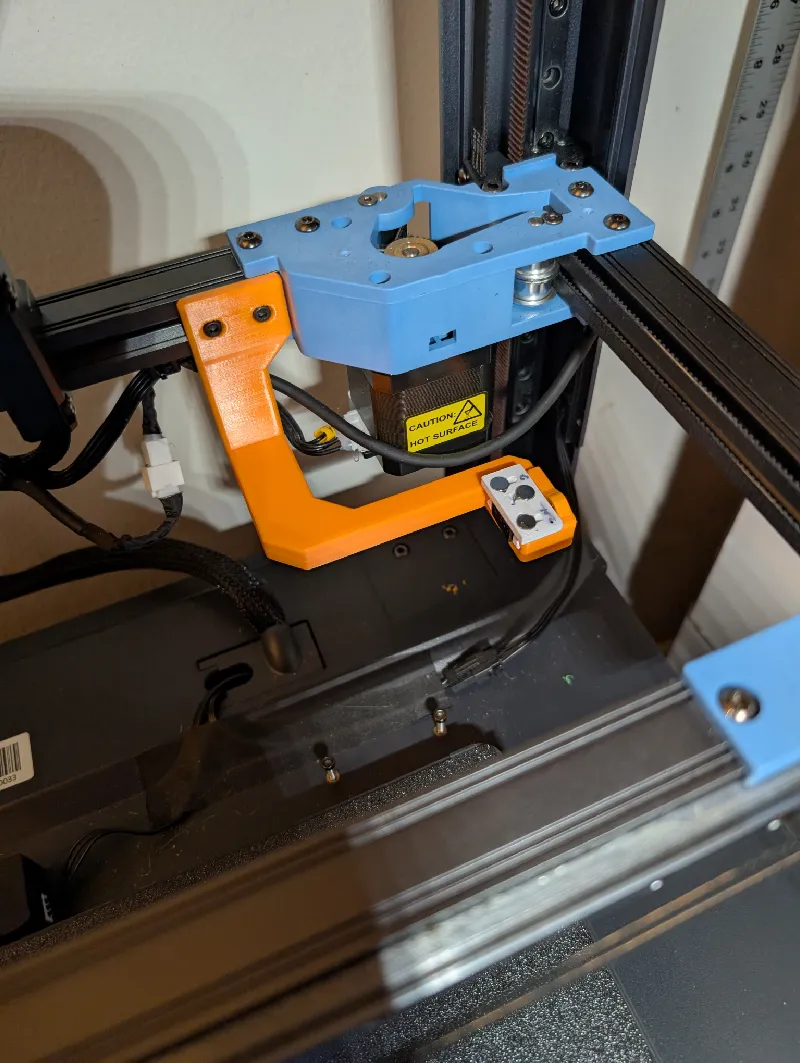

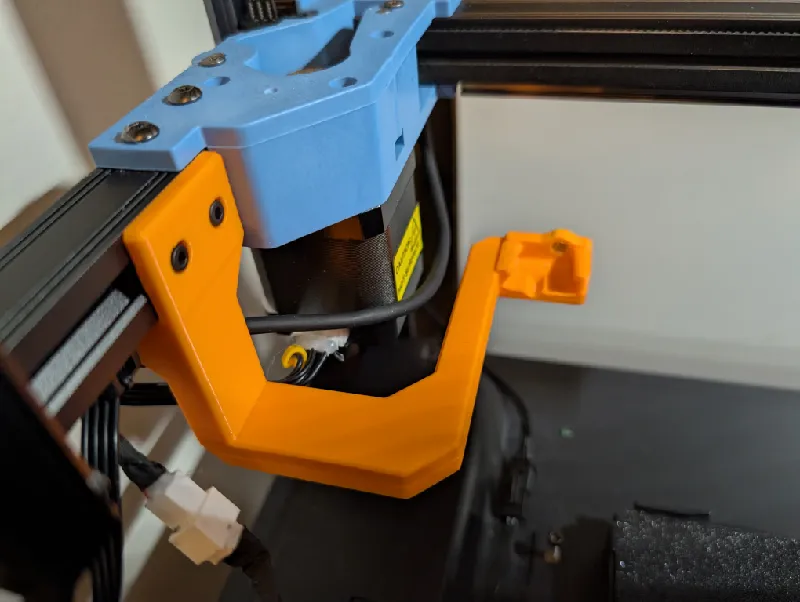

As you will see in the following photos.  It is intended to be installed with M3 T-nuts for 2020 extrusions.  The model was made so the positioning would be all the way to the right of the available space in the back of the gantry.

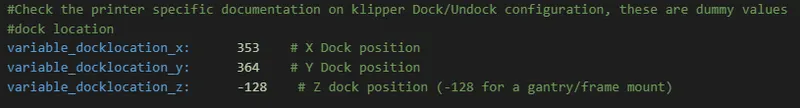

It is also my hope that this will make the dock position static in stead of different for many people.  Here is my dock position data from the klicky-variables.cfg.

My setting for this print were as follows:

Slicer: Orca

Layer height: 0.2

Wall loops: 3 - Alternate extra wall

Infill: Gyroid at 15%

Supports: Normal Snug - just to support the holes

Should you experience any issues.  Please feel free to let me know so I can work on fixing them.

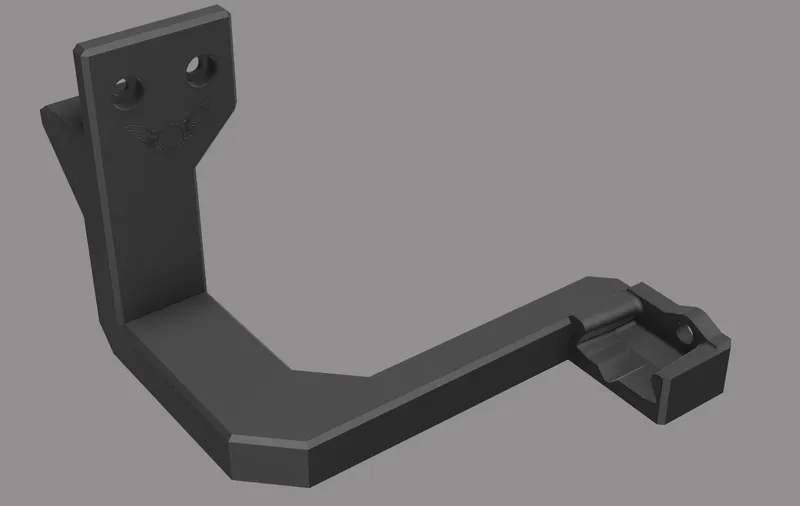

Using the ideas and models from Nadir's Klicky probe and dock, as well as base model and ideas from jlas1's Gethub.  I created a semi-original Klicky dock to be moved off to the side more.
