Prusa XL Series: Bottom XL Drawer

A combination and Remix of different very good solutions, to make another solution for the Prusa XL. There are different Solutions for Tools and Nozzles, but most of them dont keep them stored nicely away.
My Remix combination change this. The Drawer can be printed on the XL in one Piece.
On the inside it is equipped with Gridfinity system

The left mount is adjustable to be able to adapt the distance to the Drawer, so it can slide freely.

Because ob a strange bug, i could link the Handle as a Remix. @BaGooN
You can find the fantastic Originals under this link:

https://www.printables.com/model/423500-hex-pattern-handle-collection

As for Hardware parts you  will nee the following:

For the 4 printed Feet you will need:

4x m4x15mm screw
4x m4 Slot in nuts for the Aluminum extrusions

For the rest:
10x m4 heat inserts for the Carrier
8x m4x15mm Screws for the Carrier to be mounted to the extrusions
8x m4 Slot in nuts for the Carrier to be mounted to the extrusions
10x m4x10mm Screws to mount the drawer slide to the Carrier

2x m3x8mm Screw for the Handle
2x m3 Short heat inserts (~4mm)

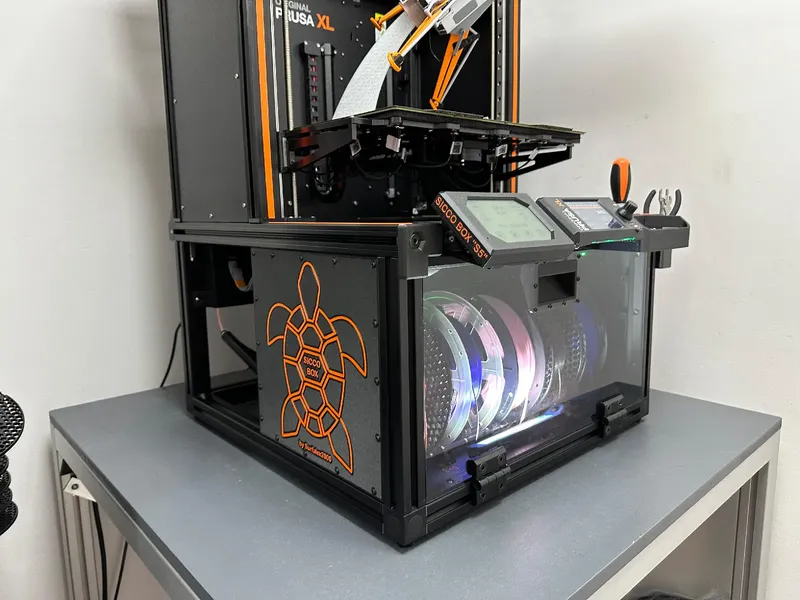

This mount is also compatible with my SICCO BOX
In that case please use the Adapter plates, instead of the regular mounts.( Thanks @ kleiner Alois )


Tip me on KO-FI by klicking here:

                                                      https://ko-fi.com/surfalex2000

Check out my other optimized XL Parts! There is a Series to come!

You can find them in my Collection:
https://www.printables.com/@Surfalex2000/collections/830114


Gridfinity - Made a bigger Grid

Handle - Made it longer

Drawer - Adapter mount, made longer and more sturdy
