Another Neptune Pro bouden tube guide
A side bouden tube guide model that does not affect the printer frame.
2
3
0
33
updated January 11, 2025
Description
PDFThis model is for a standard 4mm diameter bowden tube. If the tube does not fit into the hole, you need to refine the hole with a 4 mm diameter drill. Use M4 20 mm hex bolts and t-nuts.

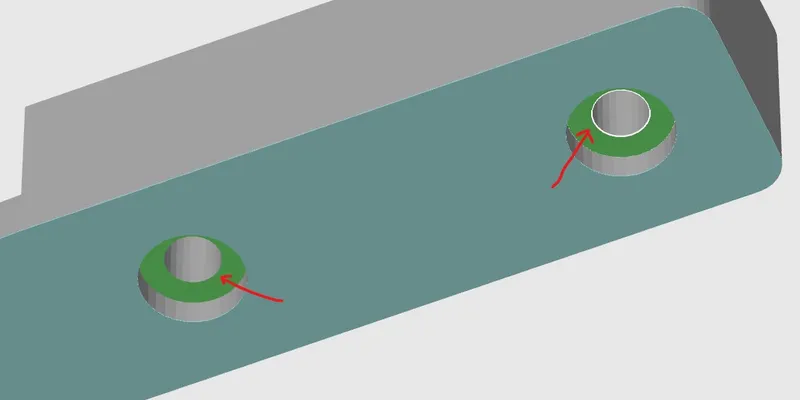

Add manual supports under the bolt caps using bucket filling tool.
Model origin
The author remixed this model.
Differences of the remix compared to the original
I redesigned the model to mount it on the crossbar using t-nuts
